• Model NO.：4YZ-4
• Color：Red
• Condition：New
• Application Field：Agriculture
• After-Sales Service Provided：Engineers Available to Service Machinery Overseas
• Function：Picking, Cutting, Peeling, Crushing
• Power：140HP

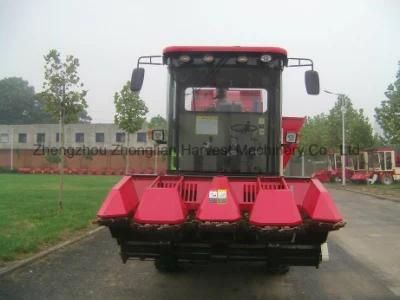

• Structural Style：Self-Propelled Full-Feed Combine Harvester
• Transport Package：Container
• Specification：6010*2590*3320 mm
• Trademark：CHMC
• Origin：Henan, China
• HS Code：8433510090
• Production Capacity：500 Pieces,Month

ModelType No.4YZ-4Structural style full feed self-propelled wheel typeFunctionpick, peel, cut and shatter the straw, return shattered
straw to fieldSize ( L, W, H )6010*2590*3320 mmWeight5010 kgGear box typemechanical (3+1) x 2Cutting width2400 mmStraw cutting width2000 mmMaximum unloading height1870 mmGrain unloading wayhydraumatic side dumpingGrain tank capacity2.22 m³Harvest rows4 rows Rows distance500-700 mmCutter typecutter head with regardless of the rowNumber of snapping rolls4 sets/8 pcsSnapping roll typefour edges, auger-typeCutting knife number4 units, 1 fixed knife and 3 moving knives
for each unitCutting knife size430 mmStraw crushing and returning machine1JHY-200Cutter shapehorizontal rotary cutting deviceMinimum ground clearance 280 mmHarvest moisture required20%-30%(corn seed), ≤60%(corn straw)Transverse and longitudinal slope required≤8° Corn ear height  ≥450 mmPeeling roll number4 sets/16 pcsPeeling roll typetrough type, rubber roller + iron rollerEngine BodelYC4A140Z-T21 ManufacturerYUCHAIPower140HP/103 KWSpeed2200 r/minOil tank154 LOil typediesel Oil consumption≤20 kg/hectare PerformanceWork efficiency 0.33 - 0.66 hectare/hourWorking speed 3.22-6.4 km/hourDriving speed1st gear3.22 km/hour2nd gear4.72 km/hour3rd gear6.4 km/hour4th gear11.5 km/hour5th gear16.9 km/hour6th gear23 km/hourreverse gear5.58 km/hourTotal loss rate≤4 %Seed damage rate≤1 %Peeling rate≥85 %Straw crushing rate≥85 %Impurity rate≤1.5 %Stubble height≤50 mm WheelType of drive2 wheels driveWheel distanceguide 1435 mmdrive 1644 mmTyre size guide  10 - 15drive 11.2 - 24Min.radius of curveleft turn6500 mmright turn6800 mmTransportation
and Package /1 sets in a 40'HC ( dis-assembled )

Product Features:)
* Sealed driver cabin, comfortable for driver, good horizon.

* Special cutter table, auger-type picking roller, forcelly and quickly to pull the corn stick into cutter table, not
intertwine, not blocking.

* Adopt straw crushing and returning machine, can crush the corn straw completely and reduce the stubble height.

* Special design in peeing device, adopt soft peeling way, 4 sets peeling device, 16 pieces rollers, half metal
rollers and half rubber rollers, this design makes peeling more clean, reduces seed damage rate and seed lose rate.

* Flexible harvesting ways, suitable for different row space and different planting structure,can harvest not in rows.

* Assembling shake sieve and seed recycling bins, can collect the fallen corn seed, reduce loss rate.

* Short machine body, short front-back wheel distance, small turning radius, easy to turn around in field.

* Adopt hydraumatic side dumping device, convenient for operating corn unloading.
