• Model NO.：U25L-4
• Material：Aviation Carbon Fiber and Aviation Aluminum
• Type：Sprayer Drone
• Sprayer Type：Pump
• Usage：Agriculture
• Applicable Industry：Farms, Home Use, Epidemic Prevention
• Feature：Anti-Fall
• Production Material：Aviation Carbon Fiber and Aviation Aluminum
• Production Folding Size：1220mm*1220mm*600mm
• Max Pesticide Load：25kg
• Aircraft Medicine Box Capacity：25L
• Flight Radius：Less Than 5000m
• Max Takeoff Weight：51kg
• Aircraft Weight：16.6kg
• Flight Attitude：Less Than 30m
• Flight Duration：20-25minutes
• Condition：New
• Warranty Time：12 Months
• Transport Package：Professional Package Box
• Specification：1 CBM
• Trademark：UNID
• Origin：China
• HS Code：8802200090
• Production Capacity：10000 Unit

Basic Info.

Model NO. U25L-4 Material Aviation Carbon Fiber and Aviation Aluminum Type Sprayer Drone Sprayer Type Pump Usage Agriculture Applicable Industry Farms, Home Use, Epidemic Prevention Feature Anti-Fall Production Material Aviation Carbon Fiber and Aviation Aluminum Production Folding Size 1220mm*1220mm*600mm Max Pesticide Load 25kg Aircraft Medicine Box Capacity 25L Flight Radius Less Than 5000m Max Takeoff Weight 51kg Aircraft Weight 16.6kg Flight Attitude Less Than 30m Flight Duration 20-25minutes Condition New Warranty Time 12 Months Transport Package Professional Package Box Specification 1 CBM Trademark UNID Origin China HS Code 8802200090 Production Capacity 10000 Unit

Product Description

25L drone spraying farm/agriculture drone for spraying trees

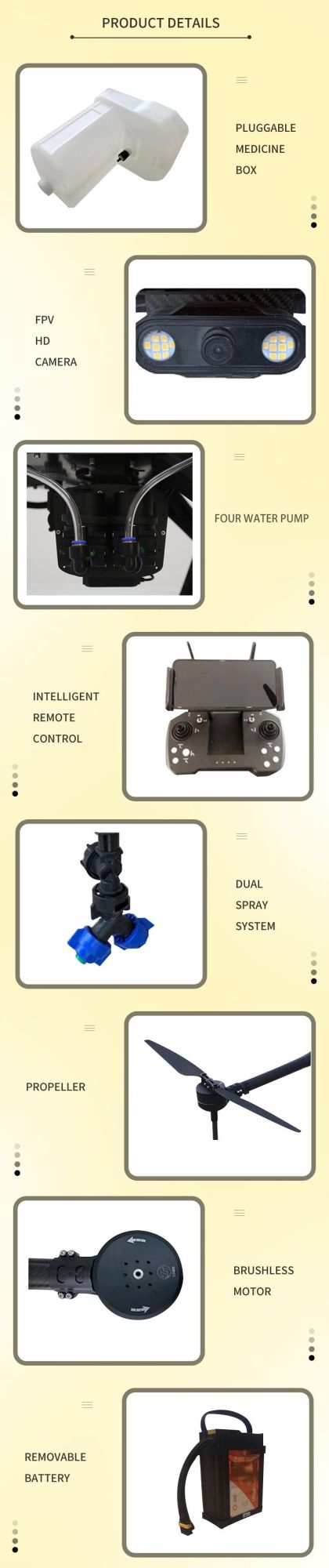

- OEM  & ODM Service -              Our products and services are all over the world, and we are committed to promoting the development of global agricultural automation.At present, more and more countries and regions begin to contact and use our agriculture drone(uav)for spraying and sowing operations.While improving the work efficiency, it greatly reduces the cost of agricultural operations and reduces the working time.We will solve problems for you with our mature technical support and products and services.- Features -1.The fuselage adopts a closed design, which can prevent pesticides from entering the flight control system and provide safety guarantee for long-term operation.
2.Modular design of functional components, easy maintenance and upgrade.
3.Using intelligent plug-in battery
4.Use quick-plug medicine barrel
5.The arm can be quickly disassembled.
6.7075 aviation aluminum (high grade) is used for the folding part.
7.Wear the case, optimize the whole machine, and hide the medicine circuit.
8.High-pressure brushless water pump is adopted, and the ESC is fully waterproof.
9.The plant protection machine has built-in GPS and compass module, with fixed-height and fixed-point flight function, which can well maintain the spray height and spray route accuracy of the operation.
10.The height limit and flight speed limit of spraying operation can be set. The high-pressure spraying system has good automization effect. Under the wind pressure of the aircraft, the drug mist has the characteristics of strong penetration.
11.Alternating spraying function, the spray head can be switched independently. - Product Parameter -

Model	U25L-4
Product material	Aviation carbon fiber + aviation aluminum
Product expansion size	2150mm*2100mm*620mm
Product folding size	840mm*480mm*620mm
Maximum takeoff weight	52KG
Aircraft weight	19KG
Aircraft medicine box capacity	25L
Flight altitude	≤20 meters
Fly time(unloaded)	15~25 minutes
Fly time(loaded)	5~13 minutes when fully loaded
Flight speed	≤15 m / sec
Structrue life span	≥10 years
Spray  width	4-8 meters
Hovering in the air	Hovering in any direction
Spray flow	3-10L/min double pump adjustable
Spray system	Imported high pressure anti-floating atomizing nozzle
Atomization point size	60~90μm
Fly control	Industrial Version GPS and Controller
Spray efficiency	≥10 hectares/hour
Motor speed	5000 rpm
Safe takeoff and landing wind speed	≤5
Power system	58.8V power polymer computer battery
Charger	AC Input100-240V
Lithium-polymer battery	14S  19000mAh*1
