• Model NO.：ZY
• Press Materials：Oil Palm Fruit
• Condition：New
• Customized：Non-Customized
• Model：Zy3
• Capacity(Kg/H)：3.5
• Electric Source：380V
• Max.Pressure(MPa)：50
• Motor Power(Kw)：2.2
• Overall Dimension (L *W *H)(mm)：950*850*1250
• Weight(Tons)：3.5
• Transport Package：in Wooden Case
• Specification：EEC, SGS, OECD
• Trademark：FOTMA
• Origin：China
• HS Code：5911400000
• Production Capacity：2000 Sets,Year

Basic Info.

Model NO. ZY Press Materials Oil Palm Fruit Condition New Customized Non-Customized Model Zy3 Capacity(Kg/H) 3.5 Electric Source 380V Max.Pressure(MPa) 50 Motor Power(Kw) 2.2 Overall Dimension (L *W *H)(mm) 950*850*1250 Weight(Tons) 3.5 Transport Package in Wooden Case Specification EEC, SGS, OECD Trademark FOTMA Origin China HS Code 5911400000 Production Capacity 2000 Sets/Year

Product Description

FOTMA is leading supplier for grain and oil processing equipment in China and our products won several national patents and was official certified, the technical of oil press is continuous updating and the quality is reliable. Through years of scientific research and production practice, we have accumulated sufficient rice professional knowledge and practical experience. Our auto hydraulic oil press equipments are widely exporting to different countries like Nigeria, Myanmar, Guyana and other countries in Asia, South America, Africa, etc..

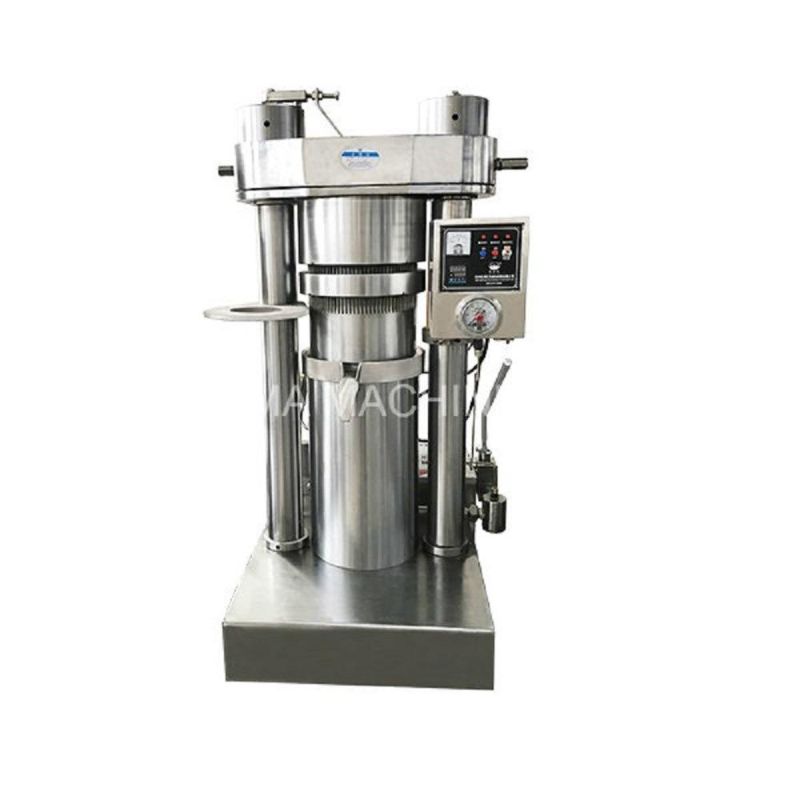

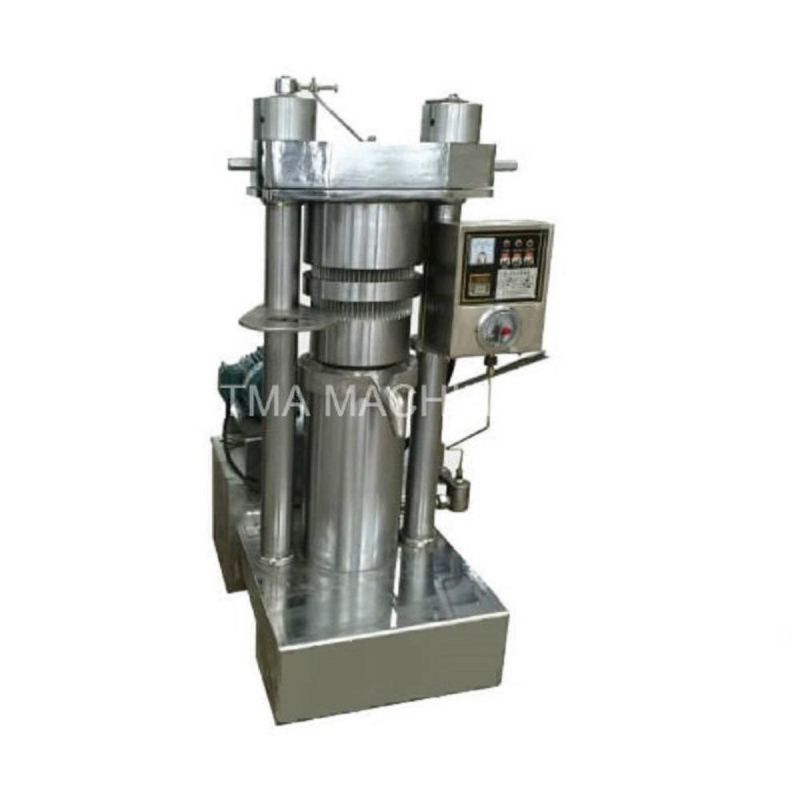

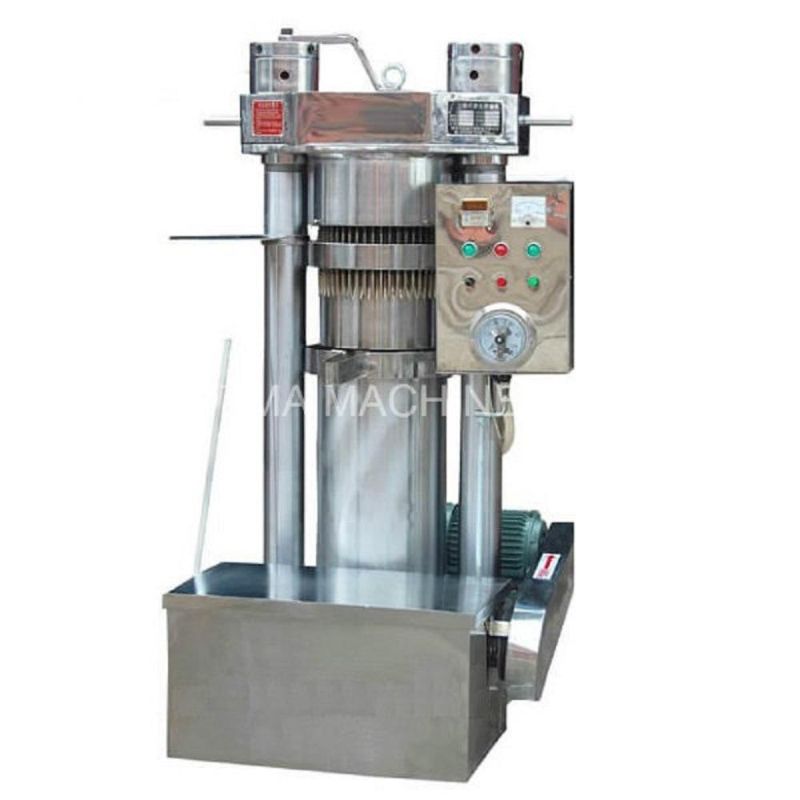

ZY Series Auto Hydraulic Oil Press Equipment

FOTMA focus on producing oil press machines and our products won several national patents and was official certified, the technical of oil press is continuous updating and the quality is reliable. With excellent production technology and high-quality after-sales service, the market share is steadily rising. Through gather tens of thousands of consumer's successful pressing experience and management model, we can provide you with customized business guidance program, installation and commissioning services, on-site training operations, impart pressing technology, one year warranty, life-long technical support.1.Technical characteristics: The latest supercharging technology, two-stage high pressure protection system.2.Product features: All pressure parts are heat treated, safe and durable3.Pressing range: Mainly pressed sesame, also pressed peanuts, walnuts, etc.
 1. Product description
ZY series hydraulic oil press machine adopt the newest turbocharging technology and two-stage booster safety protection system to ensure safe use, the hydraulic cylinder is made with high bearing force, the main components are all forged. It is used to press sesame mainly, can also press peanuts, walnuts and other high oil content materials.

2. Advantage1.Adopting the newest turbocharging technology and Two-stage booster safety protection system to ensure safe use.2.The hydraulic cylinder is made with high bearing force,  stable and reliable performance. 3.The main components are all forged to ensure that they will never be deformed under high pressure.4.The main pressing material is sesame, can also press peanuts, walnuts and other high oil content materials.5.Usually use 380 volts industrial electric voltage,  220 volts can also be used. 6.Provide installation and commissioning service, impart pressing technology, one-year warranty and lifetime maintenance.
3. Technical parameters

Model	ZY3	ZY7	ZY9	ZY11	ZY14	ZY16
Capacity	3.5kg/h	7kg/h	8.5-9kg/h	10.5-11kg/h	13.5-14kg/h	16kg/h
Electric Source	380V	380V	220V/380V	220V/380V	380V	380V
Max.pressure	50Mpa	55Mpa	60Mpa	60Mpa	60Mpa	60Mpa
Motor Power	2.2kw	2.2kw	1.2kw	1.5kw	1.5kw	1.5kw
Overall Dimension (L x W x H)	950x850x1250mm	1000x900x1680mm	1000x970x1420mm	1150x1000x1570mm	1150x1050x1570mm	1200*1150*1550mm
Weight	3.5t	0.8t	1.1t	1.4t	1.5t	1.6t

 4. Photos

5. Packing and Shipping:
(1) Packing: Usually in the wooden cases for main machines and carton boxes for small parts.

(2) Delivery:
Usually in 5-45 days after payment, it depends on the model and order quantity. For small packages, we can choose delivery by air(Normal air or courier: DHL, TNT, UPS, FedEx, etc.). For large machines, we can arrange to ship by water( LCL or FCL, bulk cargo or RO/RO), train or truck.

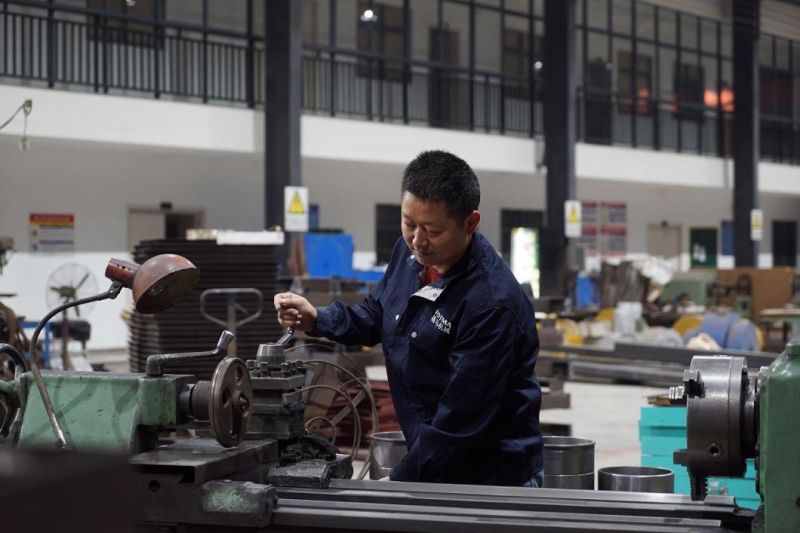

6.Our Factory

7. Certificates

8. Customer Visiting

9. Installation site:

10.Why choose FOTMA?1.For more than a decade, with its excellent production technology and high-quality after-sales service, it has always been recognized and loved by users.2.Obtained many official promotion appraisals and won many national patents. The technology is continuously updated, the products are mature and reliable, and the technology always leads. 3.High oil output, clean and pure oil, good market efficiency. Original automation, intelligent technology, automatic electronic temperature control function, energy saving and high efficiency. 4.Original automation, intelligent technology, automatic electronic temperature control function, energy saving and high efficiency.5.FOTMA can provide a full set of technical support and perfect after-sales service, which is the first choice of urban and rural oil mills and small and medium-sized refineries.
11. Our Service:
---One year quality warranty for the machine and spare parts
--- Oversea engineers service for installation
--- Whole-life after-sales service and free consultation
---Customized requirements available
---Technician guide at the site.
---24Hr online service

12. FAQ
Q1:-What's your advantage? Why we choose you?
A:-Above 15 Years experience of design,manufacture and exporting the corn and grain processing machinery.We have the most professional techniques and team and more advantage in price.

Q2:- Can we mix different models and accessories together?
A:- You may mix different products or models in a single container but we would need to advise you on optimum loading and final capacity of your shipment.

Q3:- How do I visit you and the factory?
A:- You are welcomed to visit us and our factory at your convenience. We can pick you up at airport or train station and bring you to our factory . Let us know your schedule in details so we can arrange everything for you. Normally you need 3 days for an adequate visit to our factory.

Q4:- How can I become a dealer in my area?
A:- If you are qualified, you may apply for a dealership. We choose reliable partners for a long term business cooperation.

Q5:- Can I get an exclusive right for your machines in some territories?
A:- It depends on which country you are in. We have exclusive agents at several countries at this time. Most countries you can sell freely.

Q6:- After payment, how long will it take to get the machines we order?
A:- Normally 30-90 days after your payment (15-45 days for manufacturing, 15 - 45 days for delivery and shipment on sea)

Q7:- How to order the spare parts?
A:- Some machines will come with some free spare parts. We also advise you purchase some wearing parts with the machines together to stock for urgent replacement, we can send you recommended parts list.
