Syzx24 Automatic Cold Oil Pressing with Twin-Shaft Machine

HUBEI FOTMA MACHINERY CO., LTD.
  • Structure:Vertical
  • Press Series:First
  • Voltage:380V
  • Type:Pressing Machines
  • Application:Beans, Wheat, Peanuts, Cottonseed, Rapeseed, etc
  • Appearance:Vertical

Base Info

  • Model NO.:SYZX24
  • Press Materials:Oil Palm Fruit
  • Condition:New
  • Customized:Non-Customized
  • Model:Syzx24
  • Capacity(T/D):45-50
  • Electric Motor Power(Kw):75
  • Rotary Speed of Main Motor(Rpm):23
  • Electric Current of Main Motor:4.65-85A
  • Thickness of Cake(mm):8-12
  • Oil Content in Cake(%):15-17
  • Overall Dimension(L*W*H)(mm):4535*2560*3055
  • Net Weight(Kg):About 10500
  • Transport Package:in Wooden Case
  • Specification:EEC, SGS, OECD
  • Trademark:FOTMA
  • Origin:China
  • HS Code:5911400000
  • Production Capacity:2000 Sets,Year

Description

Basic Info.

Model NO. SYZX24 Press Materials Oil Palm Fruit Condition New Customized Non-Customized Model Syzx24 Capacity(T/D) 45-50 Electric Motor Power(Kw) 75 Rotary Speed of Main Motor(Rpm) 23 Electric Current of Main Motor 4.65-85A Thickness of Cake(mm) 8-12 Oil Content in Cake(%) 15-17 Overall Dimension(L*W*H)(mm) 4535*2560*3055 Net Weight(Kg) About 10500 Transport Package in Wooden Case Specification EEC, SGS, OECD Trademark FOTMA Origin China HS Code 5911400000 Production Capacity 2000 Sets/Year

Product Description

FOTMA is leading supplier for grain and oil processing equipment in China and our products won several national patents and was official certified, the technical of oil press is continuous updating and the quality is reliable. Through years of scientific research and production practice, we have accumulated sufficient rice professional knowledge and practical experience. Our auto hydraulic oil press equipments are widely exporting to different countries like Nigeria, Myanmar, Guyana and other countries in Asia, South America, Africa, etc..

SYZX24 Automatic Cold Oil Pressing with Twin-Shaft Machine

FOTMA focus on producing oil press machines and our products won several national patents and was official certified, the technical of oil press is continuous updating and the quality is reliable. With excellent production technology and high-quality after-sales service, the market share is steadily rising. Through gather tens of thousands of consumer's successful pressing experience and management model, we can provide you with customized business guidance program, installation and commissioning services, on-site training operations, impart pressing technology, one year warranty, life-long technical support.1.Technical characteristics: The latest supercharging technology, two-stage high pressure protection system.2.Product features: All pressure parts are heat treated, safe and durable3.Pressing range: Mainly pressed sesame, also pressed peanuts, walnuts, etc.
1. Product Description
200A-3 screw oil expeller is widely applies for oil pressing of rapeseeds, cotton seeds, peanut kernel, soybean, tea seeds, sesame, sunflower seeds, etc.. If change the inner pressing cage, which can be used for oil pressing for low oil content materials such as rice bran and animal oil materials. It is also the major machine for second pressing of high oil content materialsuch as copra. This machine is with high market share.


The SYZX series cold oil expeller is a new twin-shaft screw oil press machine which designed in our innovative technology. In the pressing cage there are two parallel screw shafts with contrary rotating directionconveying the material forward by shearing force, which has strong pushing forceThe design can get high compression ratio and oil gain, the oil outflow pass can be self-cleaned

The machine is suitable for both low temperature pressing(also called cold pressing) and normal pressing of vegetable oil seeds such as tea seed kernel, husked rapeseed kernel, soybean, peanut kernel, sunflower seed kernel, perilla seed kernel, azedarach seed kernel, chinaberry seed kernel, copra, etc. It can also be used for the high-temperature pressing of animal scarps and fish shrimp scraps. It is priorly applies for procesing the seeds of high fiber content, small and middle product capacity, and special kinds of seeds, which can produce pure natural with no additive health oil, and the byproducts are low harmed, so as to fully utilized the byproducts.

2. Features1.Compact in structure, sturdy and durable.2.With adjusting vessel, so the machine can adjust the temperature and water content of the flakes.3.Two parallel screw shafts push the flakes forward, the shearing force acts so as to solve the problem of the press of high oil content, low fiber content seed kernel.4.With the powerful shearing force, the machine has excellent self-clean ability, is applicable for the low-temperature press of various kinds of high oil content seed kernel.5.The easily worn parts adopt high abrasion rasistance mental material so they quite durable.
3. Technical parameters
Capacity(t/d)45-50 (low-temperature press for sunflower seed kernel)
 80-100 (high-temperature press for peanut)
Electric motor power(kw)75 (high-temperature pressing)
 55 (low-temperature pressing)
Rotary speed of main motor(rpm)23
Electric current of main motor65-85A
Thickness of cake(mm)8-12
Oil content in cake15-17%(high-temperature press)
 12-14%(low-temperature press )
Overall dimension(L×W×H)(mm)4535×2560×3055
Net weight(kg)about 10500

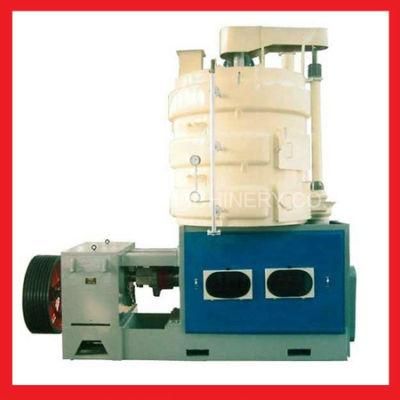

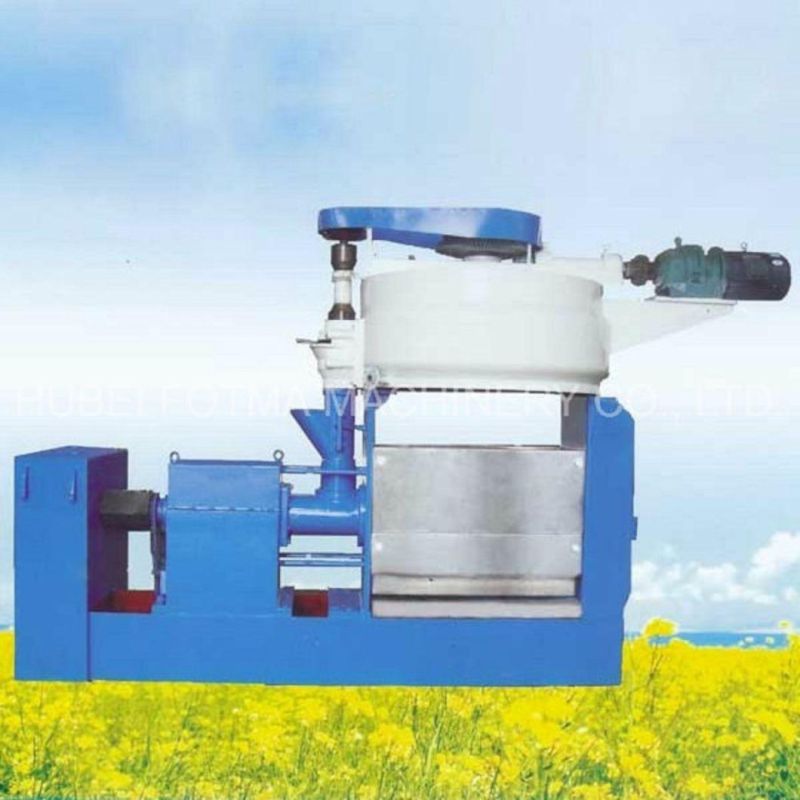

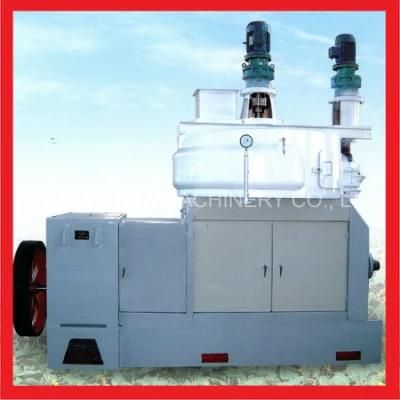

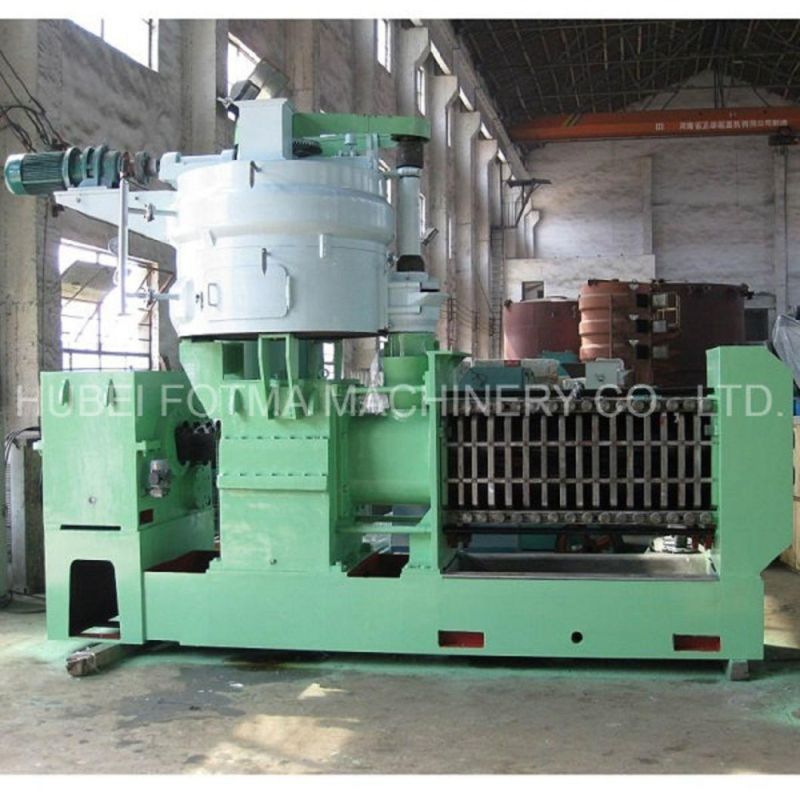

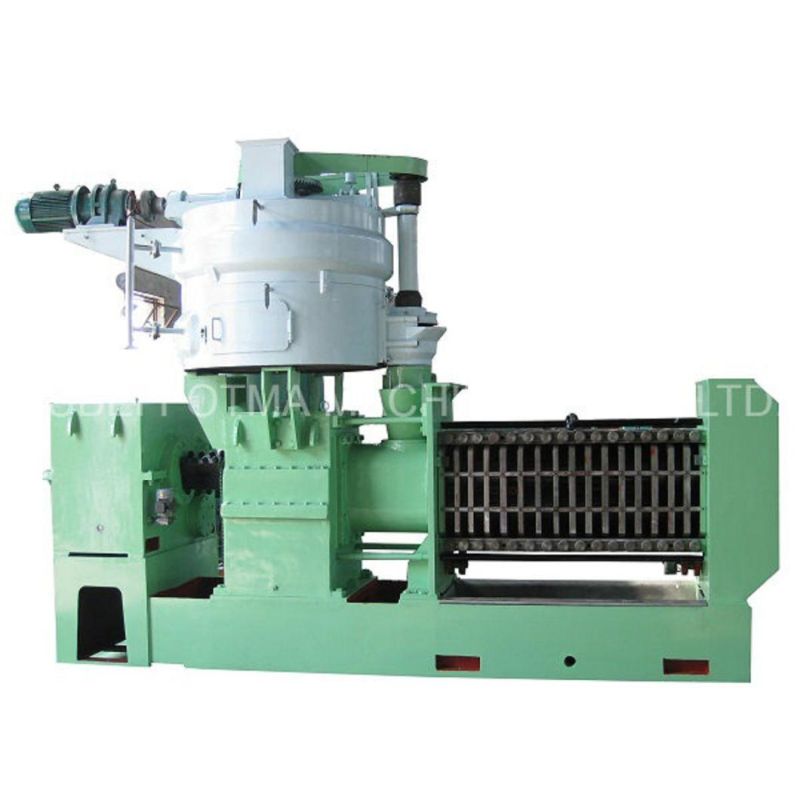

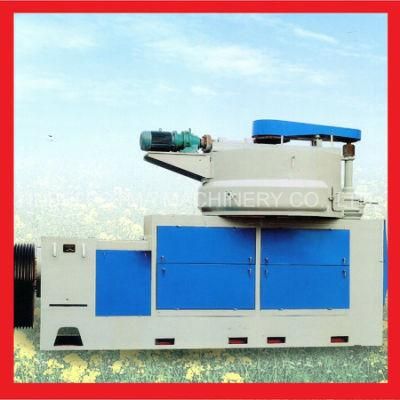

4. Photos
Syzx24 Automatic Cold Oil Pressing with Twin-Shaft MachineSyzx24 Automatic Cold Oil Pressing with Twin-Shaft MachineSyzx24 Automatic Cold Oil Pressing with Twin-Shaft MachineSyzx24 Automatic Cold Oil Pressing with Twin-Shaft MachineSyzx24 Automatic Cold Oil Pressing with Twin-Shaft Machine

5. Packing and Shipping:
(1) Packing: Usually in the wooden cases for main machines and carton boxes for small parts.
Syzx24 Automatic Cold Oil Pressing with Twin-Shaft Machine(2) Delivery:
Usually in 5-45 days after payment, it depends on the model and order quantity. For small packages, we can choose delivery by air(Normal air or courier: DHL, TNT, UPS, FedEx, etc.). For large machines, we can arrange to ship by water( LCL or FCL, bulk cargo or RO/RO), train or truck.


6.Our Factory
Syzx24 Automatic Cold Oil Pressing with Twin-Shaft Machine
7. Certificates

Syzx24 Automatic Cold Oil Pressing with Twin-Shaft Machine
8. Customer Visiting
Syzx24 Automatic Cold Oil Pressing with Twin-Shaft Machine
9. Installation site:
Syzx24 Automatic Cold Oil Pressing with Twin-Shaft Machine
10.Why choose FOTMA?
1.For more than a decade, with its excellent production technology and high-quality after-sales service, it has always been recognized and loved by users.2.Obtained many official promotion appraisals and won many national patents. The technology is continuously updated, the products are mature and reliable, and the technology always leads. 3.High oil output, clean and pure oil, good market efficiency. Original automation, intelligent technology, automatic electronic temperature control function, energy saving and high efficiency. 4.Original automation, intelligent technology, automatic electronic temperature control function, energy saving and high efficiency.5.FOTMA can provide a full set of technical support and perfect after-sales service, which is the first choice of urban and rural oil mills and small and medium-sized refineries.
11. Our Service:
---One year quality warranty for the machine and spare parts
--- Oversea engineers service for installation
--- Whole-life after-sales service and free consultation
---Customized requirements available
---Technician guide at the site.
---24Hr online service
Syzx24 Automatic Cold Oil Pressing with Twin-Shaft MachineSyzx24 Automatic Cold Oil Pressing with Twin-Shaft Machine

12. FAQ
Q1:-What's your advantage? Why we choose you?
A:-Above 15 Years experience of design,manufacture and exporting the corn and grain processing machinery.We have the most professional techniques and team and more advantage in price.

Q2:- Can we mix different models and accessories together?
A:- You may mix different products or models in a single container but we would need to advise you on optimum loading and final capacity of your shipment.

Q3:- How do I visit you and the factory?
A:- You are welcomed to visit us and our factory at your convenience. We can pick you up at airport or train station and bring you to our factory . Let us know your schedule in details so we can arrange everything for you. Normally you need 3 days for an adequate visit to our factory.

Q4:- How can I become a dealer in my area?
A:- If you are qualified, you may apply for a dealership. We choose reliable partners for a long term business cooperation.

Q5:- Can I get an exclusive right for your machines in some territories?
A:- It depends on which country you are in. We have exclusive agents at several countries at this time. Most countries you can sell freely.

Q6:- After payment, how long will it take to get the machines we order?
A:- Normally 30-90 days after your payment (15-45 days for manufacturing, 15 - 45 days for delivery and shipment on sea)

Q7:- How to order the spare parts?
A:- Some machines will come with some free spare parts. We also advise you purchase some wearing parts with the machines together to stock for urgent replacement, we can send you recommended parts list.
