High Quality Feed Pellet Machine for Animal Feed Processing Machinery
ZHENGZHOU YUFENG HEAVY MACHINERY CO., LTD.- After-sales Service：Sales Servies Support
- Type：Pellet Mill
- Processing Object：Mixed Feed
- Processing Technics：Crushing-before-Mixing
- Screen Mesh：Without Screen Mesh
- Grinding Equipment Type：Feed Hammer Mill
Base Info
- Model NO.：SZLH350
- Pellet Mill Type：Ring Die Pelleter
- Bulking Machine Type：Twin Screw Bulking Machine
- Expanding Method：Wet Expansion
- Condition：New
- Applicable Materials Shape：Powder
- Warranty：13 Months
- Capacity：2-7t,H
- Power：55kw
- Transport Package：Standard International Export Packing.
- Specification：According to the machines
- Trademark：YUFCHINA
- Origin：Henan, China (Mainland)
- HS Code：8436100000
- Production Capacity：300 Set,Sets Per Month
Description
Basic Info.
Model NO. SZLH350 Pellet Mill Type Ring Die Pelleter Bulking Machine Type Twin Screw Bulking Machine Expanding Method Wet Expansion Condition New Applicable Materials Shape Powder Warranty 13 Months Capacity 2-7t/H Power 55kw Transport Package Standard International Export Packing. Specification According to the machines Trademark YUFCHINA Origin Henan, China (Mainland) HS Code 8436100000 Production Capacity 300 Set/Sets Per MonthProduct Description

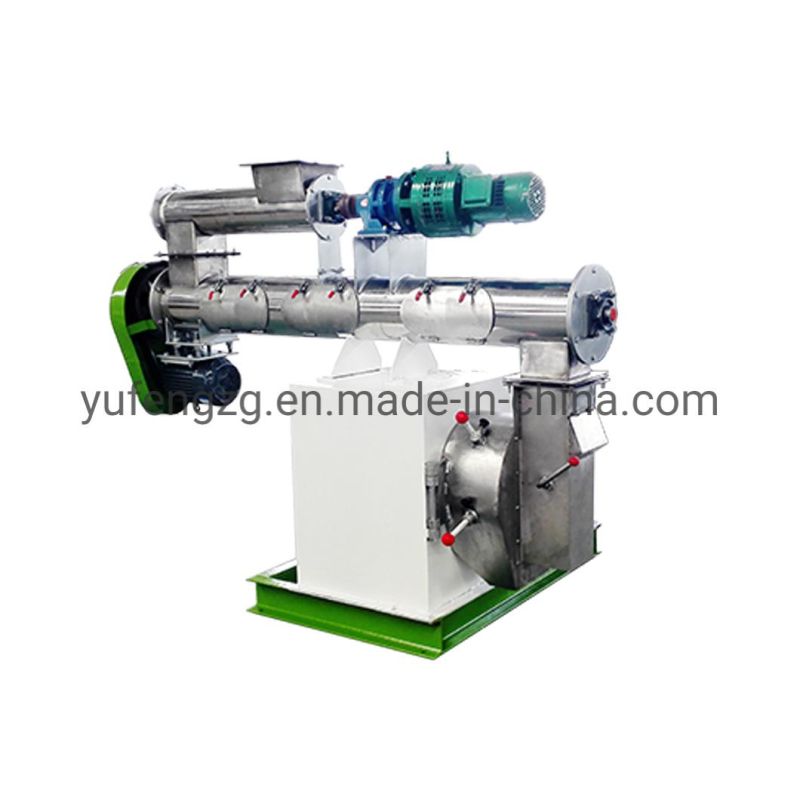

High Quality feed pellet machine for animal feed processing machinery
This feed pellet machine is suitable for different kind of poultry feed pellet and domestic animal feed pellets, such as: chicken feed, cattle feed, sheep feed,goose feed, and so on. It is also suitable for straw feed granulator, rice husk feed granulator, soybean cake feed granulator, soybean meal feed granulator, corn feed granulator, grass meal feed granulator. It can be widely used in medium and small aquaculture, grain and feed processing plants, livestock farms, poultry farms and individual farmers.
Working Theory
Through feeder, the feed ingredients enter into conditioner and are mixed with hot-steam in the conditioner, then they go into the pelletizing chamber through blanking taper slot. By scraper the powder material enters into the pelletizing zone. And then the material will be pressed by ring die and rollers into pellets. The pellets are discharged from the die holes and cut into the requested size by the cutter.
Features of animal feed pellet making machine
1) High efficiency
Stable and classical gear driving, non-slipping,can really ensure the alfalfa feed pellet machine production output. Low noise, optimized ring die, maximum output.
2) Large capacity
Large capacity, to meet the needs of alfalfa feed pellet machine production and enterprise long-term supply.
3) Flexible production
Wide product rangeΦ1.5mm-Φ12mm pellets, complete animal feed pellet production line, conditioner with molasses and steam adding function.
4) User-friendly operation
Hydraulic system for ring die change and roller adjustment (optional), quick ad precise operation; auto-lubrication system(optional)and die & roller lifting device, save labor; on-site touch screen control.
Technical Parameters of animal feed pellet making machine
| Model | Main Motor power (kw) | Capacity(t/h) | Feeder power (kW) | Modulator power (kW) | Ring die Dia.(mm) |
| SZLH250 | 22 | 1-2 | 0.75 | 1.5 | Φ250 |
| SZLH320 | 37 | 2-5 | 0.75 | 2.2 | Φ320 |
| SZLH350 | 55 | 3-6 | 1.5 | 2.2 | Φ350 |
| SZLH420 | 110 | 8-12 | 1.5 | 5.5 | Φ420 |
| SZLH508 | 132/160 | 12-18 | 1.5 | 7.5 | Φ508 |
Introduction of animal feed pellet making machine
We can design machines according to customers' need.If you want to learn more information,please contact us at any time.
