• Model NO.：SZLH420
• Pellet Mill Type：Ring Die Pelleter
• Bulking Machine Type：Twin Screw Bulking Machine
• Expanding Method：Wet Expansion
• Condition：New
• Applicable Materials Shape：Powder
• Capacity：8-12t,H
• Power：110kw
• Transport Package：Standard International Export Packing.
• Specification：According to the machines
• Trademark：YUFCHINA
• Origin：Henan, China (Mainland)
• HS Code：8436100000
• Production Capacity：300 Set,Sets Per Month

Basic Info.

Model NO. SZLH420 Pellet Mill Type Ring Die Pelleter Bulking Machine Type Twin Screw Bulking Machine Expanding Method Wet Expansion Condition New Applicable Materials Shape Powder Capacity 8-12t/H Power 110kw Transport Package Standard International Export Packing. Specification According to the machines Trademark YUFCHINA Origin Henan, China (Mainland) HS Code 8436100000 Production Capacity 300 Set/Sets Per Month

Product Description

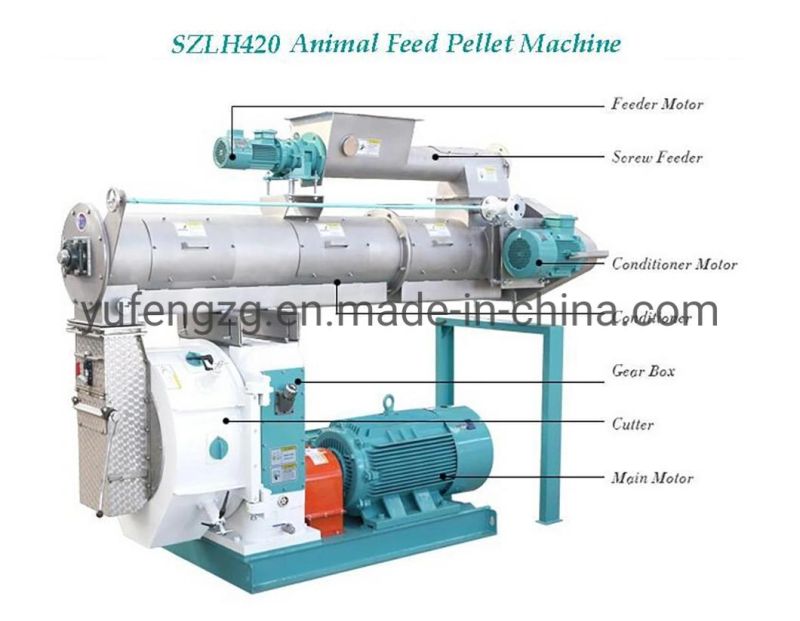

Poultry Sheep chicken animal feed processing machines      This feed pellet machine is suitable for different kind of poultry feed pellet and domestic animal feed pellets, such as: chicken feed, cattle feed, sheep feed,goose feed, and so on. It is also suitable for straw feed granulator, rice husk feed granulator, soybean cake feed granulator, soybean meal feed granulator, corn feed granulator, grass meal feed granulator. It can be widely used in medium and small aquaculture, grain and feed processing plants, livestock farms, poultry farms and individual farmers.  Structure:       The structure is simple and compact. The feed pellet mill is consisted of the conditioner, foundation frame, motor,  power transmission system and electrical control system, etc. Under the pressures function caused by the interaction between the rind die and the rollers, the powder raw materials is compressed into densified feed pellet.
   Features of animal feed pellet making machine

1) High efficiency
Stable and classical gear driving, non-slipping,can really ensure the alfalfa feed pellet machine production output. Low noise, optimized ring die, maximum output.

2) Large capacity
Large capacity, to meet the needs of alfalfa feed pellet machine production and enterprise long-term supply.

3) Flexible production

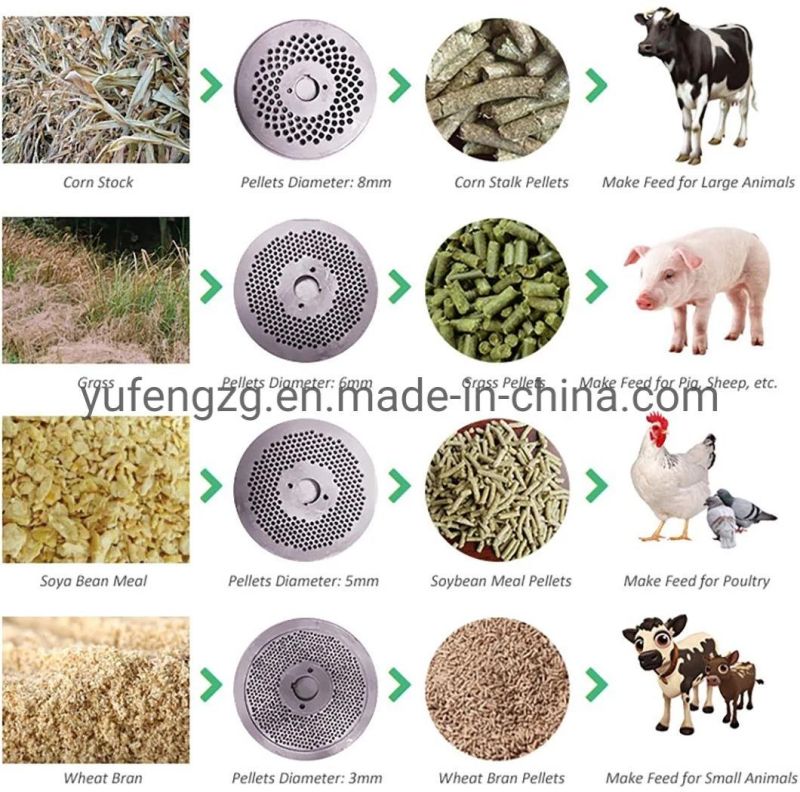

Wide product rangeΦ1.5mm-Φ12mm pellets, complete animal feed pellet production line, conditioner with molasses and steam adding function.

4) User-friendly operation
Hydraulic system for ring die change and roller adjustment (optional), quick ad precise operation; auto-lubrication system(optional)and die & roller lifting device, save labor; on-site touch screen control.

  Technical Parameters of animal feed pellet making machine

Model	Main Motor power (kw)	Capacity(t/h)	Feeder power (kW)	Modulator power (kW)	Ring die Dia.(mm)
SZLH250	22	1-2	0.75	1.5	Φ250
SZLH320	37	2-5	0.75	2.2	Φ320
SZLH350	55	3-6	1.5	2.2	Φ350
SZLH420	110	8-12	1.5	5.5	Φ420
SZLH508	132/160	12-18	1.5	7.5	Φ508


Advantages:

1. This feed pellet machine is equipped with inverter controlled screw feeder, and work with permanent magnet to removing iron impurities, which will protect the pellet machine and its wearing parts.

2.Stainless steel conditioner makes even retention and sufficient cooking effect.

3.Gear directly-connecting driving is adopted for high accuracy and efficiency. The output can increase 20% comparing to feed pellet machine driven by belts.

4. NSK bearings, Siemens motors, and SKF Bearings are adopted to makes operation smoothly.

5.Main gear and pinion shaft adopt the carbonizing quenching with high accuracy, to ensure smooth driving, low noise and long service life.

6. Applicable for all kinds of high grade animal / livestock / poultry / aqua feed. Single, double or three layers of conditioner is optional.

Detail Pictures of animal feed pellet making machine


      We can design machines according to customers' need.If you want to learn more information,please contact us at any time.


Introduction of animal feed pellet making machine
