• Model NO.：5XZC-5DH
• Color：Green or White
• Guarantee：One Year
• Spare Parts：One Year
• Discount：Yes
• Transport Package：Wooden Case or Container
• Specification：ISO9001, TUV, SGS, CE, SONCAP
• Trademark：SYNMEC
• Origin：Hebei, China
• HS Code：8437109000
• Production Capacity：50 Sets,Month

Basic Info.

Model NO. 5XZC-5DH Color Green or White Guarantee One Year Spare Parts One Year Discount Yes Transport Package Wooden Case or Container Specification ISO9001, TUV, SGS, CE, SONCAP Trademark SYNMEC Origin Hebei, China HS Code 8437109000 Production Capacity 50 Sets/Month

Product Description

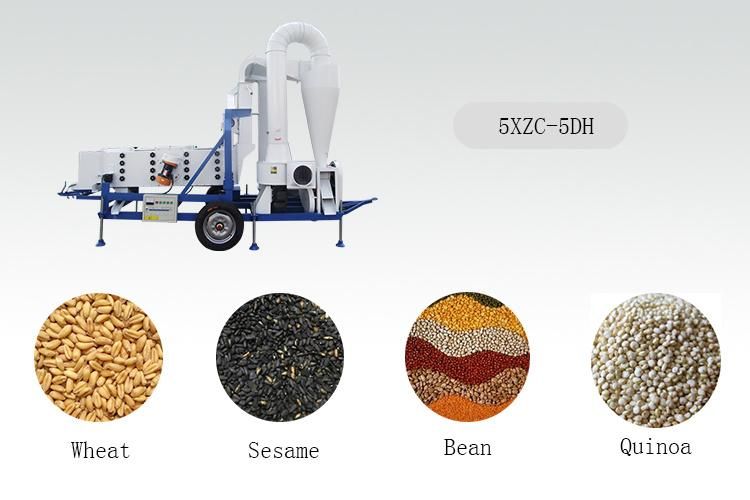

5XZC-5DH Cereal Grain Bean Peas Seed Cleaning Machine

Introduction:
Seed cleaner & grader is used for cleaning and grading seeds, grains, cereals, and other granule products.
It can be equipped to suit a variety of special jobs and purposes.

Dust and light impurity are removed by aspirator fan. Material falls on sieve layers and was separated by sieves according to width and thickness difference. All the oversize and undersize impurities were discharged from different outlets.


model	Capacity (ton/hour)	Power (kw)	Weight (kg)	Dimension L*W*H(mm)	Remarks
5XZC-3B	3	4.25	1200	3970x1800x2750	Grain Cleaning And Grading
5XZC-3DH	3	5	1300	3970x1800x2750	Installed Cyclone Dust Separator
5XZC-3DS	3	7.5	1400	4470x1800x2850	Double Air Cleaning System
5XZC-5DH	5	7.74	1600	4970x1900x3100	Installed Cyclone Dust Separator
5XZC-7.5DS	7.5	9.9	1770	3920x2430x3440	Double Air Cleaning System
5XZC-15	10	10.5	1800	5600x2100x3200	Installed Cyclone Dust Separator
5XZD-15AC	20	20.9	3000	5140x2340x3820	Double Sieving Trunks
5XZF-7.5F	7.5	10.1	1800	5600x2000x3200	With Destoner Plate

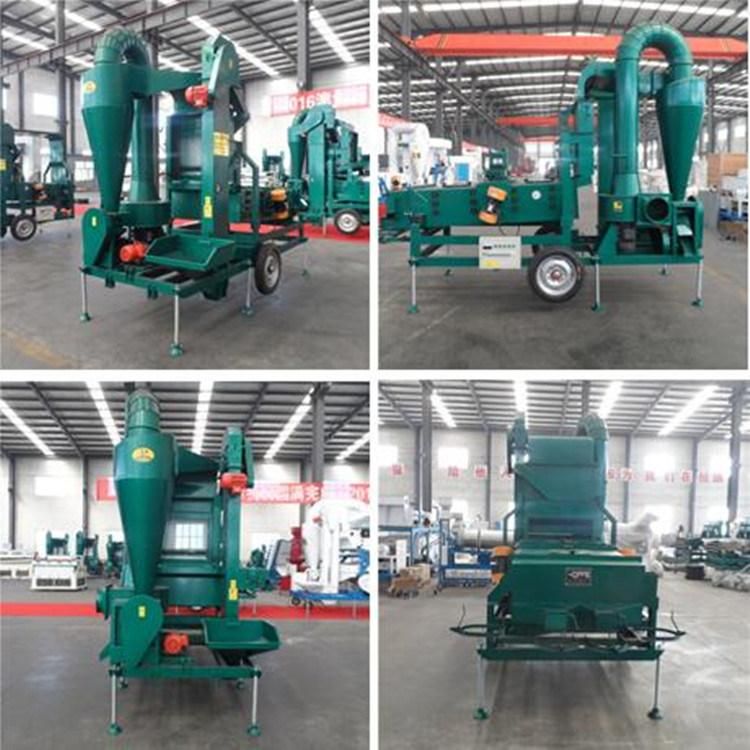

Detail:
