• Model NO.：5BY-5A
• Input：3 Phase Electricity
• Transport Package：Wooden Case or Container
• Specification：SGS, ISO9001, TUV
• Trademark：SYNMEC
• Origin：Hebei, China
• HS Code：84371090
• Production Capacity：30 Sets Per Month

Basic Info.

Model NO. 5BY-5A Input 3 Phase Electricity Transport Package Wooden Case or Container Specification SGS, ISO9001, TUV Trademark SYNMEC Origin Hebei, China HS Code 84371090 Production Capacity 30 Sets Per Month

Product Description

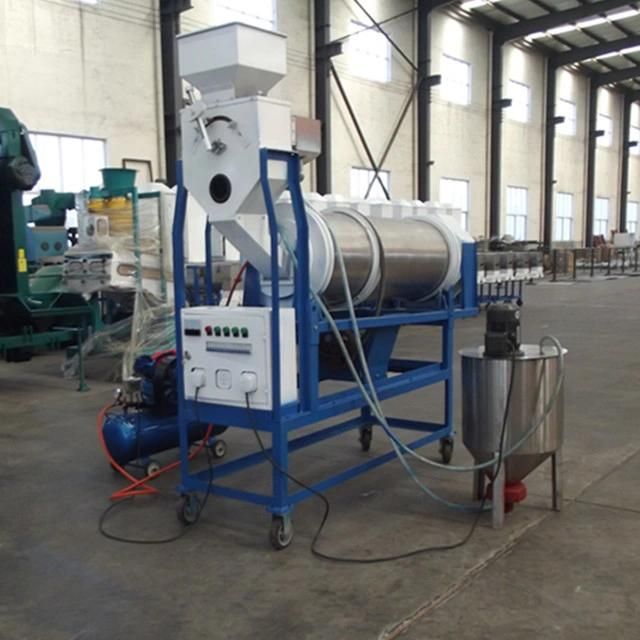

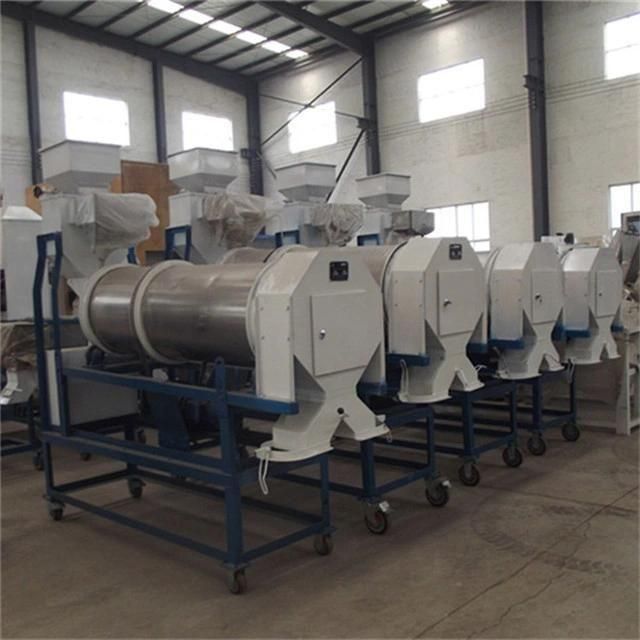

corn wheat seed coater treating machine
Features
5BY-5A seed coater adopts air compressor and medicine spoon for coating medicine supply. It uses spray nozzle for coating medicine atomization, stainless steel drum for mixing the seeds with atomized medicine.

Application
The 5BY-5A model seed coater machine is a good choice for coating seeds. It applies for various crops, such as seed of wheat, barley, maize, sorghum, soybean, cotton, vegetables, fruits etc.

Working Principle
Seeds will be quantificationally fed into the rotary drum through feeding bucket, at the same time quantitative medicine will be atomized by air compressor and sprayed to the surface of seeds, then the seed and medicine will be well mixed in the rolling drum.
The seeds will be coated with liquid medicine before the sowing, for prevent pest eaten and for better germination.


Type	Capacity (t/h)	Power (kw)	Weight (kg)	Dimension (mm)	Agent Supply Model
5BY-2 seed treater	2	1.47	200	1600× 800× 1500	Spoon
5BY-5A seed treater	5	6	800	2200× 900× 2500	Spoon
5BY-5B seed treater	5	2.3	700	2150 × 800× 2400	Dosing Pump
