• Model NO.：SKJZ3000
• Pellet Mill Type：Ring Die Pelleter
• Bulking Machine Type：Twin Screw Bulking Machine
• Expanding Method：Wet Expansion
• Condition：New
• Applicable Materials Shape：Granular
• Warranty：1 Year
• Model Number：Skjz3000
• Voltage：380V,415V,440V
• Power(W)：87kw
• Capacity：1-3t,H
• Dimension(L*W*H)：12m*6m*8m
• Pelleted Feed Size：1.5-18mm
• Application：for Making Feed Pellets
• Transport Package：Iron Pallet and Soft Guard
• Specification：2000KG
• Trademark：FDSP
• Origin：China
• HS Code：84361000
• Production Capacity：50 Sets Per Year

Basic Info.

Model NO. SKJZ3000 Pellet Mill Type Ring Die Pelleter Bulking Machine Type Twin Screw Bulking Machine Expanding Method Wet Expansion Condition New Applicable Materials Shape Granular Warranty 1 Year Model Number Skjz3000 Voltage 380V/415V/440V Power(W) 87kw Capacity 1-3t/H Dimension(L*W*H) 12m*6m*8m Pelleted Feed Size 1.5-18mm Application for Making Feed Pellets Transport Package Iron Pallet and Soft Guard Specification 2000KG Trademark FDSP Origin China HS Code 84361000 Production Capacity 50 Sets Per Year

Product Description

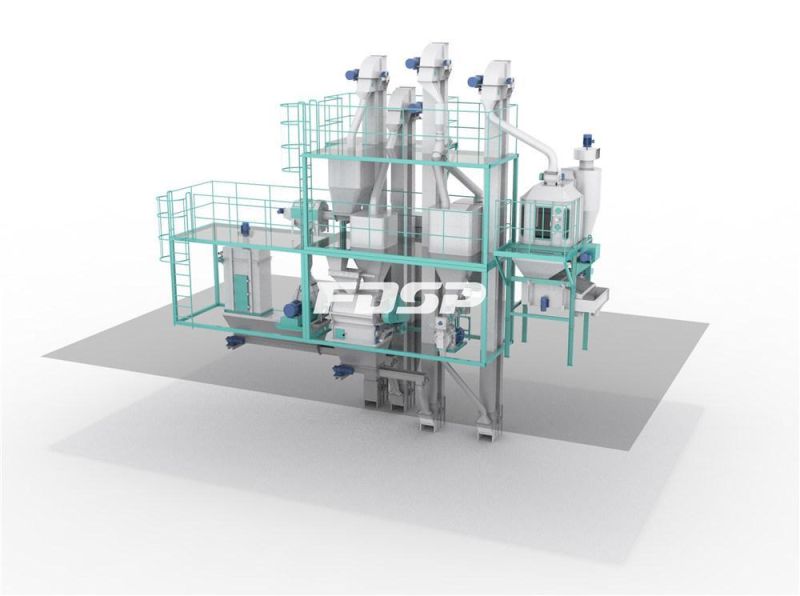

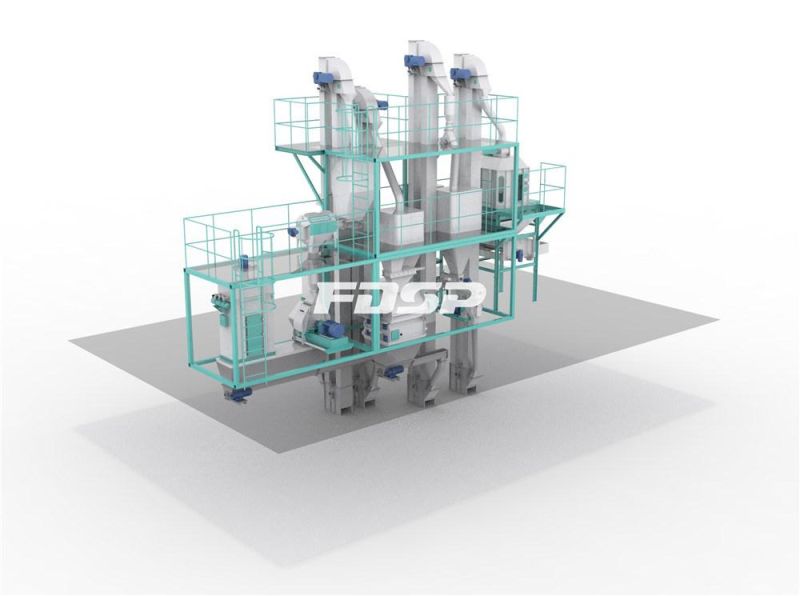

Energy Saving Livestock Feed Production Line For Sale

Brief introduction of processing flow:

SKJZ3000 feed set takes manual way of adding raw materials. Its designed capacity is 2-3T/H for powder feed and 1-1.5T/H for pellet feed. During the processing, raw materials need weighing ahead, and then will be put into the production line from two different feeding gates. Materials which need grinding will be put into the hammer mill from pellet feeding gate by lot. Materials which don't need grinding will be put into the line from powder feeding gate. The materials having been mixed can either be sent directly into product bin as powder feed or be sent into pelletizing process to be pelletized and cooled to be pellet feed, which need manual scaling and packing.

The total power of this feed set is about 87kw, taking an area of 12*6*8m, equipped with 0.2T boiler. The whole feed set takes joint frame that is in tight design, reasonable structure and is eco-friendly. Also, the feed set can be specially designed according to buyers needs.

Technical Procedure:

Raw material receiving and cleaning  process--Grinding process--Mixing process--Pelletizing and  cooling process--Aauxiliary Process

Introduction of technical features and processes

Raw material receiving and cleaning process:Pellet and powder raw materials will be put into the production line separately from two different feeding gates. Pellet raw materials will be cleaned by pre-cleaner and then put into hammer mill. Powder raw materials need cleaning ahead.

Grinding process:Taking FDSP tear-circle hammer milll which can make both coarse grinding and fine grinding, the feeder is combined together with the pre-cleaner which can clean the material and also feeding into the hammer mill, variable frequency control, evenly feeding and equipped with pulse filter. Mechanical induct discharging. The process is simple and with low cost, it is suitable for small capacity and multi type of material's grinding.

Grinding machine: SFSP568-I, 22KW, designed capacity 2-3T/H.

Mixing process: Above the mixer, there is a bin for mixing that can make the production continuous. Materials having been mixed can be sent to bin for pelletizing or product bin, which satisfied the production need of both powder feed and pellet feed.

Mixing machine: Double shaft paddle mixer FHSJ0.5, 5.5KW, 250KG/LOT, designed capacity 2-3T/H. Mixing evenness CV≤5%.

Pelletizing process: Taking one pellet mill with single conditioner which is suitable for normal poultry feed and ruminant feed production. Finished pellets will be sent into cooling and vibrating sieve and then be packed.

Pelletizing machine: Pellet Mill SZLH25, 22KW, designed capacity 1-1.5T/H(¢3.5 ordinary chicken feed formula)

Cooling machine: Counter flow cooling sieve SNSZ120, designed capacity 1-2T/H.

Auxiliary Process: equipped with liquid adding system, oil can be added in mixer to improve the palatability of feed; equipped with air compressor, which provide compressed air for pneumatic parts of the production line.
