• Model NO.：YZY340-3
• Press Materials：Oil Palm Fruit
• Condition：New
• Customized：Non-Customized
• Capacity(T/Hr)：Over Than 300
• Residual Oil Content in Cake(%)：11%-16%
• Steam Pressure(MPa)：0.5-0.6
• Power(Kw)：185+15
• Rotate Speed(Rpm)：66
• Electric Current of Main Motor：310-320
• Thickness of Cake(mm)：15-20
• Dimension(L*W*H)(mm)：4935*1523*2664
• Net Weight(Kg)：About 14980
• Transport Package：in Wooden Case
• Specification：EEC, SGS, OECD
• Trademark：FOTMA
• Origin：China
• HS Code：5911400000
• Production Capacity：2000 Sets,Year

Basic Info.

Model NO. YZY340-3 Press Materials Oil Palm Fruit Condition New Customized Non-Customized Capacity(T/Hr) Over Than 300 Residual Oil Content in Cake(%) 11%-16% Steam Pressure(MPa) 0.5-0.6 Power(Kw) 185+15 Rotate Speed(Rpm) 66 Electric Current of Main Motor 310-320 Thickness of Cake(mm) 15-20 Dimension(L*W*H)(mm) 4935*1523*2664 Net Weight(Kg) About 14980 Transport Package in Wooden Case Specification EEC, SGS, OECD Trademark FOTMA Origin China HS Code 5911400000 Production Capacity 2000 Sets/Year

Product Description

YZY340-3 Series Auto Oil Pre-press Plant

1. General Description
YZY Series Oil Pre-press machines are continuous type screw expeller, they are suitable for either "pre-pressing + solvent extracting" or "tandem pressing" of processing oil materials with high oil content, such as peanuts, cottonseeds, rapeseed, sunflower seeds, etc. This series oil press machine is a new generation of big capacity pre-press machine with the features of  high rotating speed and thin cake.

YZY Series Oil Pre-press machines are continuous type screw expeller, they are suitable for either "pre-pressing + solvent extracting" or "tandem pressing" of processing oil materials with high oil content, such as peanuts, cottonseeds, rapeseed, sunflower seeds, etc. This series oil press machine is a new generation of big capacity pre-press machine with the features of  high rotating speed and thin cake.

2. Features1.Large processing capacity, so the installation space, power consumption, the job of operation and maintenance are reduced accordingly.2.The main parts such as main shaft, screws, cage bars, gears are all made of good quality alloy materials and carbonized hardened, they can stand long tearing under long-term high temperature working and abrasion.3.The process from steam cooking at the feeding inlet until oil output and cake outlet is all automatic continuously working, the operation is easy.4.With steam kettle, the meal is cooked and steamed in the kettle. The temperature and water content of feeding materials can be regulated according to different oil seeds requirements, to improve the oil yield and get higher quality of oil.5.The pressed cake is suitable for solvent extraction. The capillary interstice on the surface of the cake are dense and clear, it is helpful on solvent penetration.6.The oil and water content in cake are suitable for solvent extraction.7.The pre-pressed oil is with higher quality than the obtained oil by single pressing or single solvent extraction.8.The machines can be used for cold pressing if change the pressing worms.
3. Technical parameters 1.Capacity: over than 300T/24hr(Take the cotton seeds for instance)2.Residual oil content in cake: 11%-16%( under appropriate preparation condition)3.Steam pressure: 0.5-0.6Mpa4.Power:  185kw + 15kw5.Rotate speed: 66rpm6.Electric current of Main motor: 310-320A7.Thickness of cake: 15-20mm8.Dimension(L×W×H):4935×1523×2664mmNet weight:  about 14980Kg

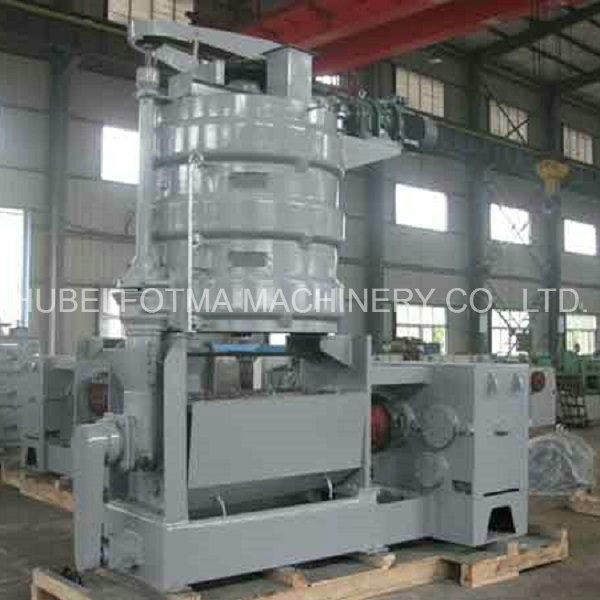

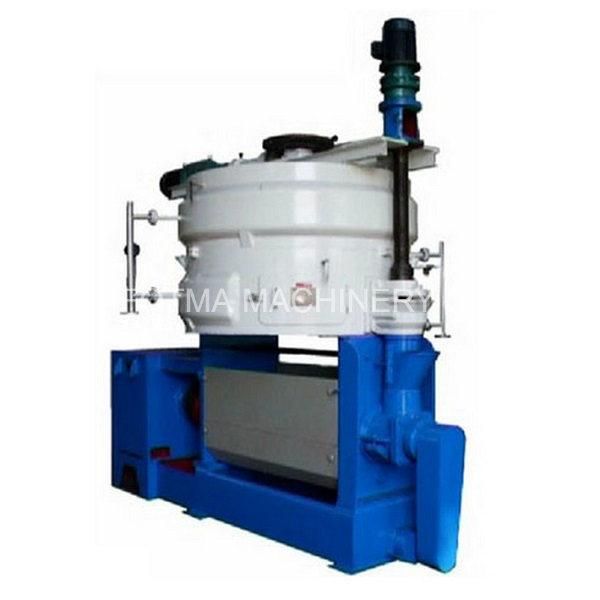

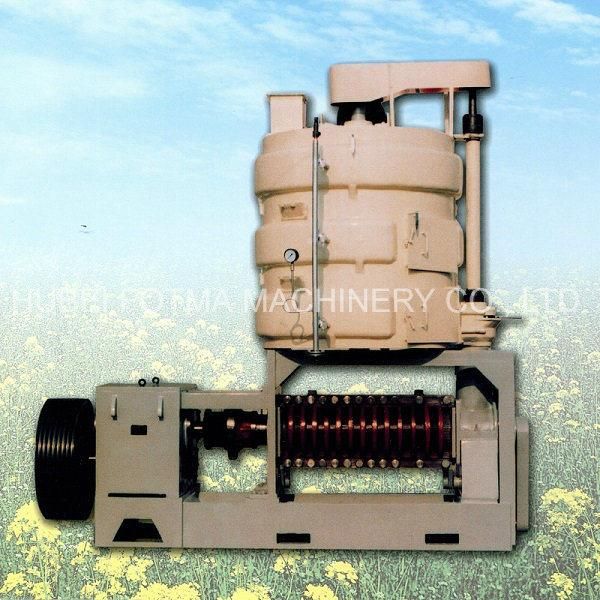

4. Photos





5. Packing and Shipping:

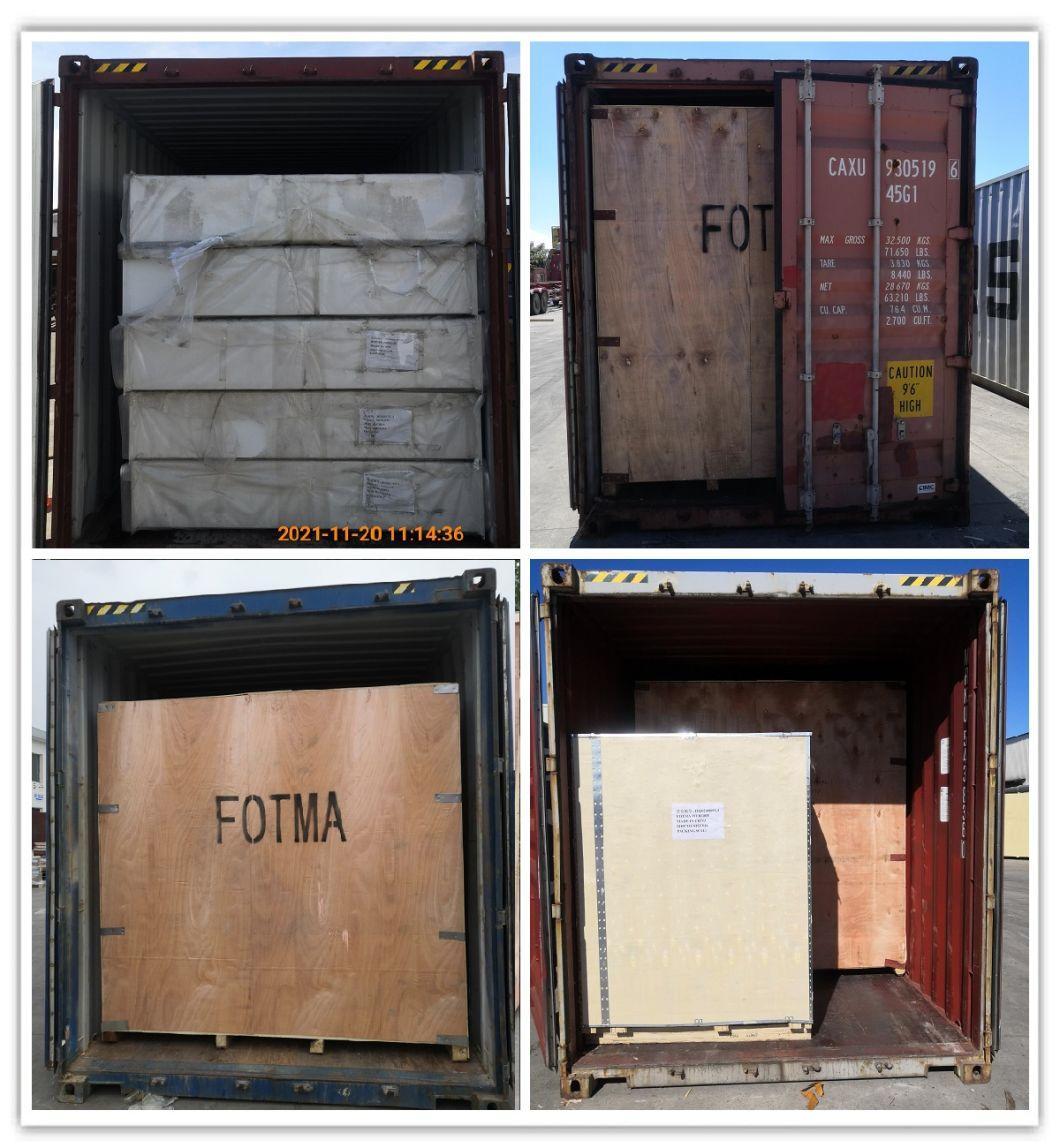

(1) Packing: Usually in the wooden cases for main machines and carton boxes for small parts.

(2) Delivery:
Usually in 5-45 days after payment, it depends on the model and order quantity. For small packages, we can choose delivery by air(Normal air or courier: DHL, TNT, UPS, FedEx, etc.). For large machines, we can arrange to ship by water( LCL or FCL, bulk cargo or RO/RO), train or truck.

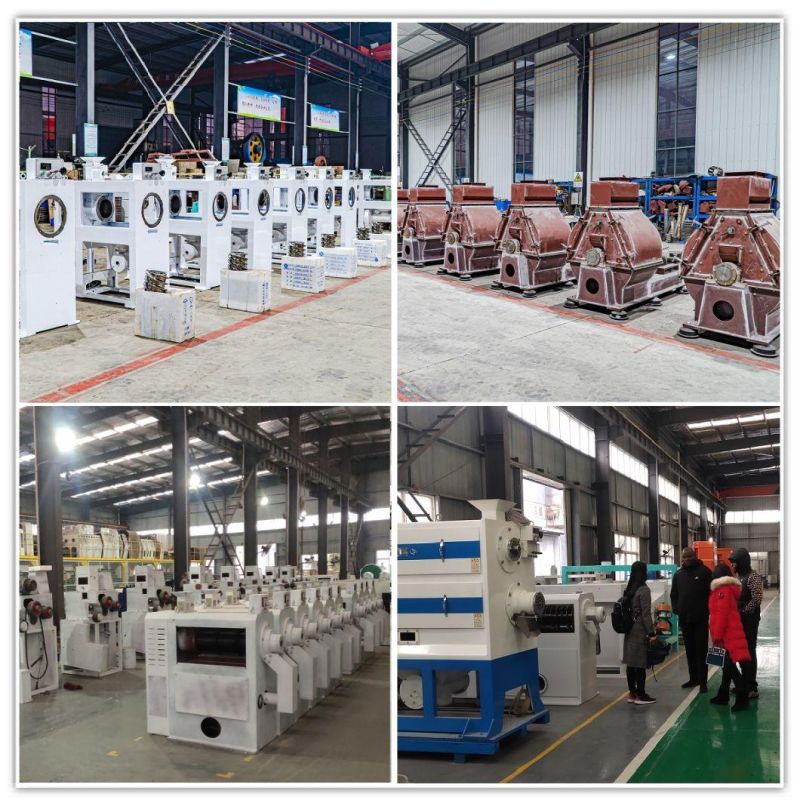

6.Our Factory

7. Certificates


8. Customer Visiting

9. Installation site:

10.Why choose FOTMA?1.For more than a decade, with its excellent production technology and high-quality after-sales service, it has always been recognized and loved by users.2.Obtained many official promotion appraisals and won many national patents. The technology is continuously updated, the products are mature and reliable, and the technology always leads. 3.High oil output, clean and pure oil, good market efficiency. Original automation, intelligent technology, automatic electronic temperature control function, energy saving and high efficiency. 4.Original automation, intelligent technology, automatic electronic temperature control function, energy saving and high efficiency.5.FOTMA can provide a full set of technical support and perfect after-sales service, which is the first choice of urban and rural oil mills and small and medium-sized refineries.
11. Our Service:
---One year quality warranty for the machine and spare parts
--- Oversea engineers service for installation
--- Whole-life after-sales service and free consultation
---Customized requirements available
---Technician guide at the site.
---24Hr online service

12. FAQ
Q1:- What's your advantage? Why we choose you?
A:- 1. Above 20 years' experience of designing, manufacturing and exporting of the grain and oil processing machinery. We have the most professional techniques and team and more advantage in price.
      2. Over than 15-Years' Alibaba Gold Member. "Integrity, Quality, Commitment, Innovation" is our values.

Q2:- Can we mix different models and accessories together?
A:- You may mix different products or models in a single container but we would need to advise you on optimum loading and final capacity of your shipment.

Q3:- How do I visit you and the factory?
A:- You are welcomed to visit us and our factory at your convenience. We can pick you up at airport or train station and bring you to our factory . Let us know your schedule in details so we can arrange everything for you. Normally you need 3 days for an adequate visit to our factory.

Q4:- How can I become a dealer in my area?
A:- If you are qualified, you may apply for a dealership. We choose reliable partners for a long term business cooperation.

Q5:- Can I get an exclusive right for your machines in some territories?
A:- It depends on which country you are in. We have exclusive agents at several countries at this time. Most countries you can sell freely.

Q6:- After payment, how long will it take to get the machines we order?
A:- Normally 30-90 days after your payment (15-45 days for manufacturing, 15 - 45 days for delivery and shipment on sea)
