• Model NO.：204-3
• Condition：New
• Customized：Customized
• Application：Soya
• Model：204-3
• Capacity(T/D)：70-80
• Residual Oil in Cake(%)：18
• Motor Power：220,380V, 50Hz
• Main Shaft：Y225m-6, 30 Kw
• Digestor Stir：Bly4-35, 5.5kw
• Feeding Shaft：Bly2-17, 3kw
• Overall Dimensions(L*W*H)(mm)：2900*1850*4100
• Net Weight(Kg)：5800
• Transport Package：in Wooden Case
• Specification：EEC, SGS, OECD
• Trademark：FOTMA
• Origin：China
• HS Code：5911400000
• Production Capacity：2000 Sets,Year

Basic Info.

Model NO. 204-3 Condition New Customized Customized Application Soya Model 204-3 Capacity(T/D) 70-80 Residual Oil in Cake(%) 18 Motor Power 220/380V, 50Hz Main Shaft Y225m-6, 30 Kw Digestor Stir Bly4-35, 5.5kw Feeding Shaft Bly2-17, 3kw Overall Dimensions(L*W*H)(mm) 2900*1850*4100 Net Weight(Kg) 5800 Transport Package in Wooden Case Specification EEC, SGS, OECD Trademark FOTMA Origin China HS Code 5911400000 Production Capacity 2000 Sets/Year

Product Description

204-3 Fully Automatic Screw Oil Pre-press Project

FOTMA focus on producing oil press for 16 years, the product of which has won several national patents and was certificated by official, the technical of oil press is continuous updating and the quality is reliable. With excellent production technology and high-quality after-sales service, the market share is steadily rising. Through gather tens of thousands of consumer's successful pressing experience and management model, we can provide you with customized business guidance program, installation and commissioning services, on-site training operations, impart press technology, equipment one year warranty, life-long technical support.

1. Product description
204-3 oil expeller, a continuous screw type pre-press machine, is suitable for pre-press + extraction or twice pressing processing for the oil materials with higher oil content like peanut kernel,cotton seed, rape seeds, safflower seeds, castor seeds and sunflower seeds, etc.

The 204-3 oil press machine is mainly comprised of feeding chute, pressing cage, pressing shaft, gear box and main frame, etc. The meal enters the pressing cage from the chute, and be propelled, squeezed, turned, rubbed and pressed, the mechanical energy is converted into heat energy, and gradually expels the oil out, the oil flows out the slits of pressing cage, collected by the oil dripping chute, then flows into oil tank. The cake is expelled out from end of the machine. The machine is of compact structure, moderate floor area consumption, easy maintenance and operation.

2. Features
The 204 pre-press expeller is suitable for pre-pressing. Under normal preparation conditions, it has following features:
1.The pressing capacity is high, thus the workshop area, power consumption, operation and management and maintenance job will be reduced accordingly.
2. The cake is loose but not easily broken, which is conducive for solvent penetration.
3. Both the oil content and moisture of the squeezed cake are suitable for solvent leaching.
4. The quality of pressed oil is better than the oil from single pressing or single extraction.

3. Technical parameters
Capacity: 70-80t/24hr.(take the cotton seed kernel as example)
Residual oil in cake: ≤18%  (Under normal pre-treatment)
Motor: 220/380V, 50HZ
Main shaft: Y225M-6, 30 kw
Digestor stir: BLY4-35, 5.5KW
Feeding shaft: BLY2-17, 3KW
Overall dimensions(L*W*H):2900×1850×4100 mm
Net weight: about 5800kg

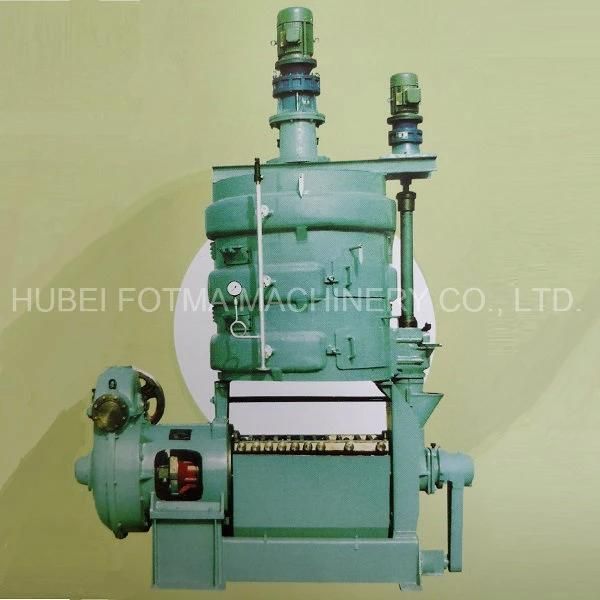

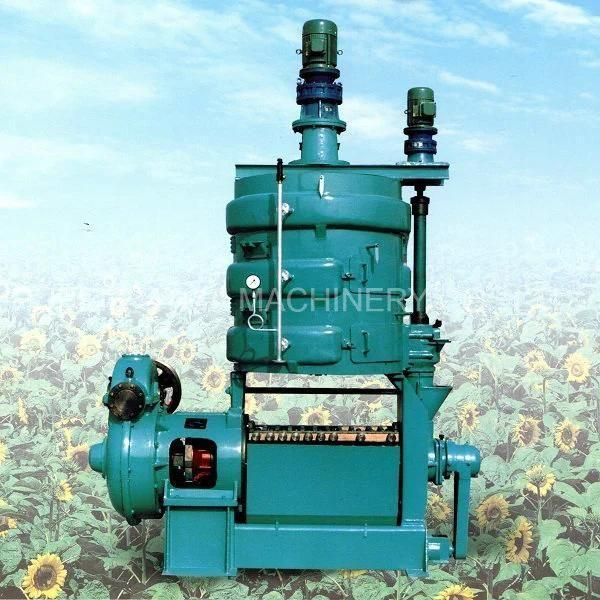

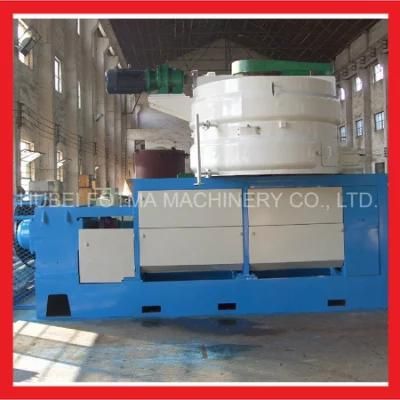

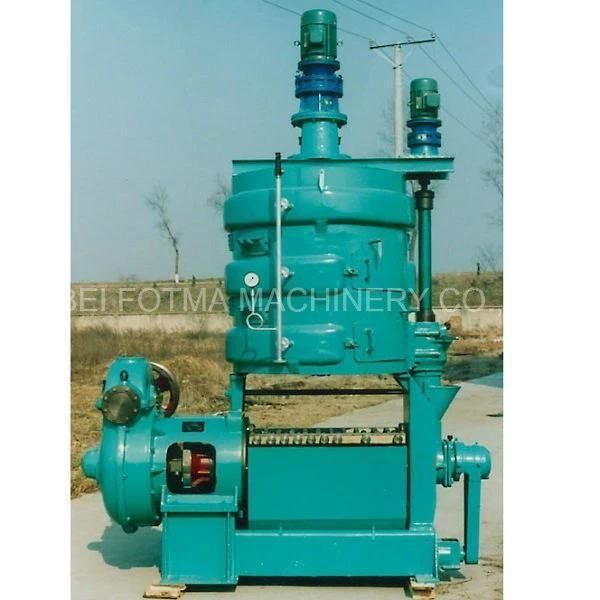

4. Photos





5. Packing and Shipping:
(1) Packing: Usually in the wooden cases for main machines and carton boxes for small parts.

(2) Delivery:
Usually in 5-45 days after payment, it depends on the model and order quantity. For small packages, we can choose delivery by air(Normal air or courier: DHL, TNT, UPS, FedEx, etc.). For large machines, we can arrange to ship by water( LCL or FCL, bulk cargo or RO/RO), train or truck.

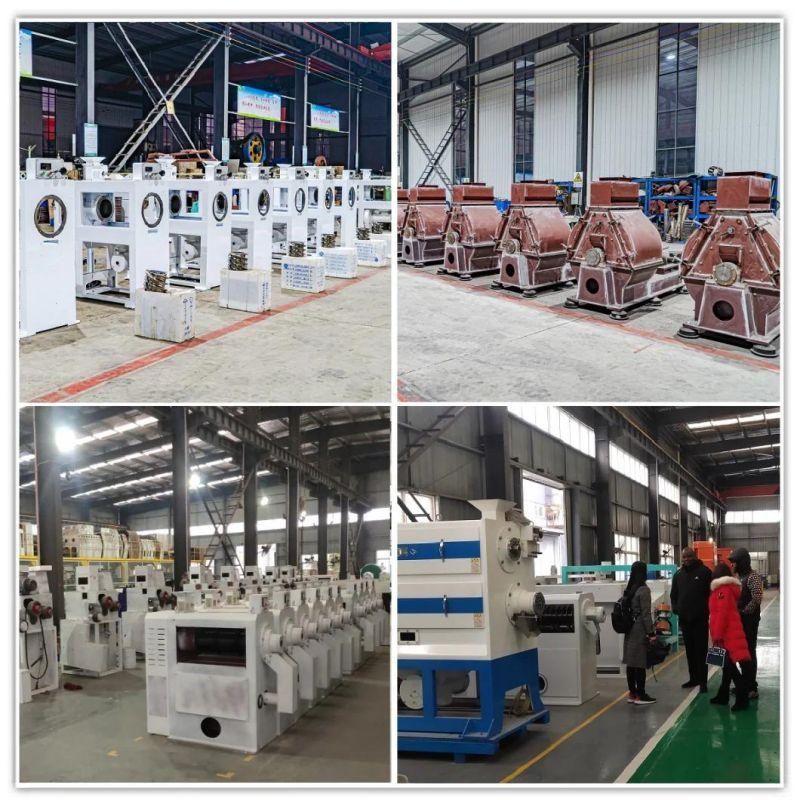

6.Our Factory

7. Certificates

8. Customer Visiting

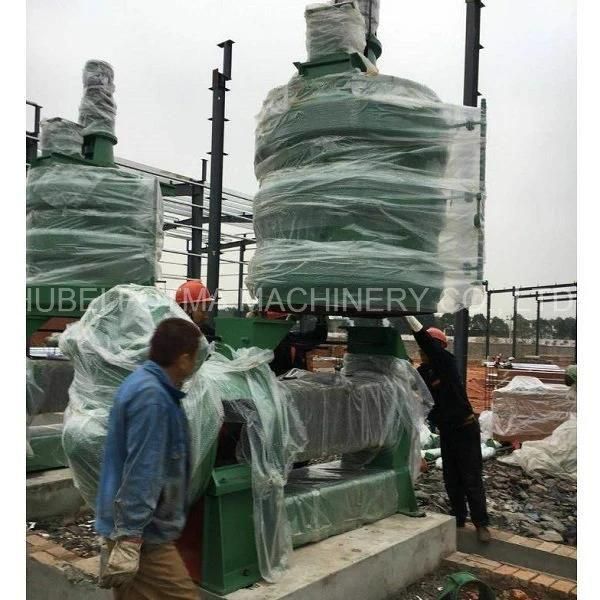

9. Installation site:

10.Why choose FOTMA?1.For more than a decade, with its excellent production technology and high-quality after-sales service, it has always been recognized and loved by users.2.Obtained many official promotion appraisals and won many national patents. The technology is continuously updated, the products are mature and reliable, and the technology always leads. 3.High oil output, clean and pure oil, good market efficiency. Original automation, intelligent technology, automatic electronic temperature control function, energy saving and high efficiency. 4.Original automation, intelligent technology, automatic electronic temperature control function, energy saving and high efficiency.5.FOTMA can provide a full set of technical support and perfect after-sales service, which is the first choice of urban and rural oil mills and small and medium-sized refineries.
11. Our Service:
---One year quality warranty for the machine and spare parts
--- Oversea engineers service for installation
--- Whole-life after-sales service and free consultation
---Customized requirements available
---Technician guide at the site.
---24Hr online service

12. FAQ
Q1:- What's your advantage? Why we choose you?
A:- 1. Above 20 years' experience of designing, manufacturing and exporting of the grain and oil processing machinery. We have the most professional techniques and team and more advantage in price.
      2. Over than 15-Years' Alibaba Gold Member. "Integrity, Quality, Commitment, Innovation" is our values.

Q2:- Can we mix different models and accessories together?
A:- You may mix different products or models in a single container but we would need to advise you on optimum loading and final capacity of your shipment.

Q3:- How do I visit you and the factory?
A:- You are welcomed to visit us and our factory at your convenience. We can pick you up at airport or train station and bring you to our factory . Let us know your schedule in details so we can arrange everything for you. Normally you need 3 days for an adequate visit to our factory.

Q4:- How can I become a dealer in my area?
A:- If you are qualified, you may apply for a dealership. We choose reliable partners for a long term business cooperation.

Q5:- Can I get an exclusive right for your machines in some territories?
A:- It depends on which country you are in. We have exclusive agents at several countries at this time. Most countries you can sell freely.

Q6:- After payment, how long will it take to get the machines we order?
A:- Normally 30-90 days after your payment (15-45 days for manufacturing, 15 - 45 days for delivery and shipment on sea)
