Electric Flat Die Feed Pellet Mill with Low Price
ZHENGZHOU YUFENG HEAVY MACHINERY CO., LTD.- Type：Flat Die Feed Machine
- Processing Object：Corn, Maize, Wheat Bran, Rice, Beans, etc.
- Processing Technics：Crushing-before-Mixing
- Grinding Equipment Type：Feed Hammer Mill
- Pellet Mill Type：Flat Die Pelletizer
- Condition：New
Base Info
- Model NO.：PM-200
- Power Source：Diesel Engine & Motor
- Material：Carbon Steel
- Power：7.5 Kw
- Certificate：ISO9001,Ce
- Weight：230kg
- Diameter：2-10mm
- Transport Package：Export Standard Packing by Wooden Case
- Specification：200-300kg,h
- Trademark：YUFCHINA
- Origin：China
- HS Code：8474802000
- Production Capacity：100 Sets Per Month
Description
Basic Info.
Model NO. PM-200 Power Source Diesel Engine & Motor Material Carbon Steel Power 7.5 Kw Certificate ISO9001/Ce Weight 230kg Diameter 2-10mm Transport Package Export Standard Packing by Wooden Case Specification 200-300kg/h Trademark YUFCHINA Origin China HS Code 8474802000 Production Capacity 100 Sets Per MonthProduct Description
Electric Flat Die Feed Pellet Mill with low priceWith the rapid development of feed pellets industry, flat die pellet mill becomes more and more popular in breeding industry. Featured with the unique advantages of simple structure, small area coverage, competitive price and low consumption, it is a good choice for small-scale industrial production and home use.

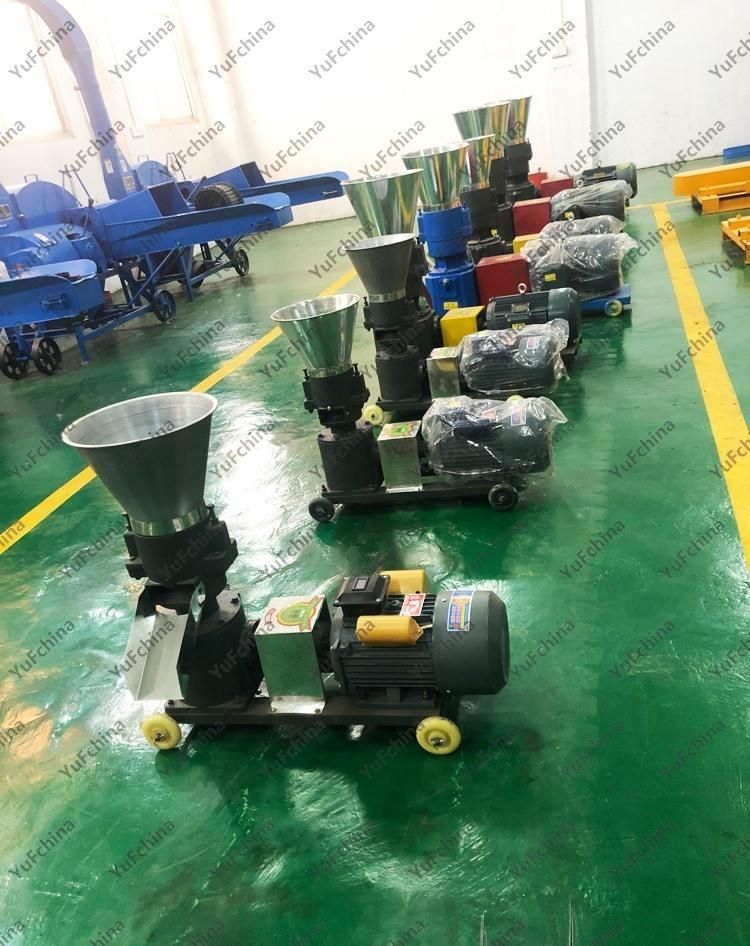

Introduction of Electric Flat Die Feed Pellet Mill
The Feed Flat Die Pellet Mill can be driving by electrical, diesel, and gasoline.It is mainly used for small scale plant for the animal and poultry feed pellets. The raw materials are easy to obtain, like corn, maize, wheat bran, rice, beans, etc. Driven by electric motor makes it more energy-saving and environmental friendly.
Electric Flat Die Feed Pellet Mill can be used for:
1. Producing feed pellets for animals like cattle, cow, chicken, rabbit, pig, etc.
2. Making bedding pellets for animal stalls from cardboard.
3. Processing biomass material and many other agro wastes into wood pellets for green fuel.
Features of Electric Flat Die Feed Pellet Mill

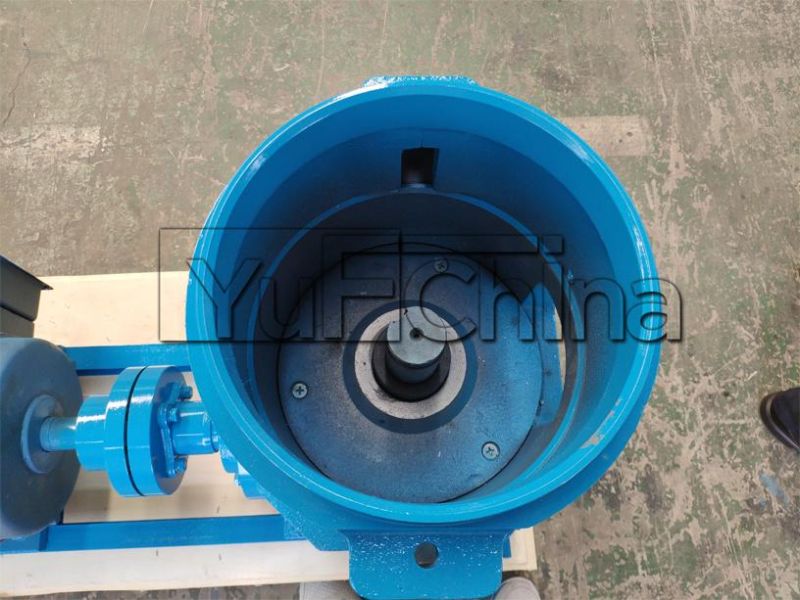

1. Flat Die pellet mill have two types by the rotating device, one is die rotating while another is rollers rotating.
2. Single machine can be running smoothly without other accessory.

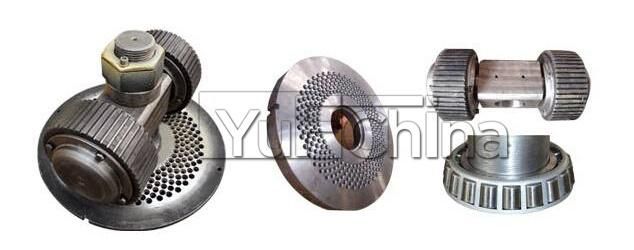

3. Main spare parts are die and rollers. Easy to change and maintenance.
Advantages of YUFCHINA Flat Die Pellet Mill
1. continuous smoothly running
2. cheap machine price with lower energy saving
3. lower running cost
| Model | Power | capacity for feed (kg/h) | capacity for biomass (kg/h) | Driving Transmission |
| PM-120 | 3kw (3phase) /2.2 kw (Single phase) | 60-100 | 40-80 | motor |
| PM-150 | 4 kw (3phase) | 90-120 | 50-100 | motor |
| PM-200 | 7.5 kw (3phase) | 200-300 | 80-120 | motor |
| PM-230 | 11 kw (3phase) | 300-400 | 120-200 | motor |
| PM-260 | 15 kw (3phase) | 400-600 | 160-250 | motor |
| PM-300 | 22 kw (3phase) | 600-800 | 250-320 | motor |
| PM-400 | 30 kw (3phase) | 900-1100 | 400-450 | motor |
| PM-500 | 55 kw (3phase) | 1200-1500 | 800-1000 | motor |
| PM-120 | 8 Hp | 60-100 | 40-80 | diesel engine |
| PM-150 | 8 Hp | 90-120 | 50-100 | diesel engine |
| PM-200 | 15 Hp | 200-300 | 80-120 | diesel engine |
| PM-230 | 22 Hp | 300-400 | 120-200 | diesel engine |
| PM-260 | 35 Hp | 400-600 | 160-250 | diesel engine |
| PM-300 | 55 Hp | 600-800 | 250-350 | diesel engine |
| PM-400 | 55 Hp | 900-1100 | 400-450 | diesel engine |
Why Choose YUFCHINA Flat Die Pellet Mill
1. Machine with simple structure with stable operation.
2. YuFChina will supply reasonable machine configuration.
3. YuFChina will give you the best solution with good price.
4. YuFChina supply the spare parts all the year with favorable price.
5. YuFChina supply the good sales service, like operation manual, maintenance video, installation drawing and connection flowchart.
