• Model NO.：SZLH
• Applicable Materials Shape：Powder
• Delivery Time：20-30days
• Motor：Siemens(Beide)
• Bearing：NSK
• Dia of The Die：2-8mm
• Oil Seal：Sog
• Conditioner：Stainless Steel
• Transport Package：Iron Pallet
• Specification：5T
• Trademark：APEX
• Origin：China
• HS Code：8436100000
• Production Capacity：2-12

Basic Info.

Model NO. SZLH Applicable Materials Shape Powder Delivery Time 20-30days Motor Siemens(Beide) Bearing NSK Dia of The Die 2-8mm Oil Seal Sog Conditioner Stainless Steel Transport Package Iron Pallet Specification 5T Trademark APEX Origin China HS Code 8436100000 Production Capacity 2-12

Product Description

ABOUT US
LIYANG APEX designs, manufactures and trades of feed machines, biofuel machines complete projects and spare parts.
APEX has implemented a strict and comprehensive system to monitor and maintain quality, so each and every APEX product can exceed the expectations of our clients. APEX has a very experienced  team in the areas of machinery production, engineering design and assembly. All of APEX products will be extensively inspected prior to shipment.

PARAMETERS
1. Gear directly-connecting driving is adopted for high efficiency;
2. Full stainless steel feeder; variable pitch anti-bridging structure; Imported FC control;

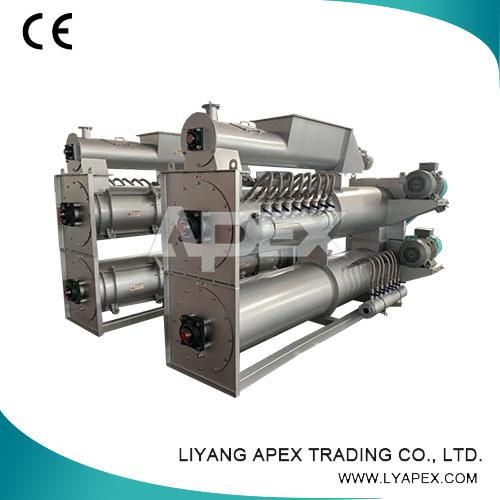

3. Full stainless steel conditioner with axial steam spraying extends the conditioning and cooking time;
4. Main gear and pinion shaft adopt the carbonizing quenching with high accuracy; smooth driving, low noise and long service life;
5. Gearbox and driving holes' accuracy are guaranteed by specialized casting supplier and CNC;
6. The bearing and oil seal in the main drive are imported, and a specialized lubrication oil return system is available to ensure reliable bearing lubrication;
7. 3pcs of quick disassembling type precisely-cast die clamps are adopted to connect the die and quill flange, resulting in convenient and quick disassembling of die;
8. Pellet chamber door and feed chute are fully made of stainless steel with high anti-corrosion ability and long service life;
9. The connection between motor and gearbox adopts new type S-shape spring coupling for more convenient disassembling and assembling and more reliable use..
Main Technical Parameter

Model	Output (t/h)	Main Power (kW)	Power Of Conditioner (kW)	Power Of Feeder(kW)	ID Of Die (mm)	Pellet Size (mm)
SZLH25	0.5-2	15/22	1.5	0.55	¢250	¢2-18
SZLH320	2-5	37/45	2.2	0.55/0.75	¢320	¢2-18
SZLH400	3-12	75/90	5.5	1.5	¢400	¢2-18
SZLH420	3-14	90/110	5.5	1.5	¢420	¢2-18
SZLH508	6-20	110/132/160	7.5	1.5/2.2	¢508	¢2-18
SZLH400a	3-12	75/90	5.5	1.5	¢400	¢2-18
SZLH420a	3-14	90/110	5.5	1.5	¢420	¢2-18
SZLH400b2	3-12	75/90	5.5×2	1.5	¢400	¢2-18
SZLH420b2	3-14	90/110	5.5×2	1.5	¢420	¢2-18
SZLH558	10-25	185	7.5	2.2	¢572	¢2-18
SZLH578	10-28	200	7.5	2.2	¢572	¢2-18

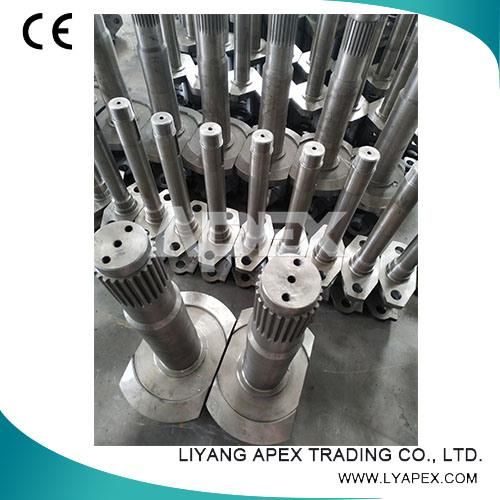

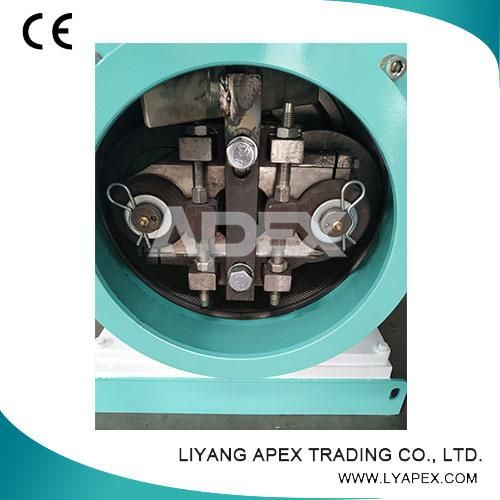

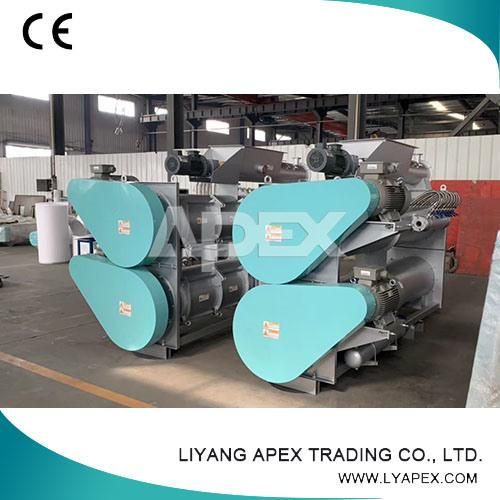

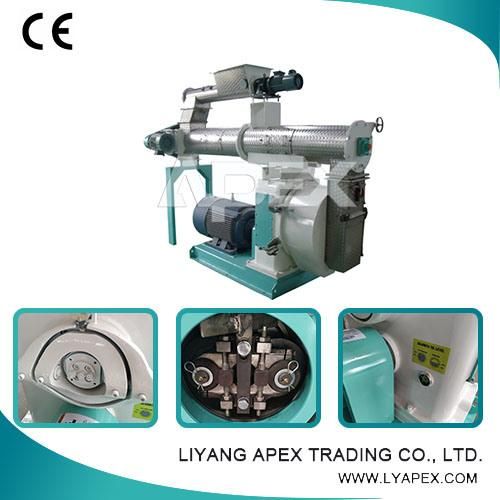

DETAIL PHOTOS

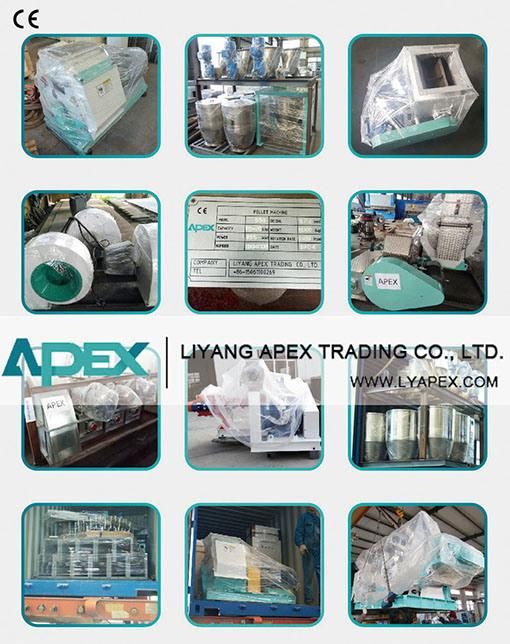

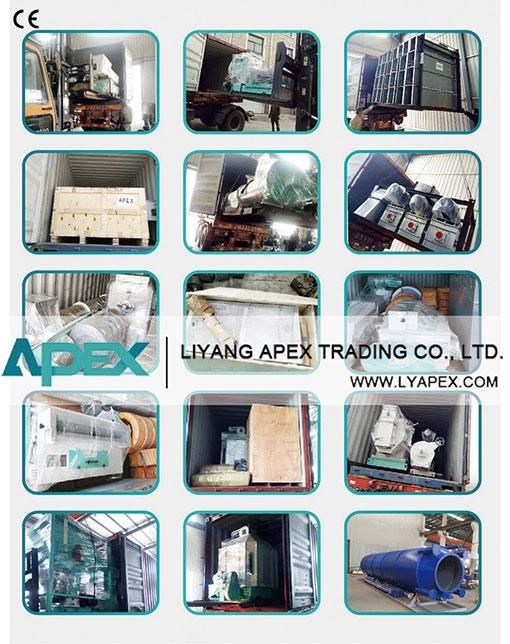

EXPORTED EQUIPMENT
