• Model NO.：4HZL-304
• Portable Harvester Type：Backpack Type
• Certification：QS, ISO9001:2008
• Color：Red
• Condition：New
• Application Field：Agriculture
• Working Width：3040mm
• Power：180HP
• Delivery Time：20days
• Working Speed：6 Km,Hour
• Transport Package：40′ Contaienr Can Load 1 Set
• Specification：SGS
• Trademark：SH
• Origin：Shangdong
• HS Code：8433510090
• Production Capacity：3000 Sets,Year

Basic Info.

Model NO. 4HZL-304 Portable Harvester Type Backpack Type Certification QS, ISO9001:2008 Color Red Condition New Application Field Agriculture Working Width 3040mm Power 180HP Delivery Time 20days Working Speed 6 Km/Hour Transport Package 40′ Contaienr Can Load 1 Set Specification SGS Trademark SH Origin Shangdong HS Code 8433510090 Production Capacity 3000 Sets/Year

Product Description

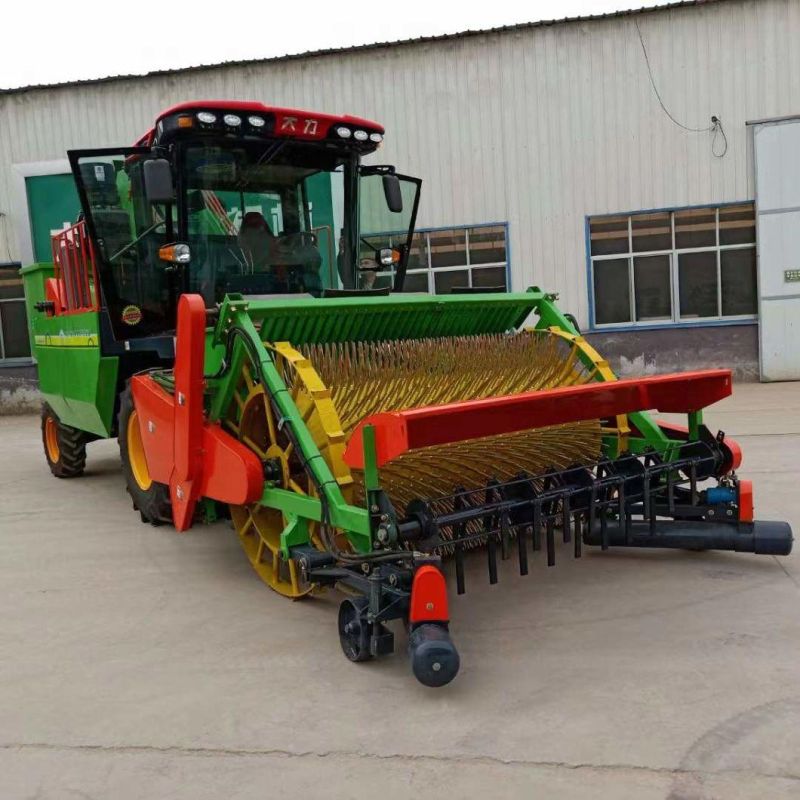

SH Series 4HZL-304   Seed melon harvester Feature and Specification

NO	ITEM	UNIT	DETAILS
1	MODEL	/	4HZL-304 Self-propelled seed melon seed harvester
2	TYPE	/	Wheel type self-propelled
3	Structure weight	kg	8800
4	Dimensions (L×W×H)	mm	Working status: 8700×3250×3350
5	Matching engine	hp	180
6	Engine Rated speed r	r/min	2200
7	working width	mm	3040
8	Feeding methods	/	Barbed roller fork
9	Roller diameter	mm	1500
10	Roller working width	mm	2700
11	Braking melon machine type	/	Blade type
12	Separating Rolling Type	/	Spiral bow tooth type
13	Working length of the separating roller	mm	2600
14	Working diameter of the separating roller	mm	900
15	Cleaning roller type	/	Dial twisted cage Mode
16	Cleaning roller length	mm	1900
17	Cleaning roller diameter	mm	330
18	Sieve type	/	Round hole type
19	Grain tank volume	M3	2.1
20	Guide wheel track	mm	2020
21	Driving wheel track	mm	2100
22	Guide wheel	/	10.0/75-15.3
23	Driving wheel	/	15-24
24	Wheelbase	mm	3500
25	Minimum ground clearance	mm	360
26	Cabin type	/	Normal with AC(optional)
27	Transmission type	/	CVT
28	Braking type	/	Friction disc
29	Unload height	mm	2080

Structural features

1. Compact structure, good mobility, no manual to clear the way, can complete corn crop snapping, transportation, bract stripping ear, ear closed container, straw chopper or collect the whole process.
2. it pulled the chain using forced feeding technology to solve a variety of problems spacing adaptability.
3. Pull stalk rolls, snapping plate Abstract simple ear device structure, small size, light weight, low grain loss, high production efficiency.
4. High efficiency automatic dial transdermal devices, straw chopped to field devices.
5. Pre-peeling machines, branches dial skin, to prevent clogging
6. It is the shortest, lightest, most full-function self-propelled   harvester.
7. Adjustable front and rear tracks
8. Dual link, slider lift mechanism, increase stability and lifting height of the cutting table.
9. Hydraulic steering flexible and comfortable operation
10. Rear cargo hopper, hydraulic unloading the corn
11. Main gear lever on the right side of the steering wheel, convenient and comfortable for changing gear.
