• Model NO.：4QZ-1400
• Portable Harvester Type：Backpack Type
• Certification：QS, ISO9001:2008
• Color：Red
• Condition：New
• Application Field：Agriculture
• Working Width：1400mm
• Power：100HP
• Delivery Time：20days
• Working Speed：6 Km,Hour
• Transport Package：40′ Contaienr Can Load 2 Set
• Specification：SGS
• Trademark：SH
• Origin：Shangdong
• HS Code：8433510090
• Production Capacity：3000 Sets,Year

Basic Info.

Model NO. 4QZ-1400 Portable Harvester Type Backpack Type Certification QS, ISO9001:2008 Color Red Condition New Application Field Agriculture Working Width 1400mm Power 100HP Delivery Time 20days Working Speed 6 Km/Hour Transport Package 40′ Contaienr Can Load 2 Set Specification SGS Trademark SH Origin Shangdong HS Code 8433510090 Production Capacity 3000 Sets/Year

Product Description

Small/mini/micro Combining/combine/crawler/ Track Type Belt Type Corn Harvester

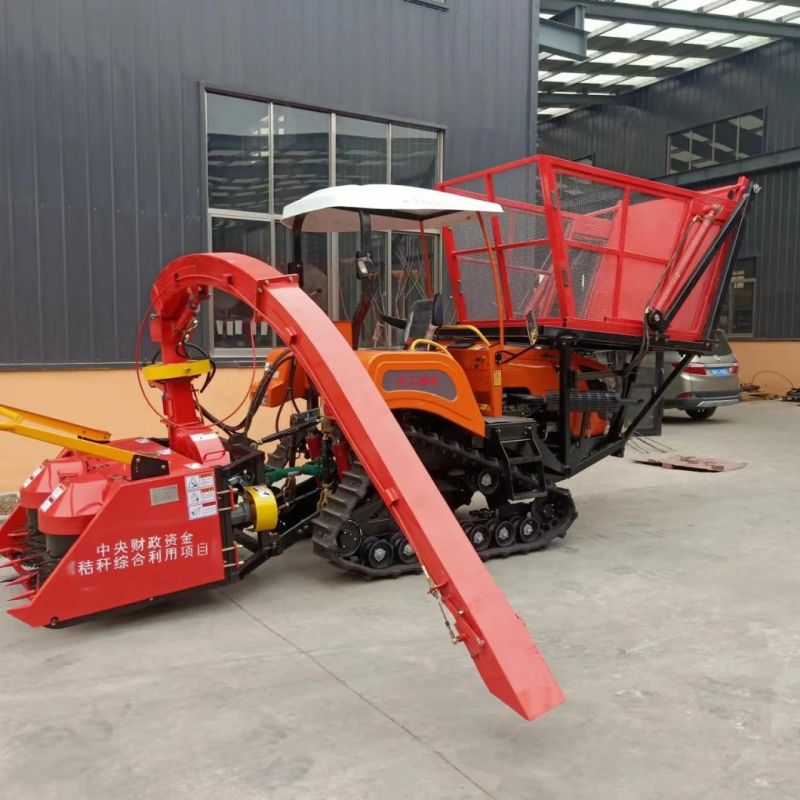

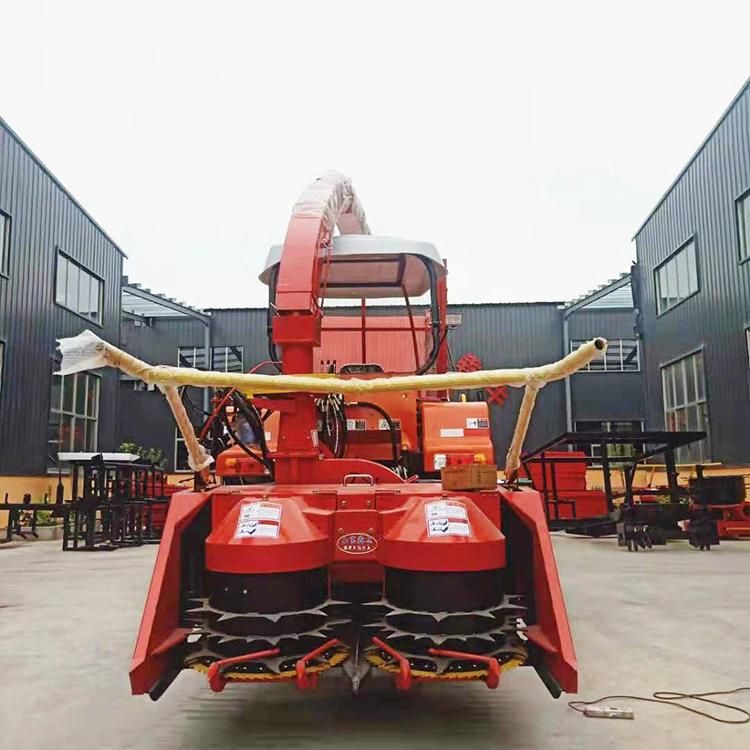

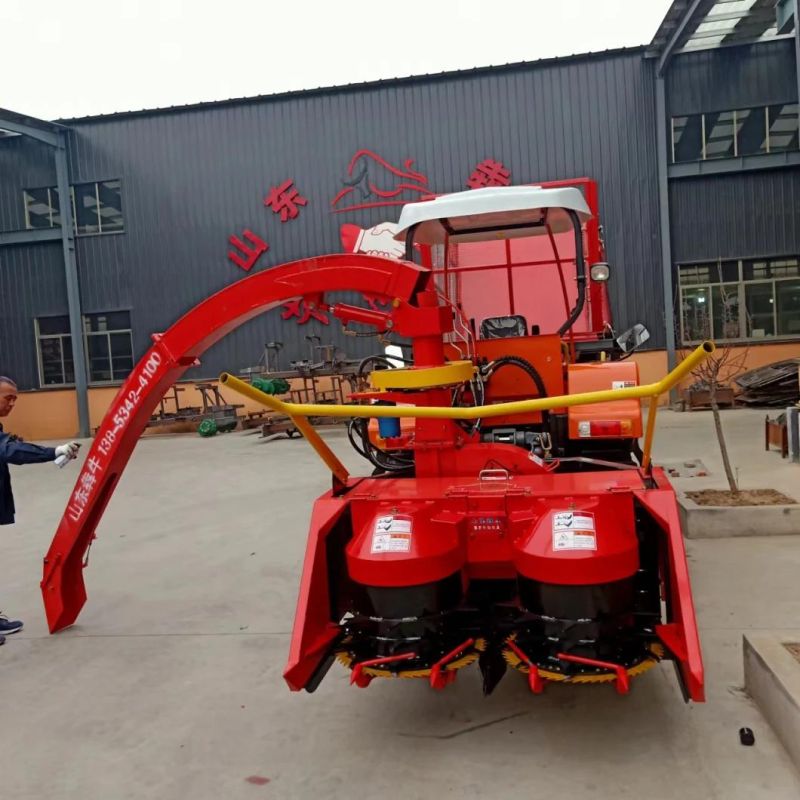

SH Series 4QZ-1400   Crawler Green harvester Feature and Specification

NO	ITEM	UNIT	DETAILS
1	MODEL	/	4QZ-1400 Green harvester
2	TYPE	/	Track type
3	Structure type	/	Disc cutter
4	Dimensions (L×W×H)	mm	Working status: 5600×1600×3500
5	Structural weight	kg	3200
6	Matching engine	/	YD4Z90C1
7	Engine rated power	hp	100
8	Engine Rated speed	r/min	2200
9	working width	mm	1400
10	Minimum stubble height	mm	50
11	Working speed	Km/h	4
12	productivity	Ton/h	>12
13	Straw Chopping Mechanism type	/	Disc type
14	Rotor diameter	mm	692
15	Spindle speed	r/min	1000
16	throwing height	mm	3500
17	throwing distance	m	>6
18	Rotation angle of throwing	degree	360
19	Track width	mm	400
20	Track center distance	mm	1100
21	Cutting size	mm	5-15

Structural features
1. Compact structure, good mobility, no manual to clear the way, can complete corn crop snapping, transportation, bract stripping ear, ear closed container, straw chopper or collect the whole process.
2. it pulled the chain using forced feeding technology to solve a variety of problems spacing adaptability.
3. Pull stalk rolls, snapping plate Abstract simple ear device structure, small size, light weight, low grain loss, high production efficiency.
4. High efficiency automatic dial transdermal devices, straw chopped to field devices.
5. Pre-peeling machines, branches dial skin, to prevent clogging
6. It is the shortest, lightest, most full-function self-propelled two-row harvester.
7. Adjustable front and rear tracks
8. Dual link, slider lift mechanism, increase stability and lifting height of the cutting table.
9. Hydraulic steering flexible and comfortable operation

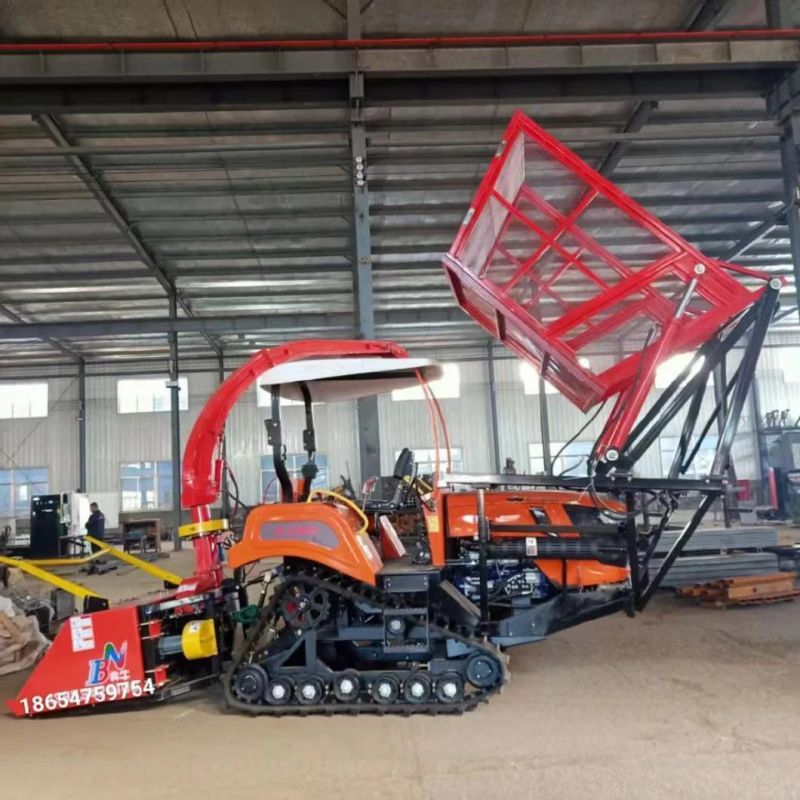

10. Rear cargo hopper, hydraulic unloading the corn
11. Main gear lever on the right side of the steering wheel, convenient and comfortable for changing gear.
