Nfm Series Domestic Irrigation Pump
FUJIAN ELESTAR MOTOR CO., LTD.- Usage:Irrigation
- Type:Irrigator
- Power Source:Electricity
- Drainage & Irrigation Mode:Subsurface Irrigation Equipment
- Pump Type:Centrifugal Pump
- Material:Metal
Base Info
- Model NO.:NFM
- Ground Drainage and Irrigation Machinery Type:Pumping Irrigation
- Certification:ISO9001:2008, CCC, CE, QS, RoHS
- Condition:New
- Application Field:Agriculture, Fisheries, Municipal Water Supply
- Color:as Your Lie
- Voltage:110V,220V
- Frency:50Hz,60Hz
- Shaft:Stainless Steel ,Steel
- Impeller:Brass ,PPO,Stainless Steel
- Kw:0.5HP-2.0HP
- Pump Body:Cast Iron
- Packing:Carton with Two PCS Foam
- Wire:Copper,Aluminium
- Transport Package:Sea Worthy Carton (with Foam )
- Trademark:ELESTAR
- Origin:China
- HS Code:8413709990
- Production Capacity:50000-60000,Month
Description
Basic Info.
Model NO. NFM Ground Drainage and Irrigation Machinery Type Pumping Irrigation Certification ISO9001:2008, CCC, CE, QS, RoHS Condition New Application Field Agriculture, Fisheries, Municipal Water Supply Color as Your Lie Voltage 110V/220V Frency 50Hz/60Hz Shaft Stainless Steel /Steel Impeller Brass /PPO/Stainless Steel Kw 0.5HP-2.0HP Pump Body Cast Iron Packing Carton with Two PCS Foam Wire Copper/Aluminium Transport Package Sea Worthy Carton (with Foam ) Trademark ELESTAR Origin China HS Code 8413709990 Production Capacity 50000-60000/MonthProduct Description

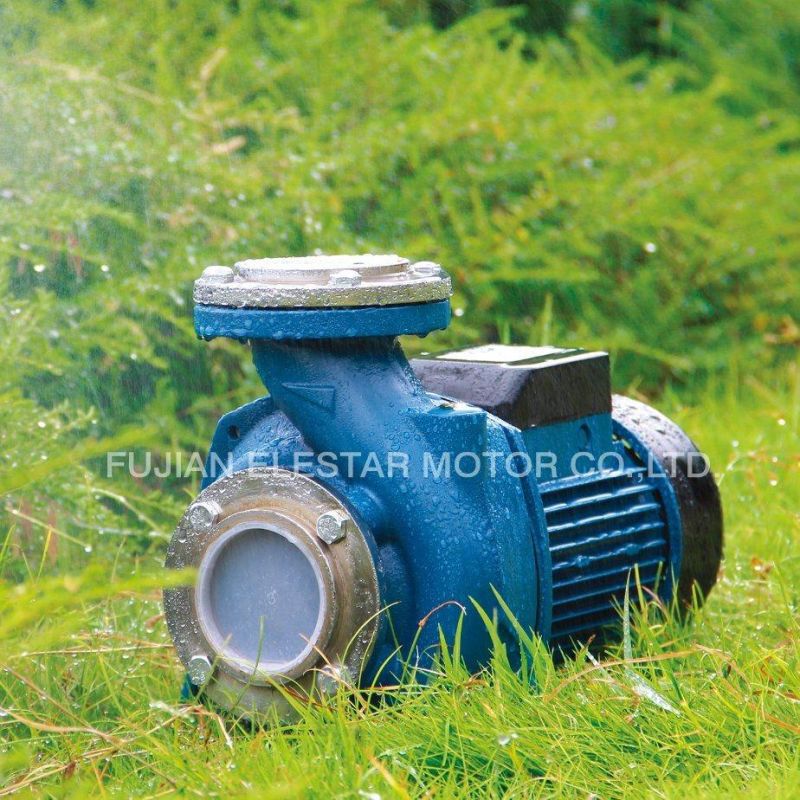

NFM Series Centrifugal irrigation pumpNFM series centrifugal pumps are single stage, high efficient pumps, consisted of a miniature motor and a single impeller centrifugal pump. They have good performance in big capacity and high head.
They are widely use in well-pumping, water supplying, decanting, mixing and irrigating for civil, industry and agriculture, etc.
OPERATING CONDITIONS
Liquid temperature up to 60°C
Ambient temperature up to 40°C
Total suction lift up to 9m
Continuous duty
CONSTRUCT
PUMP
Pump Body:Cast Iron
Impeller:Brass
Mechanical Seal:Carbon/Ceramic/Aluminum with Brass Insert
MOTOR
Single Phase
Heavy Duty Continuous Work
Motor Housing:Aluminum
Shaft:Carbon Steel/Stainless Steel
Insulation:Class B/Class F
Protection:IP44/IP54
Cooling:External Ventilation
Product Data
Model | Power | Q.Max(l/min) | H.max(m) | Pipe Dia | L*W*H(mm) | N.W(kg) |
NFM-100 | 1hp/0.75kw | 220 | 17 | 1.5"*1.5" | 350*180*215 | 13.2 |
NFM-150T | 1.5hp/1.1kw | 380 | 16 | 2"*2" | 370*210*250 | 18.1 |
NFM-200T | 2hp/1.5kw | 400 | 20 | 2"*2" | 370*210*250 | 19.3 |
NFM-300T | 3hp/2.2kw | 1000 | 19 | 3"*3" | 435*265*350 | 41 |
Packing of Product:
water pump could be packed:
* in strong color carton box with two foams fixed.
* in neutral carton box with two foams fixed.
* in cellular carton box with two foams fixed.
FAQ:
Q: Can you do OEM?
A: Yes, we can.
Q: How about the warranty?
A: 1 year.
Q: How about the MOQ?
A: Normally, it is 100PCS for each model.
Q: How about the delivery time?
A: Normally, 35 days. But it depends on your order quantity.
Q: Where is your loading port?
A: Fuzhou, China port or Ningbo,China port.
Q: What certificate do your product have?
A: We have CE, GS, UL, RoHS certificate. Most of our products are CE standard.
Q: Are you a manufactuer or trading company
A: We are a manufacturer specialize in water pump and electrical motor more than 10 years.
