• Model NO.：DK
• Ground Drainage and Irrigation Machinery Type：Pumping Irrigation
• Certification：ISO9001:2008, CCC, CE
• Condition：New
• Application Field：Agriculture, Livestock, Aquaculture, Fisheries, Forestry
• Pump Body：Cast Iron
• Voltage：110V,220V
• Frequency：50Hz,60Hz
• Wire：Copper,Aluminium
• Color：as Your Like
• Kw：0.37-1.5kw
• Shaft：Stainless Steel ,Steel
• Packing：Carton with Foam
• Transport Package：Sea Worthy Carton (with Foam )
• Trademark：ELESTAR
• Origin：China
• HS Code：8413709990
• Production Capacity：50000-60000,Month

Basic Info.

Model NO. DK Ground Drainage and Irrigation Machinery Type Pumping Irrigation Certification ISO9001:2008, CCC, CE Condition New Application Field Agriculture, Livestock, Aquaculture, Fisheries, Forestry Pump Body Cast Iron Voltage 110V/220V Frequency 50Hz/60Hz Wire Copper/Aluminium Color as Your Like Kw 0.37-1.5kw Shaft Stainless Steel /Steel Packing Carton with Foam Transport Package Sea Worthy Carton (with Foam ) Trademark ELESTAR Origin China HS Code 8413709990 Production Capacity 50000-60000/Month

Product Description

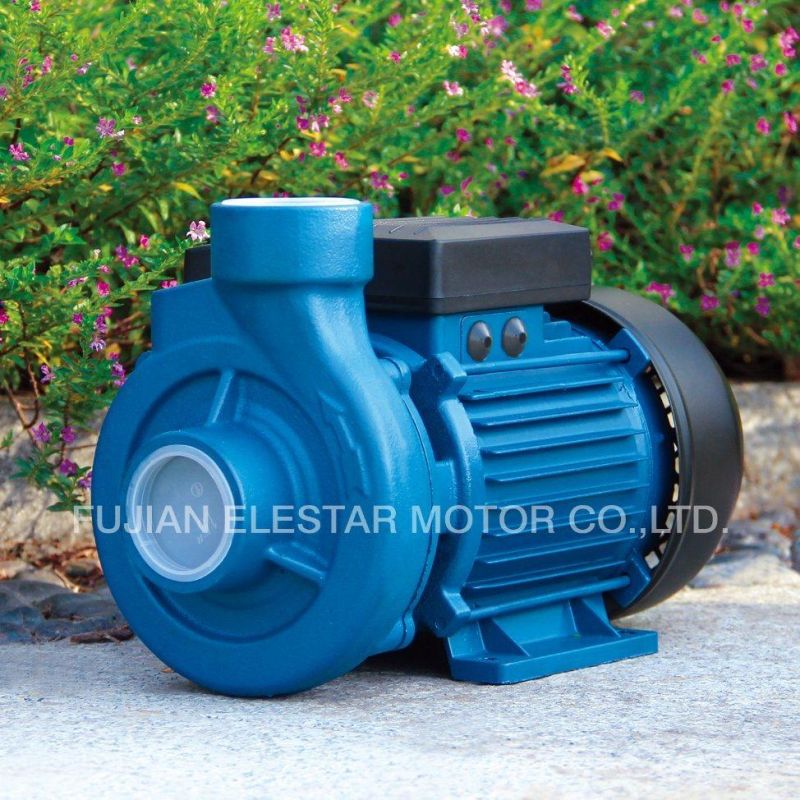

DK Series Centrifugal Pump
Centrifugal pumps with single impeller are able to offer high flow rates, provide smooth, not pulsating delivery, and regulate the flow rare over a wide range without damaging the pump.
For the correct functioning of the pump,, use clean water, or nonaggressive liquids charged with small solid impurities.
To be used in flow irrigation system in gardening, agriculture and industrial fittings.
The open impeller design allows the pump to handle slightly dirty water.

OPERATING CONDITIONS
Liquid temperature up to 60°C
Ambient temperature up to 40°C
Total suction lift up to 9m
Continuous duty

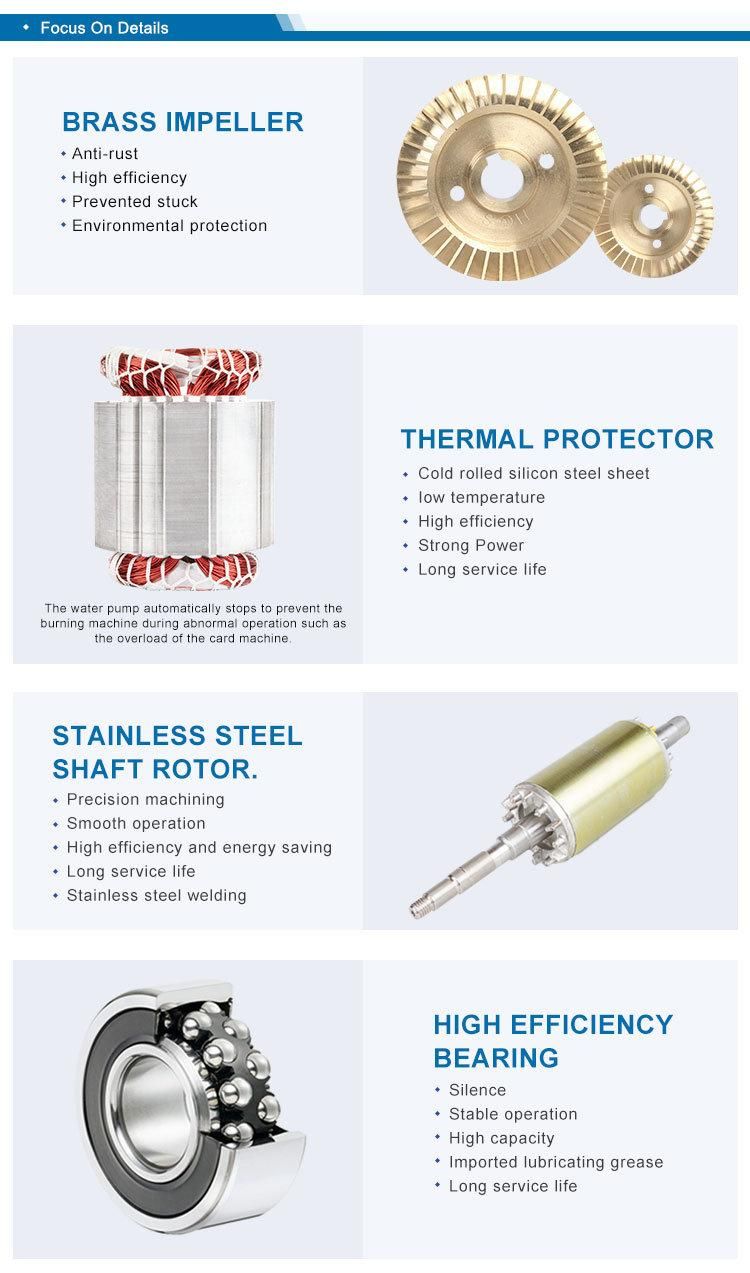

CONSTRUCT
PUMP
Pump Body:Cast Iron
Impeller:Brass
Mechanical Seal:Carbon/Ceramic/Aluminum with Brass Insert

MOTOR
Single Phase
Heavy Duty Continuous Work
Motor Housing:Aluminum
Shaft:Carbon Steel/Stainless Steel
Insulation:Class B/Class F
Protection:IP44/IP54
Cooling:External Ventilation

Product Data

Model	Power	Q.Max(l/min)	H.max(m)	Pipe Dia
1DK-14	0.5hp/0.37kw	75	14	1"*1"
1DK-20	0.75hp/0.55kw	90	18	1"*1"
1.5DK-20	1hp/0.75kw	180	20	1.5"*1.5"
CM-20	1hp/0.75kw	260	20	1.5"*1.5"

Packing of Product:

    water pump could be packed:
   * in strong color carton box with two foams fixed.
   * in neutral carton box with two foams fixed.
   * in cellular carton box with two foams fixed.
