• Model NO.：SKJZ1800
• Bulking Machine Type：Twin Screw Bulking Machine
• Expanding Method：Wet Expansion
• Condition：New
• Applicable Materials Shape：Powder
• Dimension(L*W*H)：6*4*8m
• Capacity：0.5-1.5t,H
• Power(W)：43.5kw
• Voltage：315V, 60Hz
• After-Sales Service Provided：Engineers Available to Service Machinery Overseas
• Transport Package：Iron Pallet and Soft Guard
• Specification：CE, ISO, SGS
• Trademark：FDSP
• Origin：China
• HS Code：84361000
• Production Capacity：0.5-1.5t,H

Basic Info.

Model NO. SKJZ1800 Bulking Machine Type Twin Screw Bulking Machine Expanding Method Wet Expansion Condition New Applicable Materials Shape Powder Dimension(L*W*H) 6*4*8m Capacity 0.5-1.5t/H Power(W) 43.5kw Voltage 315V, 60Hz After-Sales Service Provided Engineers Available to Service Machinery Overseas Transport Package Iron Pallet and Soft Guard Specification CE, ISO, SGS Trademark FDSP Origin China HS Code 84361000 Production Capacity 0.5-1.5t/H

Product Description

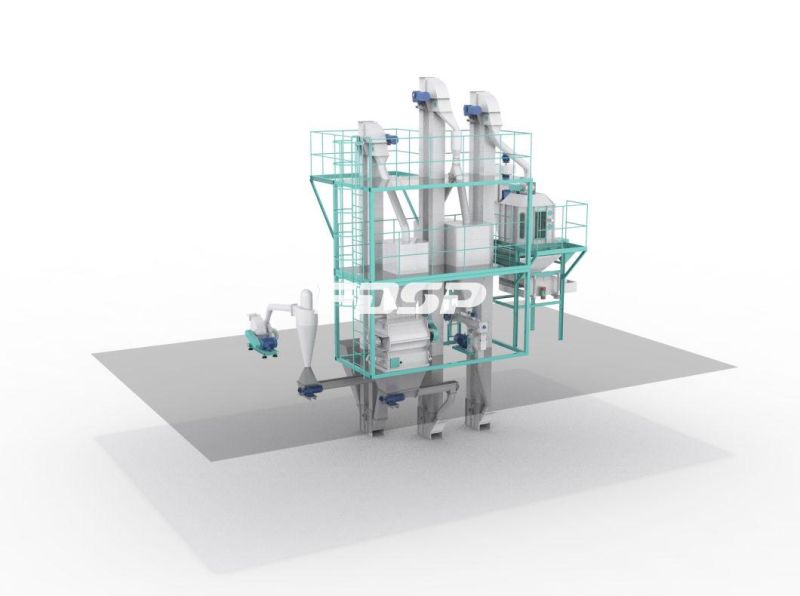

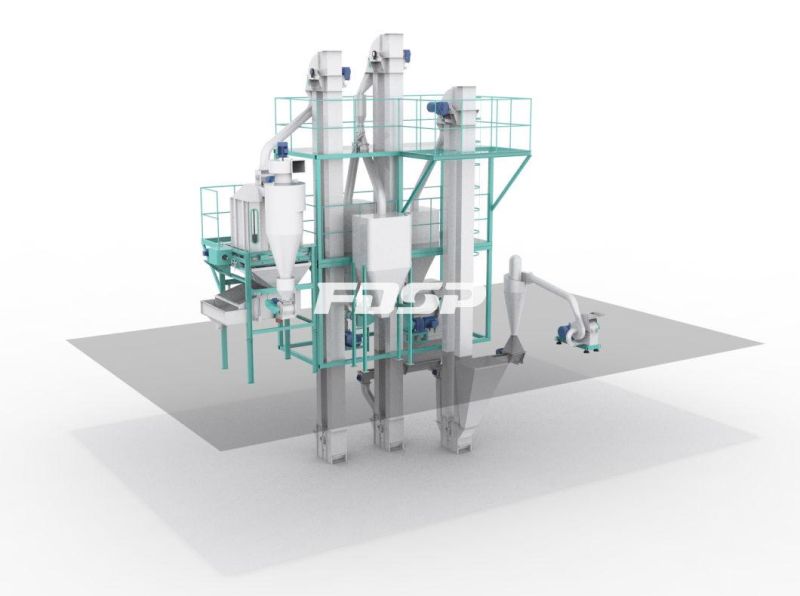

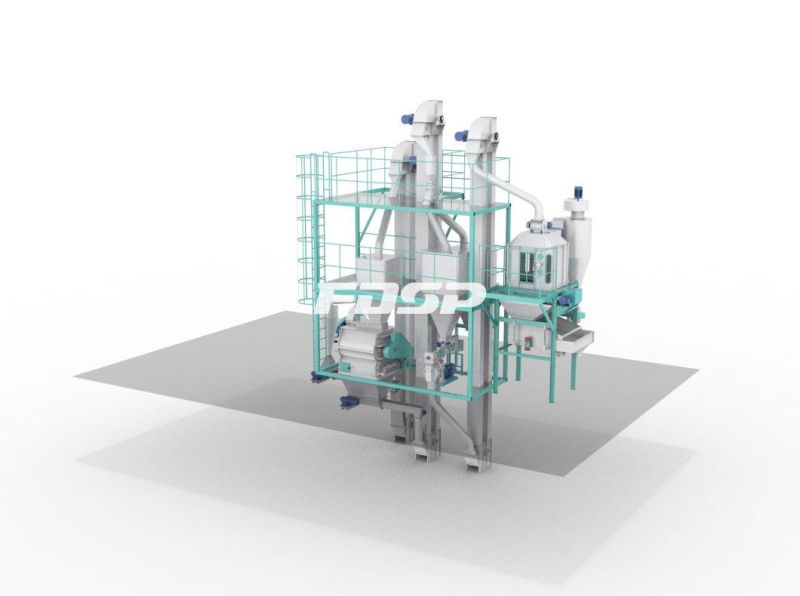

Unique Advantages FDSP small feed mill plant
Definition of 'feed set':
Feed set is short for manual feeding small feed production set, of which the capacity is usually less than 5 tons per hour. It takes modular design to make it easier to load, ship and install. Also, this feed set can save budget and get repaid more quickly. In this modular structure, feed set takes up less area, need lower requirements for workshop, and costs less for basement investment. Also, buyers can customize according to their specific needs. Feed set is particularly suitable for small feed plants or farms.

Brief introduction of processing flow:
SKJZ1800 feed set takes manual way of adding raw materials. It's designed capacity is 1.5-2T/H for powder feed and 0.8-1T/H for pellet feed. During the processing, raw materials will be pre-cleaned and pre-weighed by hand. If the materials need grinding, they will be put into the hammer mill directly by lot. During the grinding process, workers feed the hammer mill by hand. After grinding, the grinded materials and other materials will be put together into the production line according to the formula to be mixed. The materials having been mixed can either be sent directly into product bin as powder feed or be sent into pelletizing process to be pelletized and cooled to be pellet feed, which need manual scaling and packing.
The total power of this feed set is about 75kw, taking an area of 10*5.5*7m, equipped with 0.2T boiler. The whole feed set takes joint frame that is in tight design, reasonable structure and is eco-friendly. Also, the feed set can be specially designed according to buyers needs.

Introduction of technical features and processes
Raw material receiving and grinding process:
Taking integrated hammer mill, manual feeding, centrifugal output by cyclone, this technique is both easy and low-cost, suitable for multiple raw material grinding of small capacity.
Grinding machine: SFSP50, 18.5KW, designed capacity 1.5-2T/H.

Mixing process: Above the mixer, there is a bin for mixing that can make the production continuous. Materials having been mixed can be sent to bin for pelletizing or product bin, which satisfied the production need of both powder feed and pellet feed.
Mixing machine: Double shaft paddle mixer FHSJ0.5, 5.5KW, 250KG/LOT, designed capacity 1.5-2T/H.

Pelletizing process: taking a pellet with a single conditioner, it is suitable for producing ordinary poultry feed and ruminant feed; after being pelletized, the feed will be sent by elevator directly into cooling sieve and be packed manually.
Pelletizing machine: Pellet Mill SZLH25, 15KW, designed capacity 0.8-1T/H(¢3.5 ordinary chicken feed formula)
Cooling machine: Counter flow cooling sieve SNSZ120, designed capacity 1-2T/H.

Auxiliary Process: equipped with liquid adding system, oil can be added in mixer to improve the palatability of feed; equipped with air compressor, which provide compressed air for pneumatic parts of the production line.
