• Model NO.：EW-1000
• Condition：New
• Control Mode：Automatic Control
• Automatic Egg Turning：220V-240V. 50Hz
• Automatic Temperature Control：0.1
• High Hatching Rate：More Than 96%
• Automatic Humidity Control：0.1% Rh
• Touch Switches：Easy to Operation
• Materail：Color Iron Sheet
• Color：Yellwo
• Low Mortality：High Hatchability
• CE Compliant：12 Months Warranty
• Transport Package：Foam Protection Inside, Carton Package Outside.
• Specification：CE Approved
• Trademark：EDWARD EGG INCUBATOR
• Origin：Nanchang, China
• HS Code：84362100
• Production Capacity：2000 Sets Per Month

Basic Info.

Model NO. EW-1000 Condition New Control Mode Automatic Control Automatic Egg Turning 220V-240V. 50Hz Automatic Temperature Control 0.1 High Hatching Rate More Than 96% Automatic Humidity Control 0.1% Rh Touch Switches Easy to Operation Materail Color Iron Sheet Color Yellwo Low Mortality High Hatchability CE Compliant 12 Months Warranty Transport Package Foam Protection Inside, Carton Package Outside. Specification CE Approved Trademark EDWARD EGG INCUBATOR Origin Nanchang, China HS Code 84362100 Production Capacity 2000 Sets Per Month

Product Description

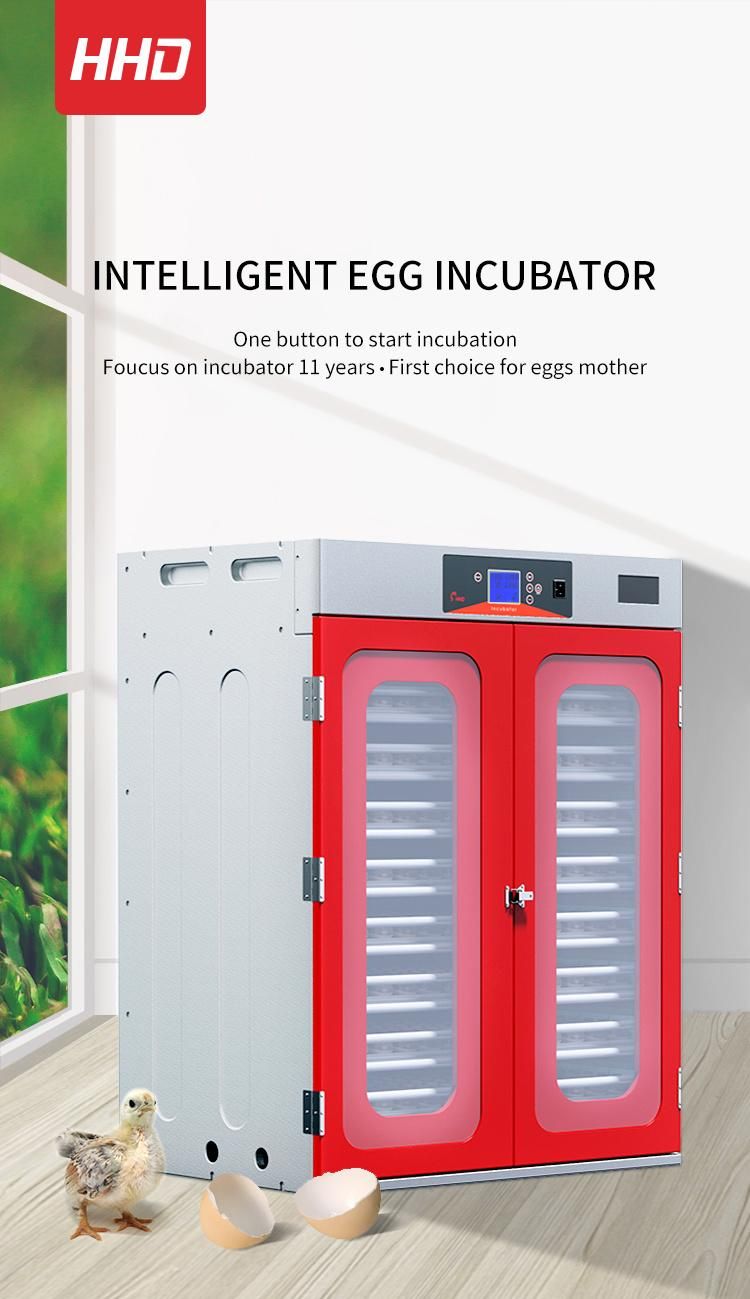

          CE Certificate Hhd Chinese-Red 1000 Fully Automatic Chicken Egg Incubator 3 Years Warranty Functions:

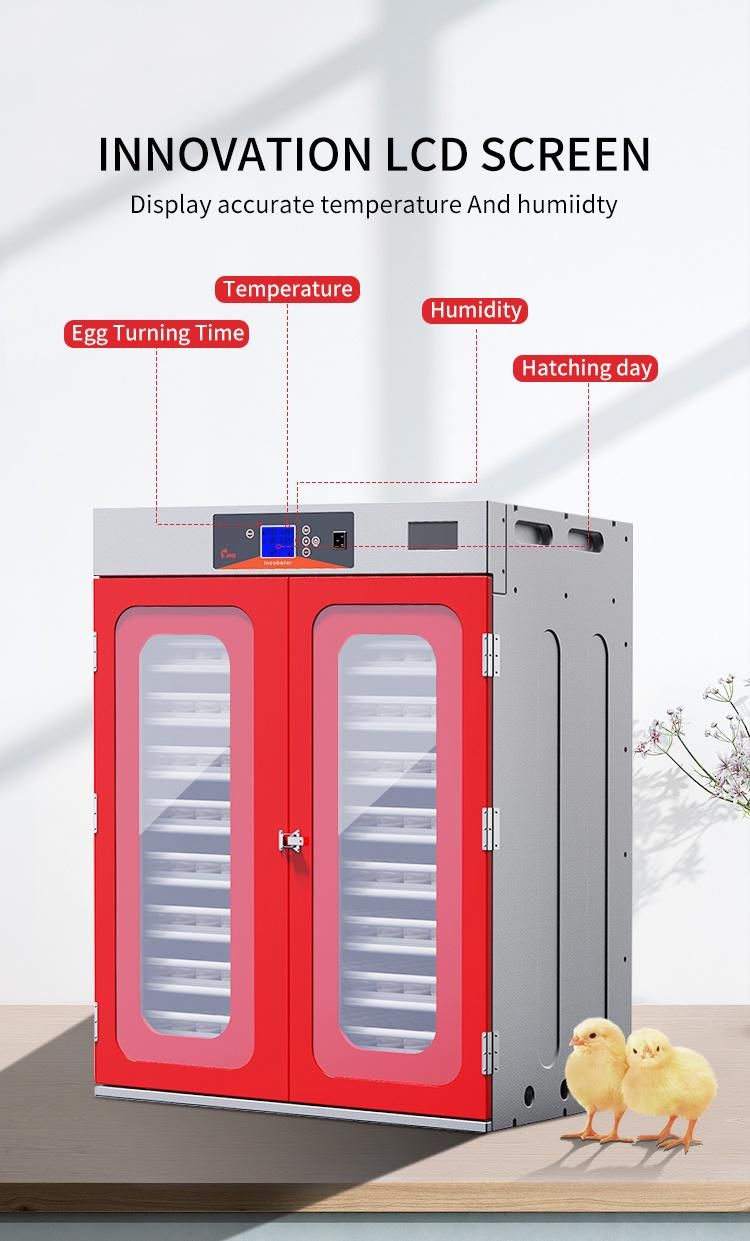

1.Innovative big LCD screen: The incubator is equipped with an high-end LCD screen,which is capable of intuitive display temperature,humidity,hatching day,egg turning time,digital temperature control, this all allows for efficient monitoring and close care for easy operation.
 2.Double layers PE raw material:Durable and non-deforming easily during long distance transportation

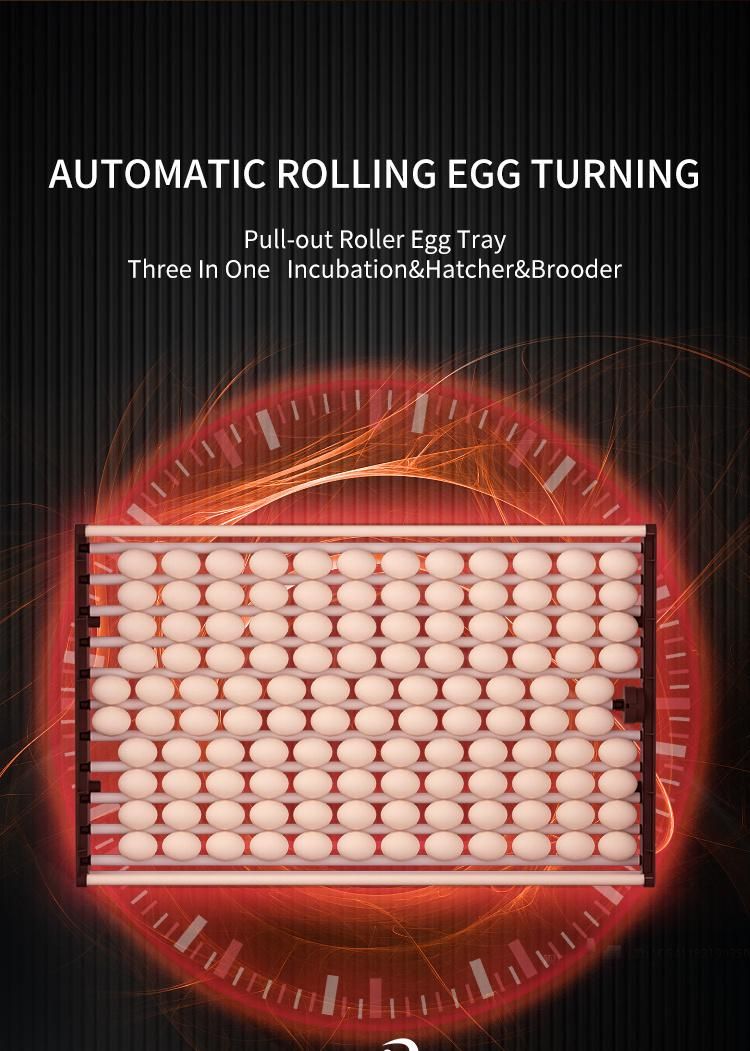

3.Drawable roller egg tray:It is made for all sorts of chicks, ducks, quails, gooses, birds, pigeon, etc. It can accommodate 1000 normal size chicken eggs when hatching. If you are using small size, it will accommodate more. Easy to use and clean, save your time.

4.Automatic Turning Eggs:The auto turners automatically turn the eggs around every 2 hours to improve hatching rate. The auto rotate egg turner saves the times and hassle of constantly having to open the incubator avoid releasing the precious humidity.Also auto turn feature allows for less human touching and decreases the chance of spreading germs or contaminates.

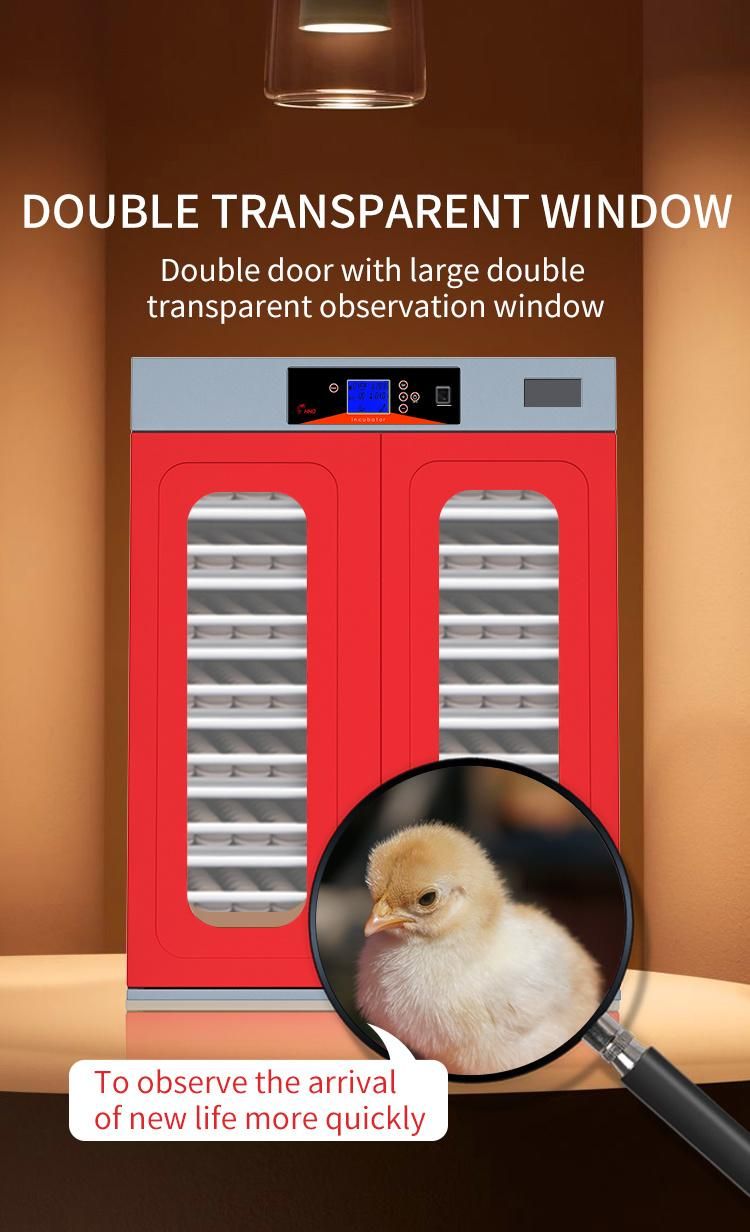

5.Visible double layers observation window:It supports convenient observation during hatching process without open the incubator avoid releasing temperature and humidity.

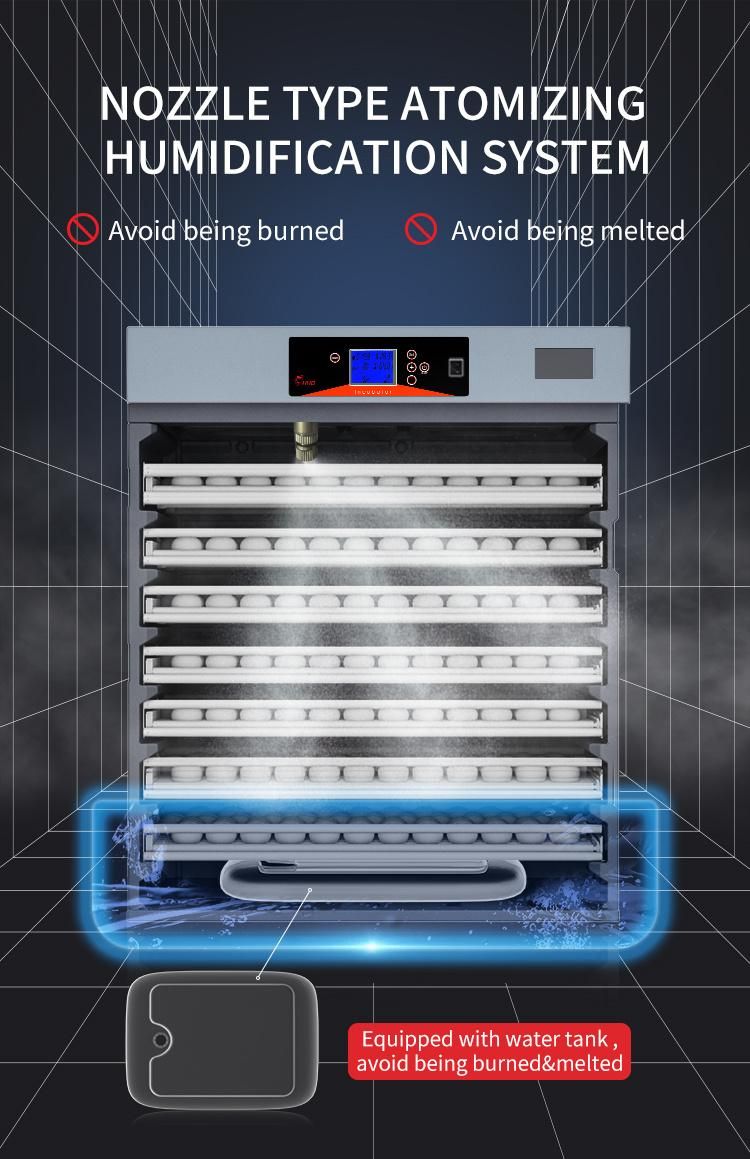

6.Sprayer designed humidity control system:It equipped with big water tank with sprayer design.Never worry about dry burning or melting any more.Detachable sprayers makes cleaning easy.

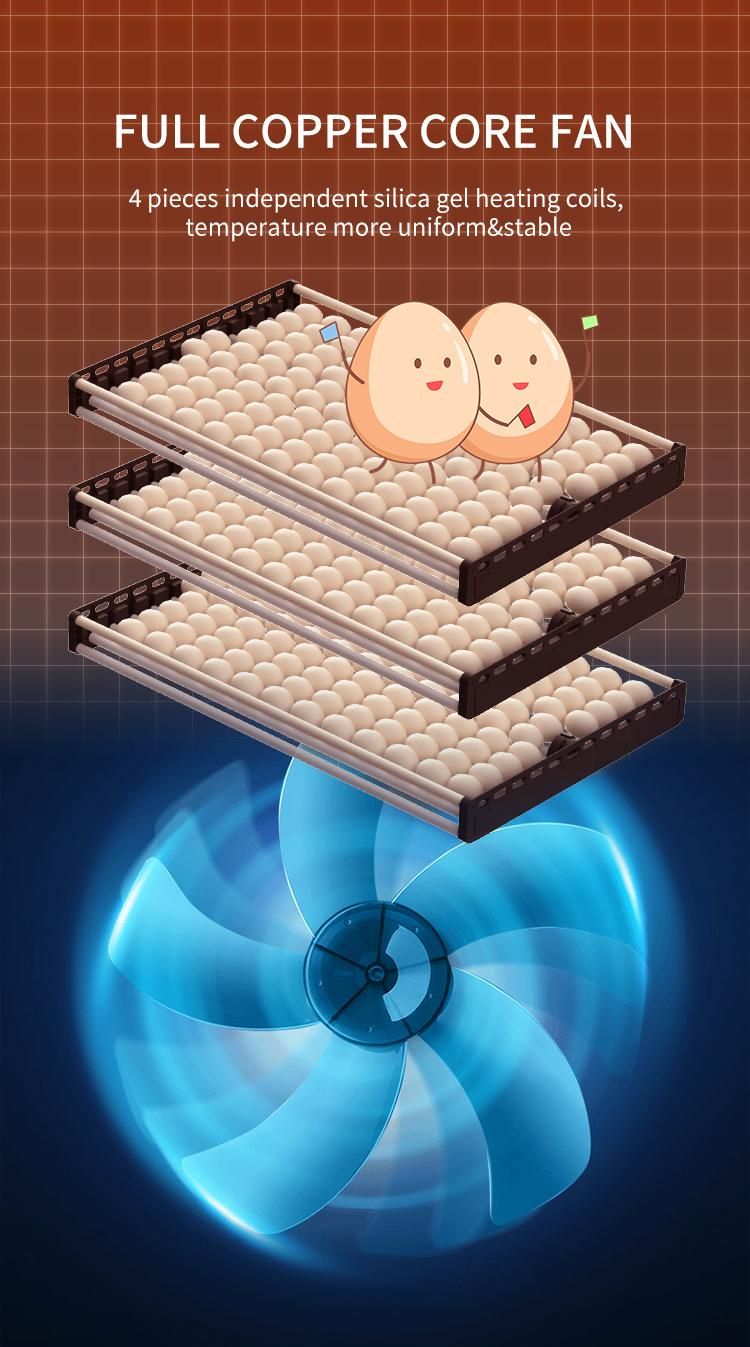

7.Copper fan:High quality fan with long lifetime,supports to distribute temperature&humidity evenly to every corner to ensure stable hatching rate.

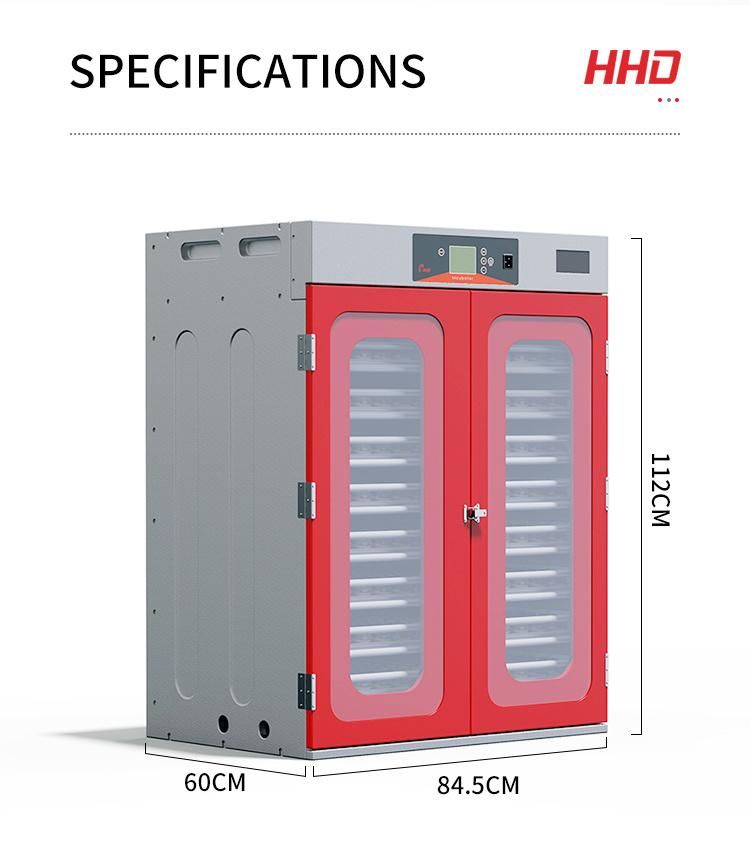

8.Silicon heating system:Realized stable accurate temperature control Voltage :110V/220V Power: ≤850W Product size 87*63*120 CM 1pcs/1 carton box(5 Layers) G.W.: 42 KGS N.W.: 38 KGS Packing size: 70 * 58 * 22CM


Quality:

All our egg incubators are with CE approved! Warranty is 3 years!
The automatic multi-function incubator researched and produced by our company uses the more popular microcomputer-based technology (using the latest micro-electronics technology and new components), equipping with the imported digital temperature sensor and France moisture sensitive capacitance humidity sensor, which makes this instrument miniaturization, intelligent, high measurement accuracy. This incubator is stable and reliable, time-saving, labor-saving, and easy-to-use. It is the ideal incubation equipment for propagation of poultry and rare birds and small and medium-sized hatchery.

Automatic

The micro-computer controller has been made adjustment for temperature, humidity, egg-turning, exhaust, etc. Before leaving factory, which meets settings required by incubation. Under normal circumstances, you do not need to set up and may use it by connecting the power supply. Factory settings: Temperature 38 degree, humidity 60% RH; Cycle of egg-turning: 90-minute, time of egg-turning: 180 seconds; Ventilation cycle: 120 minutes; Ventilation time: 30 seconds; Egg-turning state: Automatic egg-turning.

Main Technical Index:

1. Temperature Measuring Range: 0-99 degree

2. Temperature Measurement Accuracy: ± 0.1 degree

3. Humidity Measurement Range: 0_99%RH

4. Humidity Accuracy: ± 3%RH

5. Number of signal-output: 7, (over-temperature, temperature control, insufficient temperature, egg left-turning, egg right-turning, humidity control, lighting)

6. The maximum output load current: Temperature control, insufficient temperature ≤ 8A/AC220V, over-temperature, egg left-turning, egg right-turning, humidity control, lighting ≤ 1A / AC22

7. Number of egg-turning: The maximum record is 999 times.

8. Cycle of egg-turning: Adjustment of 0 - 999 minutes (the factory default is 90 minutes)

9. Egg-turning time: Adjustment from 0 to 999 seconds (the factory default is 180 seconds)

10. Ventilation cycle: From 0 to 999 minutes
(The factory default is 120 minutes)

11. Ventilation time: From 0 to 999 seconds (the factory default is 30 seconds)

12. Temperature measurement length: About 2 meters


Working Condition:

1. Working Voltage: AC 160V - 240V, 50Hz/60Hz

2. Relative Humidity: Less than 85% RH

3. Environment Temperature: -10 degree - 60 degree.



About Us:

1. It is the deluxe version with a high quality, Accurate electonic heat and humidity controller instead of the cheap and nasty waffle-plaste system seen on other incubators.

2. The incubator has a two-fan cooling/heating system, with a sepate air heater coil at the top and a water heater element in the water bath below.

3. The system includes a large plastic hatching basket, Which will work as a brooder for the first couple of days of the chicks life.

4. The entire system is programmable via the control unit, Which is conveniently located at the top of theincubator, and is very easy to set for optimal results.

5. We have one of these working now and it is a very good incubator, You will find the your ideal machine here!

Model Chicken Duck Bird Goose Ostrich Chicken/Duck/Bird/Layer Goose/Layer Hatcher Basket/Layer KG W CBM Packing size(CM)     EW-1 24 15 54 7   1/1() 1/1()   23 500W 0.21 50*51*81 EW-1   EW-2 48 30 117 15   1/1() 1/1()   30 500W 0.25 60*51*81 EW-2   EW-3 88 63 221 32   1/1() 1/1() 1/1() 40 500W 0.39 73*62*86 EW-3   EW-4 176 126 442 64   2/2() 2/2()   43 500W 0.44 73*62*96 EW-4   EW-5 264 189 663 96 6 3/3() 3/3() 2/2() 46 500W 0.48 73*62*106 EW-5   EW-6 352 252 884 128   4/4() 4/4()   52 800W 0.53 73*62*116 EW-6   EW-7 440 315 1105 160   5/5() 5/5() 3/3() 55 800W 0.58 73*62*126 EW-7   EW-8 528 378 1326 192 12 6/3() 6/3() 2/2() 59 800W 0.77 98*74*106 EW-8   EW-9 880 630 2210 306 24 10/5() 10/5()   75 800W 0.97 98*74*136 EW-9   EW-10 1056 756 2652 432   12/6() 12/6() 4/4() 85 800W 1.32 121*78*139 EW-10   EW-11 1232 882 3094 504   14/7() 14/7()   100 800W 1.43 121*78*151 EW-11   EW-12 1320 945 3315 520   15/5 15/5   115 800w 1.51 121*78*160 EW-12   EW-13 1408 1008 3536 576 36 16/8() 16/8()   105 800W 1.57 121*78*166 EW-13   EW-14 1584 1134 3975 624   18/6() 12/6() 6/3() 115 1200W 1.76 139*91*139 EW-14   EW-15 1848 1323 4641 728 54 21/7() 14/7()   123 1200W 1.91 139*91*151 EW-15   EW-16 2112 1512 5304 832   24/8() 16/8() 9/4() 133 1200W 2.1 139*91*166 EW-16   EW-17 2376 1764 5967 1008 72 27/9() 18/9()   143 1200W 2.3 139*91*176 EW-17   EW-18 2640 1890 6630 1024   30/10() 20/10()   150 1200W 2.4 139*91*186 EW-18   EW-19 2816 2016 7072 1040   32/8() 16/8()   165 1200W 3.1 182*91*186 EW-19   EW-20 3168 2268 7956 1296 96 36/9() 18/9() 13/6() 175 1200W 3.3 182*91*196 EW-20   EW-21 3520 2520 8840 1440   40/10() 20/10()   185 1600W 3.5 182*91*206 EW-21   EW-22 3872 2772 9724 1584   44/11() 22/11()   195 1600W 3.6 182*91*216 EW-22   EW-23 4224 3024 10128 1728 108 48/12() 24/12()   205 1600W 3.8 182*91*226 EW-23   EW-24 4576 3276 10608 1872   52/13() 26/13()   215 1600W 4 182*91*236 EW-24   EW-25 5280 3780 11492 1920 144 60/10() (60/10)() 18/6() 220 1600W 3.8 186*102*197 EW-25   EW-26 6336 4536 15912 2592         310 1600W 5.3   EW-26   EW-27 8448 6048 13260 3456   (48/12)2() (48/12)/2() (36/9)/2() 440 3600w 5.9 158*208*180 EW-27   EW-28 9856 7056 24752 4032 336 (56/14)2() (56/14)/2()   460 3600w 6.5 158*208*198 EW-28   EW-29 12672 9072 31824 5184   (48/12)/3() (72/12)/3()   660 5200w 7.7 158*208*235 EW-29   EW-30 14784 10584 37128 6048   (56/14)/3() (84/14)/3()   680 5200w 9.4 228*208*198 EW-30   EW-31 16896 12096 42432 6912 504 (64/16)/3() (96/16)/3() (60/10)/3() 700 5200w 10.4 228*208*218 EW-31   EW-32 19712 14112 47264 8064   (56/14)/4() (112/14)/4()   900 6800W 12.6 298*208*203 EW-32   EW-33 22528 16128 56576 9216 672 (64/16)/4() (128/16)/4() (80/10)/4() 1000 6800W 13.7 298*208*220 EW-33
