Agricultural Machinery

Multi Function Single Handle Controlled Agriculture Machinery for Wheat and Grain

Zoomlion Heavy Industry Science & Technology Co., Ltd.
  • Type:Horizontal Cut Harvester
  • Application:Rice, Corn, Wheat
  • Power Source:Diesel
  • Harvest method:Cutting
  • Drive Type:Hydrostatic Drive
  • Transmission:Mechanical Drive

Base Info

  • Model NO.:TE100 Wheat combine harvester
  • Certification:ISO9001:2008, CE
  • Color:Green
  • Condition:New
  • Application Field:Agriculture
  • Structure (Self-Propelled):Stripping,Threshing Type
  • Fuel Tank Capacity:300L
  • Operating Width:3680mm
  • Minimum Ground Clearance:300mm
  • Transport Package:SKD
  • Specification:40HQ
  • Trademark:zoomlion
  • Origin:Anhui, China
  • HS Code:84335100
  • Production Capacity:10000sets,Year

Description

Basic Info.

Model NO. TE100 Wheat combine harvester Certification ISO9001:2008, CE Color Green Condition New Application Field Agriculture Structure (Self-Propelled) Stripping/Threshing Type Fuel Tank Capacity 300L Operating Width 3680mm Minimum Ground Clearance 300mm Transport Package SKD Specification 40HQ Trademark zoomlion Origin Anhui, China HS Code 84335100 Production Capacity 10000sets/Year

Product Description

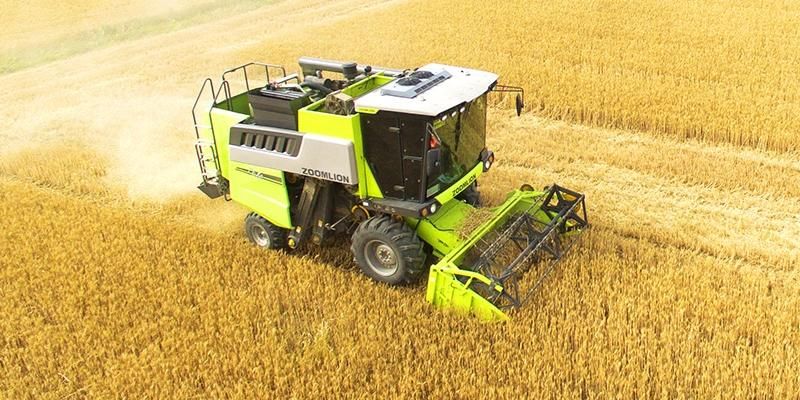

TE100 Wheeled Wheat Combine Harvester
Multi Function Single Handle Controlled Agriculture Machinery for Wheat and Grain
Strong power, high efficiency and high reliability
  1. Yuchai 190 horsepower high pressure common rail engine provides high torque reserves and strong power;
  2. Hydrostatic drive travel system is applied, which can operate flexibly and improve efficiency;
  3. Reinforced wobble box and grain unloading gearbox with longer service life;

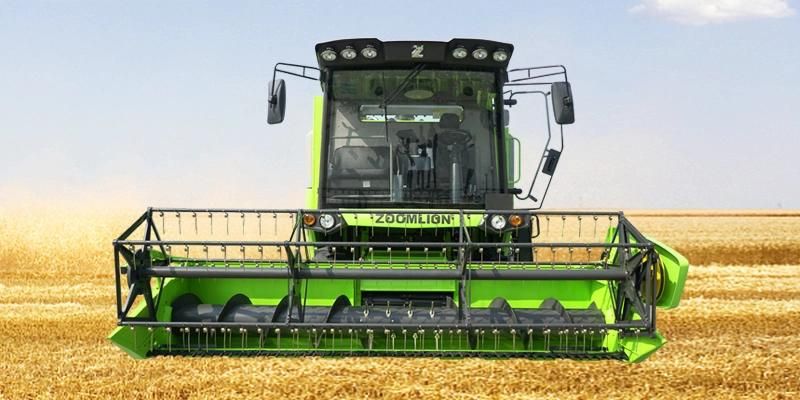

  4. The wheat header is increased to 4 m width.
Multi Function Single Handle Controlled Agriculture Machinery for Wheat and Grain

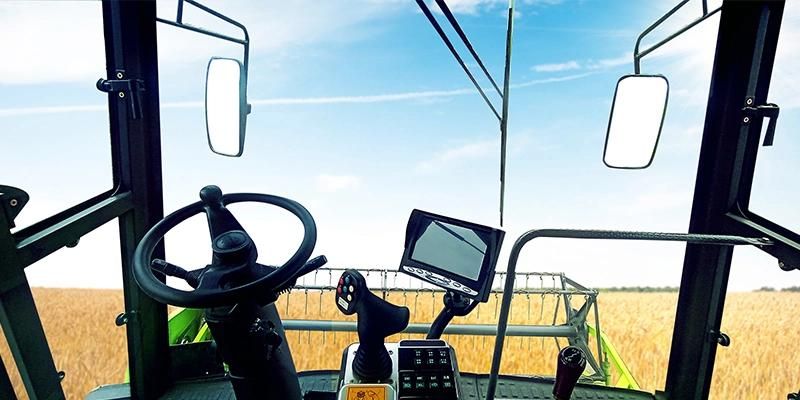

Comfortable and safe driving
  1. Air-conditioned cab with ergonomics optimization design is featured with dust prevention, shock absorption, noise reduction and more comfortable driving;
  2. Multi-functional mono-lever control, which is convenient and comfortable;
  3. Hydraulic main clutch for more labor-saving operation.
Multi Function Single Handle Controlled Agriculture Machinery for Wheat and Grain
Excellent performance and high operation efficiency
  1. Single longitudinal axial flow threshing unit has stronger threshing ability with more thorough separation;

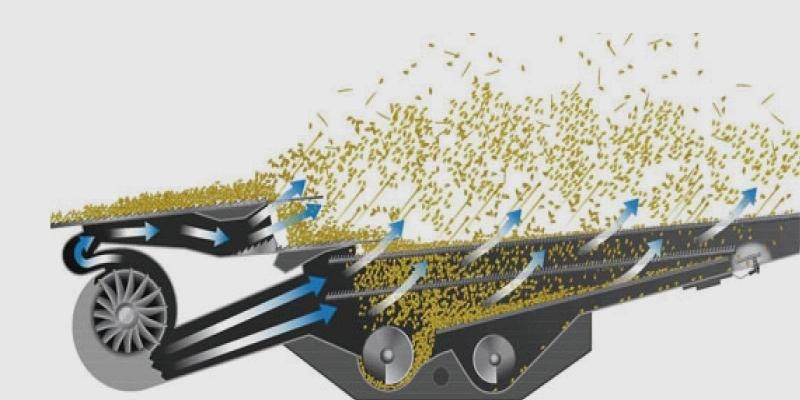

  2. The cleaning chamber is brodened with stronger cleaning ability; the recess plate is changed to detachable type for convenient maintenance;

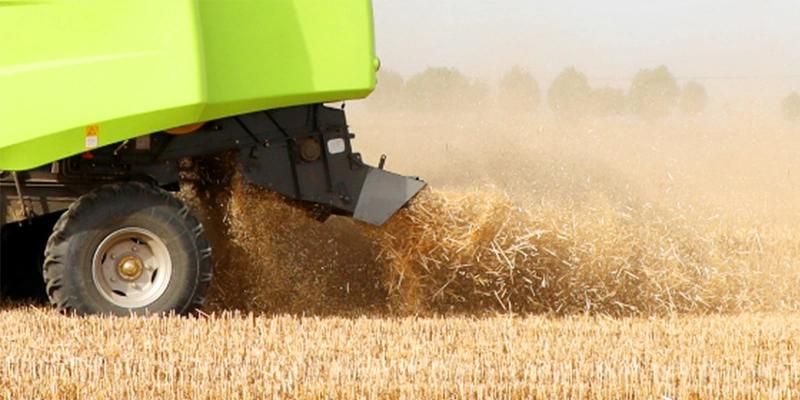

  3. Rear-mounted free-swinging knife slaw cutter for good chopping effect and even scattering;
  4. It can harvest corn, sorghum and other crops.
Multi Function Single Handle Controlled Agriculture Machinery for Wheat and Grain
Multi Function Single Handle Controlled Agriculture Machinery for Wheat and Grain
Technical parameters:
TypeUnitTE100( 4LZ-10BZH)
Overall dimension (L × W× H)mm7600×3300×3420
Minimum ground clearancemm330
Total weightkg6900
Engine emission/National Emission Standard III
Engine powerkw/hp140/190
Fuel consumption ratekg/hm²≤35
Type of gearbox/Mechanical speed change + hydraulic stepless speed change
Cutting widthmm2750/2900/4000
Feed quantitykg/s10
Type of thresher device/Single longitudinal axial flow
Diameter of drum × lengthmmφ620×3058
Type of separation unit/Grid type
Cleaning mechanisms type/Wind screen type
