• Model NO.：TB80 Wheat combine harvester
• Certification：ISO9001:2008, CE
• Color：Green
• Condition：New
• Application Field：Agriculture
• Structure (Self-Propelled)：Stripping,Threshing Type
• Fuel Tank Capacity：300L
• Operating Width：3680mm
• Minimum Ground Clearance：300mm
• Transport Package：SKD
• Specification：40HQ
• Trademark：zoomlion
• Origin：Anhui, China
• HS Code：84335100
• Production Capacity：10000sets,Year

Basic Info.

Model NO. TB80 Wheat combine harvester Certification ISO9001:2008, CE Color Green Condition New Application Field Agriculture Structure (Self-Propelled) Stripping/Threshing Type Fuel Tank Capacity 300L Operating Width 3680mm Minimum Ground Clearance 300mm Transport Package SKD Specification 40HQ Trademark zoomlion Origin Anhui, China HS Code 84335100 Production Capacity 10000sets/Year

Product Description

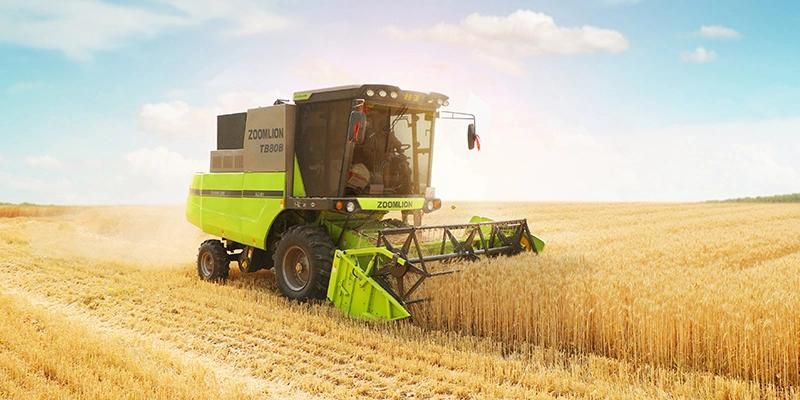

TB80 Wheeled Grain Combine Harvester

Strong power, high efficiency and high reliability

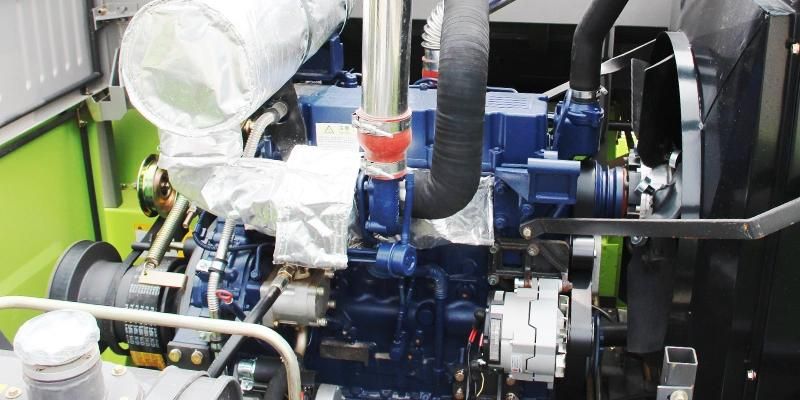

1. Yuchai 175 horsepower high pressure common rail engine provides high torque reserves and strong power;
2. 3+1 mechanical gearbox gives you more comfortable operation experience;
3. Strengthed fabricated threshing chamber recess plate gives a stronger threshing capability and thorough separation.

Comfortable and safe driving

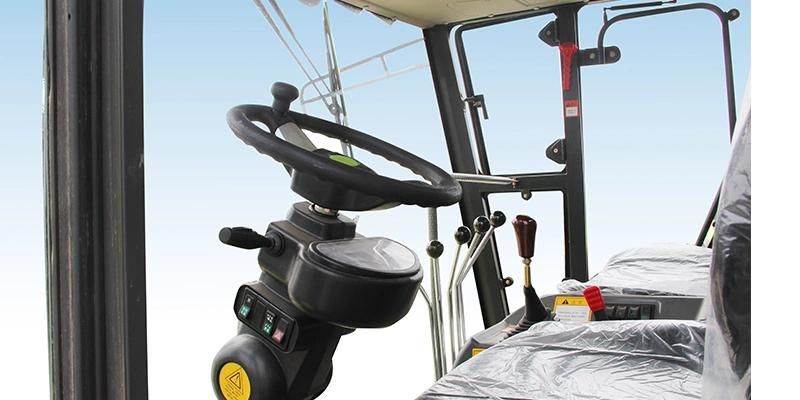

1. Air-conditioned cab with ergonomics optimization design is featured with dust prevention, shock absorption, noise reduction and more comfortable driving;
2. Multi-functional mono-lever control, which is convenient and comfortable;
3. Hydraulic main clutch for more labor-saving operation.

Excellent performance and high operation efficiency

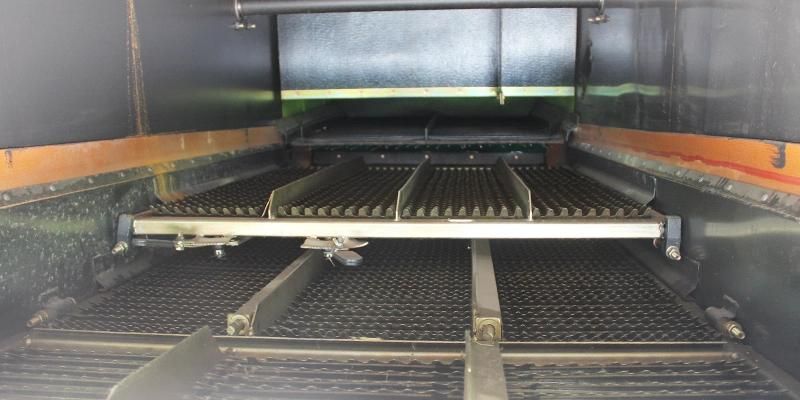

1. Tangential flow + horizontal axis flow threshing unit and strengthed fabricated threshing chamber recess plate has stronger threshing ability with more thorough separation;

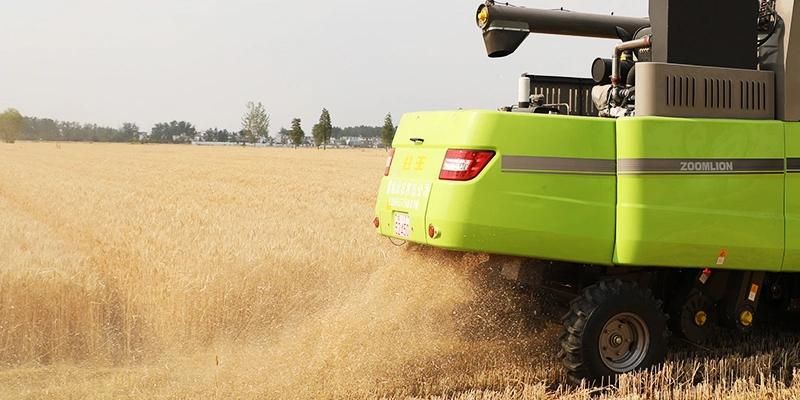

2. Rear-mounted free-swinging knife slaw cutter for good chopping effect and even scattering;
3. It can harvest corn, sorghum and other crops.

Technical parameters:

Type	Unit	TB80
Overall dimension (length × width × height)	mm	7840×3180×3310
Minimum ground clearance	mm	280
Total weight	kg	5200
Engine emission	/	National Emission Standard III
Engine power	kw/hp	129/175
Fuel consumption rate	kg/hm²	≤35
Type of gearbox	/	Mechanical gearbox
Swath	mm	2580/2750
Feed quantity	kg/s	8
Type of thresher device	/	Tangential flow + horizontal axis flow
Diameter of drum × length	mm	Tangential flow: 500×900 Horizontal axis flow: 550×1700
Type of separation unit	/	Grid type
Cleaning mechanisms type	/	Wind screen type
