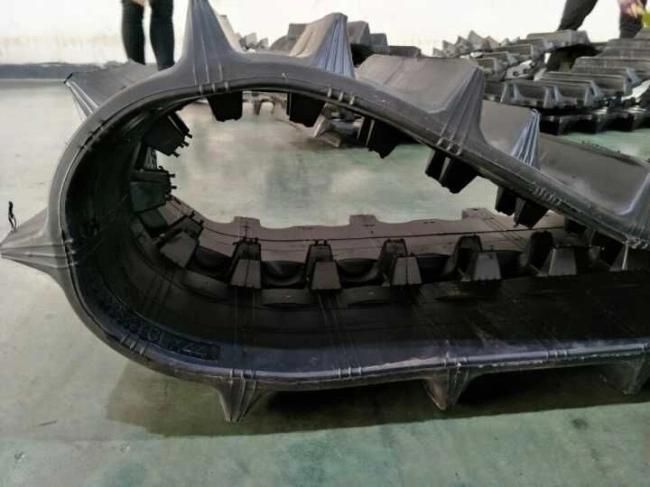

Kubota R1-2415 Agricultural Machinery Parts-Rubber Tracks 400*84*44
Shanghai Puyi Industrial Co., Ltd.- Type:Steel Pick
- Usage:Harvester
- Material:Stainless Steel
- Power Source:Gasoline
- Weight:154.32358lbs
- Width:400mm
Base Info
- Model NO.:400*84YCL*44
- Pitch Length:84mm
- Links:44
- Total Length:3696mm
- Weight for Rubber Tracks:70kg,PC
- Transport Package:Kraft Paper, Wooden Case, Pallet
- Specification:400*84YCL*44
- Trademark:No Marks or As Buyers′ Requests
- Origin:Shanghai, China
- HS Code:8431499900
- Production Capacity:3000pieces Per Month
Description
Basic Info.
Model NO. 400*84YCL*44 Pitch Length 84mm Links 44 Total Length 3696mm Weight for Rubber Tracks 70kg/PC Transport Package Kraft Paper, Wooden Case, Pallet Specification 400*84YCL*44 Trademark No Marks or As Buyers′ Requests Origin Shanghai, China HS Code 8431499900 Production Capacity 3000pieces Per MonthProduct Description
Agricultural/excavator rubber tracks,rubber track for excavator/ digger/trucks/harvesterrubber tracks for Kobelco,Hyundai,Kubota,Bobcat,Takeuchi
for excavator,digger,loader,harvester,truck,tractor
Specifications
1.excavator rubber track pad
2.excellent quality and low price
3.strong resistance to wear.
4.warranty:12 months
1. Type of rubber tracks:
1). Continuous rubber track
2). Conventional type or interchangeable type rubber track
3). Warranty: guarantee one year under normal use
4). Application: mini-excavator, bulldozer, dumper, crawler loader, crawler crane, crawler carrier vehicle, agriculture machinery, paver and other special machine
2. The feature of rubber tracks:
(1). Less round damage
Rubber tracks cause less damage to roads than steel tracks, and less rutting of soft ground than either steel tracks of wheel products.
(2). Low noise
A benefit to equipment operating in congested areas, rubber track products less noise than steel tracks.
(3). High speed
Rubber track permit machines to travel at a higher speed than steel tracks.
(4). Less vibration
Rubber tracks insulate machine and operator from vibration, extending the machine's lifetime and lowering operate fatigue.
(5). Low ground pressure
The ground pressure of rubber tracks equipped machinery can be fairly low, about 0.14-2.30 kg/ cmm , a major reason for its use on the wet and soft terrain .
(6). Superior traction
The added traction of rubber, track vehicles permits them to pull twice the load of wheel vehicles of the sane weight.
3. More Parameters:
Size | Weight for Each Link | Size | Weight for Each Link | Size | Weight for Each Link |
130*72 | 0.36 | WD300*72 | 1.459 | 400*144 | 7.75 |
150*60 | 0.52 | B300*84 | 2.88 | 400*144Y | 7.41 |
150*72 | 0.55 | T300*86 | 3.13 | 420*100 | 5.3 |
170*60 | 0.48 | 300*109KW | 3.38 | 450*71 | 4.45 |
180*60 | 0.56 | K300*109 | 3.56 | DW450*71 | 4.82 |
180*72 | 0.64 | 300*109N | 3.32 | 450*73.5 | 4.57 |
180*72K | 0.87 | 300*109W | 3.21 | 450*76 | 5.27 |
H180*72 | 0.77 | 320*52.5 | 1.69 | 450*81.5 | 5.24 |
190*60 | 0.59 | 320*54 | 1.81 | 450*81N | 5.19 |
190*60 | 0.59 | B320*84 | 2.95 | 450*81W | 5.02 |
190*72 | 0.72 | B320*86 | 2.99 | 450*83.5 | 5.47 |
200*72 | 0.84 | B320*86SB | 2.99 | 450*83.5Y | 5.67 |
200*72K | 1.07 | B320*86C | 3.01 | 450*84 | 4.22 |
230*48 | 0.87 | B320*86Z | 3.12 | B450*86 | 4.33 |
230*48K | 1.06 | B320*86CM | 3.01 | B450*86SB | 4.3 |
230*72 | 1.09 | B320*86R | 2.99 | B450*86C | 4.31 |
230*72K | 1.34 | T320*86 | 3.22 | B450*86Z | 4.51 |
230*96 | 1.77 | T320*86MB | 3.3 | B450*86CM | 4.37 |
230*101 | 1.92 | T320*86SB | 3.27 | B450*86R | 4.3 |
250*47 | 1.11 | T320*86C | 3.25 | 450*90 | 4.07 |
250*48.5 | 1.13 | T320*86Z | 3.53 | KU450*90 | 3.9 |
250*52.5 | 1.04 | 320*90 | 2.85 | 450*110 | 6.9 |
250*52.5K | 1.31 | 320*100 | 2.67 | T450*100MB | 5.3 |
250*72 | 1.17 | 320*100W | 3.01 | T450*100 | 5.09 |
B250*72 | 1.03 | 320*106 | 3.63 | T450*100SB | 5.16 |
250*96 | 2.21 | 350*52.5 | 1.85 | T450*100C | 5.2 |
250*109 | 2.39 | 350*54.5 | 2.31 | T450*100Z | 5.55 |
260*55.5 | 1.48 | 350*56 | 2.05 | 450*163 | 10.47 |
260*96 | 1.91 | 350*75.5 | 3.58 | 485*92W | 7.62 |
260*109 | 2.16 | 350*90 | 1.85 | 500*71 | 7.5 |
280*72 | 1.43 | 350*100 | 3.69 | 500*90 | 5.38 |
280*106 | 3.05 | 350*108 | 3.92 | 500*92 | 7.81 |
300*52.5KB | 1.67 | 350*109 | 4.12 | 500*92W | 8.6 |
300*52.5KW | 1.71 | 370*107 | 4.68 | 500*100 | 6.34 |
300*52.5N | 1.44 | 400*72.5KB | 3.44 | 500*146 | 9.97 |
300*52.5W | 1.56 | 400*72.5KW | 3.72 | 600*100 | 8.3 |
JD300*52.5N | 1.54 | 400*72.5N | 3.48 | 600*125 | 10.39 |
K300*52.5 | 1.72 | 400*72.5W | 3.85 | 650*110 | 13.34 |
KB300*52.5N | 1.55 | 400*72.5Y | 3.62 | 650*120 | 13.75 |
300*53 | 1.81 | 400*74 | 3.4 | 650*125 | 15.8 |
300*55 | 1.88 | 400*75.5 | 4.09 | 700*100 | 10.9 |
300*55.5 | 1.95 | 400*86 | 4.14 | 700*125 | 14.29 |
300*71 | 3.31 | 400*90 | 2.22 | 750*150 | 21.34 |
300*72 | 1.77 | 400*107 | 4.95 | 800*125 | 19.14 |
400*142 | 7.12 | K800*150 | 21.55 | ||
ASV TRACK | M800*150 | 20.05 | |||
280*102*37 | 1.36 | PAVER TRACK | 900*150 | 31.23 | |
380*102*42 | 1.9 | 356*152.4*46 | 4.81 | 1000*150 | 33.3 |
460*102*51 | 2.41 | 483*152.4*52 | 6.07 | ||
460*102*56 | 2.49 | 460*225*36 | 7.79 | SPECIAL TRACK | |
460*102C*51 | 2.44 | 160*87.63*28 | 0.41 | ||
510*102*51 | 2.6 | 240*87.63*28 | 0.51 |
