Poultry Feed Processing Plant Small Feed Pellets Production Line
Jiangsu Liangyou Zhengda Co., Ltd.- After-sales Service：Provided
- Type：Poultry Processing Plant
- Processing Object：Animal-Derived Feed
- Processing Technics：Crushing-before-Mixing
- Screen Mesh：With Screen Mesh
- Grinding Equipment Type：Feed Hammer Mill
Base Info
- Pellet Mill Type：Ring Die Pelleter
- Bulking Machine Type：Twin Screw Bulking Machine
- Expanding Method：Wet Expansion
- Condition：New
- Applicable Materials Shape：Granular and Power
- Warranty：1 Year
- Transport Package：Iron Pallet ,Wood Package
- Specification：1500KG
- Trademark：FDSP
- Origin：Jiangsu, China(Mainland)
- HS Code：8436100000
- Production Capacity：10 Set,Year
Description
Note: We can customized the animal feed production line, ruminant animal feed
production line, poultry feed pellet plant, aqua feed pellet plant according to
customer's requirements.
Application of Animal Feed Mill Plant
1. Wide Applicable Scope: it can process different materials such as soybeans, corn,
maize, wheat bran, rice, sorghum, grass, alfalfa, straw, etc.
2. Multiple-purpose: Suitable to make various poultry feed for rabbits, ducks,
cattle, chickens, sheep, pigs, pigeons, etc.
3. Wide range diameters of pellets: 2-18mm to meet different animals demands.
4. Customized Capacity: We can customize the different capacities from 1 ton per hour
to 50 tons per hour or even more.
Process Flow Diagram of Animal Feed Mill Plant
Receiving & Pre---cleaning System---Grinding System---Mixing System---Pelleting System---Coolling System---Crumbling System---Screening System---Bagging System---Finished Products
Main Equipment Related to Complete Feed Pellet Production Line
hammer mill - mixer - pellet mill - Cooler- Crumbler - Rotary Screener - Bagging Scale - Control Center
Related machine: Tear Circle Hammer Mill
(1) Feed hammer mill adopts best improve the production efficiency and make
the high delicious poultry feed pellets. After grinding, the diameter of the final
products could be the optimal size for pelleting.
(2) Both coarse and fine grinding are realized through adjusting the gap
between beater and screen.
30-120 Time can be properly extended
according to different materials
5
7.5
SHSJ1
1
5
11/15
SHSJ2
2
1000
5
18.5
SHSJ3
3
1500
5
22
SHSJ4
4
2000
5
30
SHSJ6
6
3000
5
37

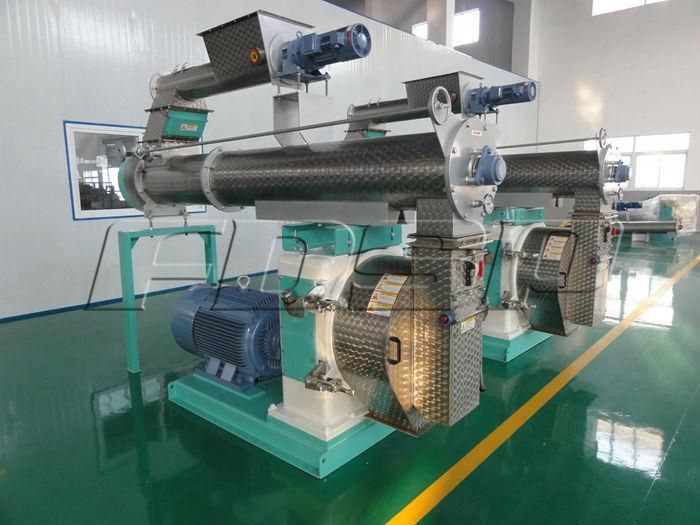

Related machine: Ring Die Pellet Mill
The feed pellets produced by this poultry feed mill have rich nutrition, good palatability and high digestibility.
(1) Low consumption, competitive price, long service life.
(2) Driven by electric motor makes it more convenient and environmentally friendly
(3) To make poultry feed pellets with different diameters, you just need to replace a
pellet mill die.
| Model | Capacity(t/h) | Power(kw) | Inner diameter of Die(mm) |
| SZLH32 | 2-5 | 37/45 | 320 |
| SZLH35 | 3-7 | 55 | 350 |
| SZLH400 | 3-10 | 75/90 | 400 |
| SZLH420 | 3-14 | 90/110 | 420 |
| SZLH508 | 6-15 | 160 | 508 |
| SZLH678 | 11-32/11-36/11-40 | 220/250/280 | 678 |
What's more, we can construct many other feed production line, such as livestock, poultry, aqua, prawn and premix, at various scales.
You can customize what you need and we can supply the Professional solution for you.
What We Can Supply
1. Turn-Key projects
·Livestock And Poultry Feed Plant
·Aqua Feed Plant
·Special Aqua Feed Plant
·Shrimp Feed Plant
·Concentrate Feed Plant
·Premix Feed Plant
·Storage Project
·Grass Processing Plant
·Biological Feed Plant
2. Single Machine
·Hammer Mill And Pulverizing Machine
·Mixer And Liquid Adding Machine
·Pellet Mill
·Cooler,Crumbler And Screener
·Extruder,Stabilizer,Dryer
·Cleaner,Magents And Pulse Filter
·Conveyor And Bucklet Elevator
·Electrical Control And Bagging Machine
·Spare Parts,Dies,Rollers
Certifications:
We have CE, SGS, GOST-R and ISO9001 certificates.
1.How does your factory do regarding quality control?
Our factory has gained CE, ISO9001, SGS authentication.'Quality is priority'. We always pay great attention on quality controlling from the beginning to the end.
2.How long is your guarantee?
One year. After this period we will definitely support you when needed. You are welcome to contact us at any time.
3.Will you send engineers to install the plant?
Yes, we can send our engineers do the guide installation overseas.
4.Where is your company located? How can I get there?
Our company is located in Nanjing City, Jiangsu Province, China, near Shanghai.
If you arrived Nanjing Lukou International Airport, you can come to our company by Car about 30 Mins. Or you arrive Shanghai Hongqiao Airport, you can by train about 1.5H.
5. Where is your factory located? How can I visit there?
Our factory is located in Liyang City, Jiangsu Province, China, near Shanghai; and our International Business Centre is in Nanjing City. You can fly to Shanghai airport or Nanjing Airport directly. All our clients, from home or abroad, are warmly welcome to visit us!
