• Model NO.：1BZ-4.5
• Color：Blue
• Product Name：1bz-4.5 Disc Harrow
• Working Width：4.5m
• Disc Diameter：26inch
• Disc Number：40pieces
• Matched Power：140-170HP
• Usage：Tillage
• Transport Width：2900mm
• Transport Package：Nude Packig in Standard 20 Feet Container
• Trademark：xunong lishi
• Origin：Xuzhou
• HS Code：8432210000
• Production Capacity：2000set

Basic Info.

Model NO. 1BZ-4.5 Color Blue Product Name 1bz-4.5 Disc Harrow Working Width 4.5m Disc Diameter 26inch Disc Number 40pieces Matched Power 140-170HP Usage Tillage Transport Width 2900mm Transport Package Nude Packig in Standard 20 Feet Container Trademark xunong lishi Origin Xuzhou HS Code 8432210000 Production Capacity 2000set

Product Description

Product Description

This product is a folding type.
1BZ series agricultural machinery heavy-duty offset disc harrow are mainly used for cleaning away stuble of plants before tillage, or crushing clods after tillage on uncultivated land and in stickly heavy clay soil fields, they can also be used as a plough for primary tillage in dry cultivated fields.

The series products are all fitted with hydraulic rubber wheel for transportation, It is easy to be transported and change directiong on the edge of fields.

Product characteristics

Item	Unit	1BZ-4.5(folding)
Working width	mm	4500
Max. working depth	cm	20
No. of disc		40
Dia. of disc	mm	660
weigth	kg	3000
Transport width	mm	2900
Linkang		Traied
Matched power	hp	160-180

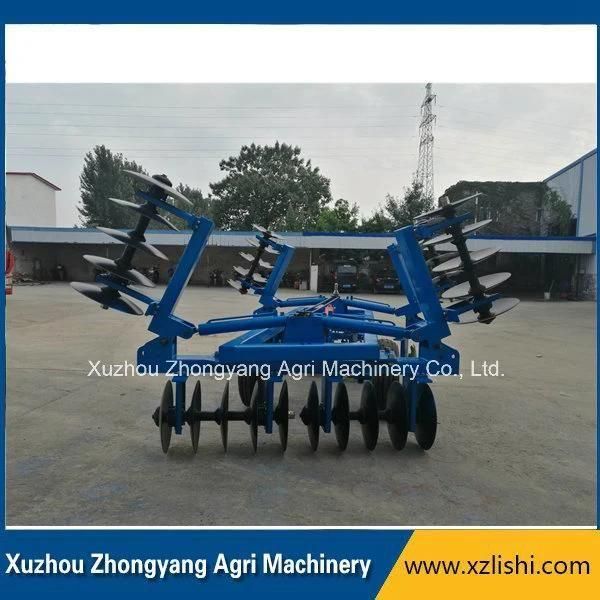

Product  show
