• Model NO.：4LZ-4.0E
• Portable Harvester Type：Side Hanging Type
• Certification：ISO9001:2008, CE
• Color：Red
• Condition：New
• Application Field：Agriculture
• Warranty：One Year
• Transport Package：Nude Packing
• Specification：4LZ-4.0E
• Trademark：world
• Origin：China
• HS Code：8433510090
• Production Capacity：5000units

Overview Product DescriptionFeeding Capacity  (kg/s)4Work Dimension L*W*H (mm)4900*2890*2700Weight (kg)2900Cabin/Sun shadeSun shadeEngine PartModel No.Changchai 4L88Power/Speed (hp/rpm)88/2700FuelLight Diesel OilFuel Capacity (L)130Fuel Consumption(kg/hm2)12~30StartMotor StarterGear BoxZKB65 made by WORLD Factory.HST40CC HST Imported from south Korea.Walking PartRubber TrackLength of Ground Contact (mm)1700Center Distance (mm)1160Size(mm)450*90*51Average Contact Pressure (kpa)≤20KpaMin. Ground Clearance (mm)300Gear ShiftsVariable Sun-transmission 3 ShiftsWalk Speed (Km/Hour)Low:0~1.85 Medium:0~6.5 High:0~9Theoretical Work Speed (Km/Hour)0.9-6.5Harvesting UnitGrain LifterDividerWorking Width (mm)2200Reel BatDia. × Length (mm)∮900×2028Gearshift MethodConstant SpeedAdjusting MeansHydraulicStubble Height[Lift] (mm)25cm or aboveThreshing &Cleaning UnitThreshing ModeAxial Flow Type, Bullet RotorThreshing RotorType of ThreshingBeat BarDia. ×Length (mm)∮620*2050Rotating Speed(rpm)662/732FanDiameter∮400Separating TypeVibrating Sieves +Air BlowArea of Sieves (Lowe and Upper Sieves) (m2)1.645Grain-unload UnitGrain Tank Capacity (M3)1.4Grain Discharging Type360 Degree Rotary Discharging PipeAlarm UnitsWater Temperature, Battery, Oil, Grain Tank, Jam of 2# AugerWork Efficiency(hm2/h)0.4~0.7CropsRice, WheatTotal LossLess than 2.5%BreakageLess than 1.5%ImpurityLess than 1.5%

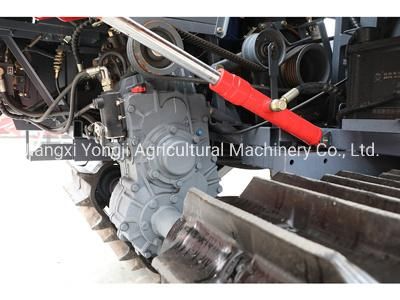

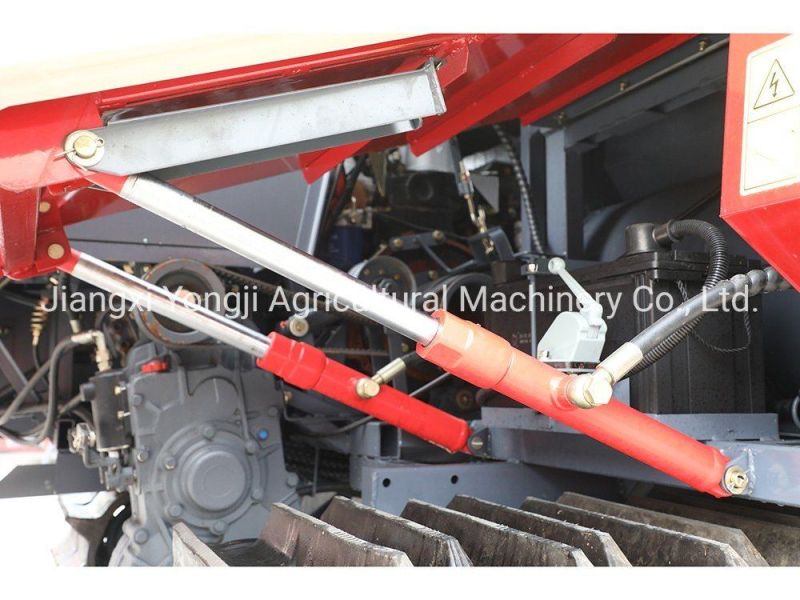

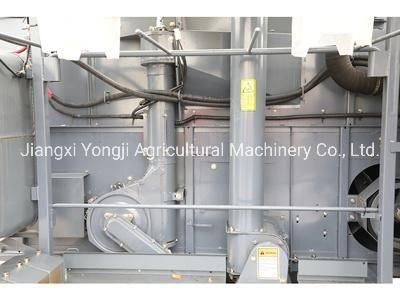

Detailed Photos

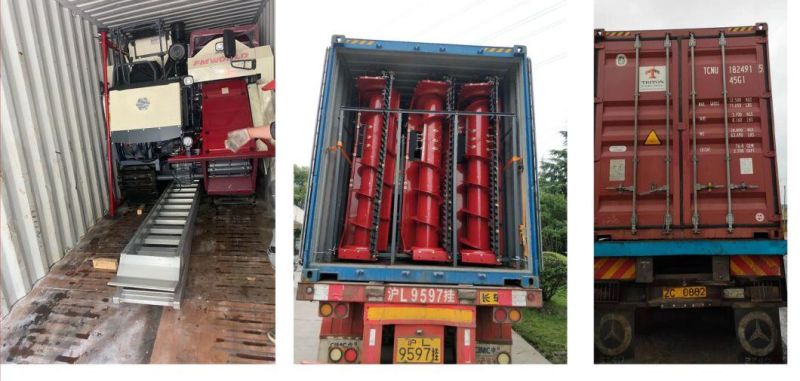

Packaging & Shipping
