• Model NO.：204
• Condition：New
• Customized：Customized
• Specification：920*390*750mm
• Origin：China
• HS Code：84792000
• Production Capacity：1000

Basic Info.

Model NO. 204 Condition New Customized Customized Specification 920*390*750mm Origin China HS Code 84792000 Production Capacity 1000

Product Description

1. GENERAL DESCRIPTION

This Screw  Edible Oil Pressing Expeller Machinery it is designed to use physical mechanical pressing way to press oil from oil seed. This cooking oil pressing machine is suitable for the extraction of most of vegetable oils and fats, it's such as rapeseed, peanut, groundnut, sesame seed, cottonseed, coconut, sunflower seeds and other vegetable oils can be squeezed.(According to user's needs, can replace the screw, for pressing the rice bran and other oilseed)

2. FEATURES

1. The spindle, screw, pressing bar, gear and other main parts of the machine are made of advanced alloy steel and hardened, although it's in the condition of high temperature and friction consumption all the days,they are durable.

2.Steamed and fried, according to a variety of oil in the press before the different temperatures need to be adjusted to obtain high-quality oil.

3.From the feed to the oil, the cake is automatic continuous work, simple management, labor saving.

3. TECHNICAL DATA

1)  Rotating speed of agitating shaft: 35rpm

2) Main shaft Speed: 8rpm

3)  Feeding shaft speed: 69rpm

4) Steam pressure:5-6kg/cm²

5) Spec. Of Motor:

          - Power: 18.5 KW

          - 380V/50HZ

          -960R / min

6) Capacity: 7-10T/24Hours

7) Residual Oil in the cake: 6-8%



For more details,pls email me



The pictures of Screw  Edible Oil Pressing Expeller Machinery is as below:

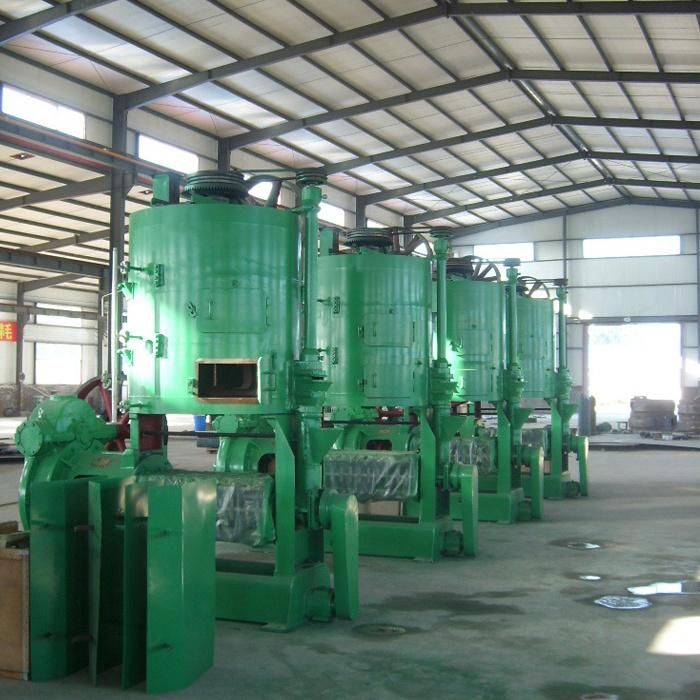

Below picturer is 35-40TPD vegetable oil pressing workshop

Below picturer is the cooker of screw oil expeller




Below picture is the motor of screw oil expeller
