• Certification：ISO9001:2008, CE
• Condition：New
• Manure Removal System：Automatic,Semi-Automatic
• Cage Tiers：2,3,4,5
• Surface Treatment：Galvanization
• Life Span：30~50years
• Size：2250mm*600mm*430mm-340mm Per Set
• Tier：3 Tiers, 4 Tiers, 5 Tiers, 6 Tiers, 8 Tiers
• Feature：Practical, Durable, Cheap
• Transport Package：Seaworthy Packing
• Trademark：xgz
• Origin：China Qingdao
• HS Code：8436290000

Basic Info.

Certification ISO9001:2008, CE Condition New Manure Removal System Automatic/Semi-Automatic Cage Tiers 2/3/4/5 Surface Treatment Galvanization Life Span 30~50years Size 2250mm*600mm*430mm-340mm Per Set Tier 3 Tiers, 4 Tiers, 5 Tiers, 6 Tiers, 8 Tiers Feature Practical, Durable, Cheap Transport Package Seaworthy Packing Trademark xgz Origin China Qingdao HS Code 8436290000

Product Description

INTRODUCTION OF PRODUCT:


1.The full set of equipment using hot-dip galvanized material, corrosion-resistant, which ensures the service life of 15-20 years.

2.Intensive management and automated control. Achieve automatic feeding,drinking,manure cleaning,egg collecting and environment control,can help to improve working efficiency and save labor cost.

3.High-density raising,saves land and investment.

4.Suitable for closed chicken house. Automatic control of ventilation and temperature can meet the requirement of the birds.

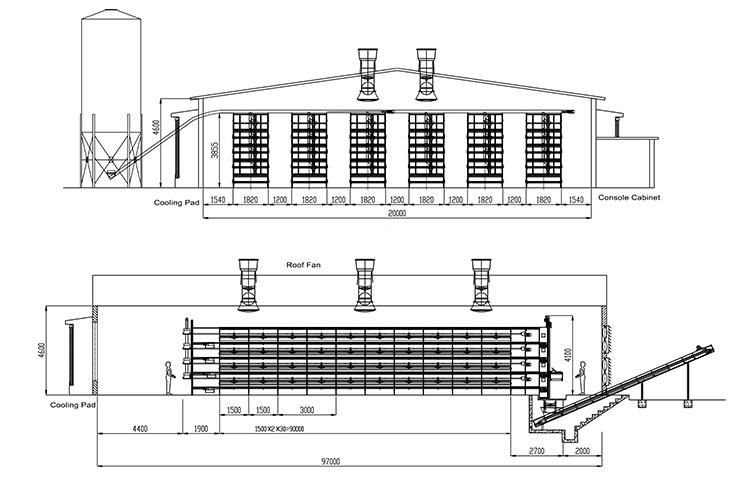

Drawing of H Type Layer Poultry Farm House Design Explanation:



In a house of 104m*14m, if 4 tier cages are installed, 39 units of cage per line, the height of side wall should be 4m, and total birds quantity is 37400; if 5 tier cages are installed, 39 units of cage per line, the height of side wall should be 4.5m, and total birds quantity is 46800; if 6 tier cages are installed, 39 units of cage per line, the height of side wall should be 5.0m, and total birds quantity is 56160.

Our excellent design team will design the steel structure workshop warehouse for
you. If you give the following information, we will give you an satisfactory drawing.

1 Location (where will be built? ) _____country, area

2 Size: Length*width*height _____mm*_____mm*_____mm

3 wind load (max. Wind speed) _____kn/m2, _____km/h, _____m/s

4 snow load (max. Snow height) _____kn/m2, _____mm

5 anti-earthquake _____level

6 brickwall needed or not If yes, 1.2m high or 1.5m high

7 thermal insulation If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; If not, the metal steel sheets will be ok. The cost of the latter will be much lower than that of the former.

8 door quantity & size _____units, _____(width)mm*_____(height)mm

9 window quanity & size _____units, _____(width)mm*_____(height)mm
