• Model NO.：GLY500
• Production Capacity：0.5-2tpd

ModelPictureSpecificationRemarks500L Small oil refinery
Crude oil (filtered) → drumming → deacidify → decoloration → refined oilPartsPower (kw):Tank cubage/ work cubageMeasurements (mm)Refinering Tank12 / 0.55330 / 2501960x840x1860Decoloration Tank/360 / 300Heating Tank626 / 25Oil pump0.371m3 / h

2

0.18-0.37

/

Applicable oil producing business 1. Small or medium oil refinery use it on oil production line. 2. Personal users use it in farmer's market, either to make oil to sell or for clients with supplied material and earn the processing fee. Client could see how the oil being extracted from the machine, so trust the oil quality. This type of business is very popular in developping and undevelopping countries.
 Guangxin Single Oil Press Machine Processing Capacity 1.3~20TPD (t/24h)

Model	Processing Capacity (t/24h)	Motor Power (kw)	Weight (kg)	Measurement(mm)(L*W*H)	Oil Content of Dry cakes (%)	Spiral Axes Rotate Speed (r/min)
YZYX70	1.3	4	195	1180*405*1120	≤7.8	33-42
YZYX90	3	5.5	285	1250*550*1140	≤7.8	32-42
YZYX10(95)	3.5-4	7.5 or 11	528	1650*730*1340	≤7.8	32-40
YZYX10-6/8/9	4.5	11	590	1760*730*1340	≤7.8	32-40
YZYX10J-2	4.5	11	600	1770*730*1340	≤6.0	32-40
YZYX120	6.5	11 or 15	680	1860*740*1275	≤7.0	28-40
YZYX130	8	15 or 18.5	825	2020*742*1420	≤7.6	32-40
YZYX140	9-11	18.5 or 22	806	2010*750*1430	≤7.6	32-40
YZYX120J	7	11 or 15	718	2110*780*1350	≤6.0	35-40
YZYX130GX	8-10	18.5	998	2100*820*1400	≤7.8	30-40
YZYX140GX	9-11	18.5 or 22	1000	2150*820*1420	≤7.8	30-40
YZYX140CJ	9-11	22	980	2220*750*1420	≤7.8	32-40
YZYX140CJGX	9-11	22	1100	2300*820*1420	≤7.8	30-40
YZYX168	20	37 or 45	1820	2750*1100*1830	≤7.4	36-44

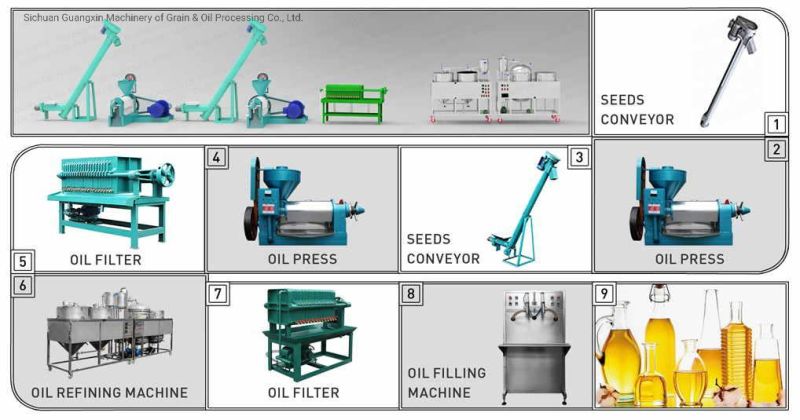

 Process of making edible cooking oil is as following:
