• Model NO.：5XZ-6
• Power：8.95kw
• Input：3 Phase Electricity
• Productivity：80 Sets Per Month
• Warranty：1 Year
• Transport Package：Wooden Case
• Specification：ISO9001: 2008, TUV, SGS, SONCAP
• Trademark：SYNMEC
• Origin：Hebei, China
• HS Code：8437109000
• Production Capacity：20 Sets Per Week

Basic Info.

Model NO. 5XZ-6 Power 8.95kw Input 3 Phase Electricity Productivity 80 Sets Per Month Warranty 1 Year Transport Package Wooden Case Specification ISO9001: 2008, TUV, SGS, SONCAP Trademark SYNMEC Origin Hebei, China HS Code 8437109000 Production Capacity 20 Sets Per Week

Product Description

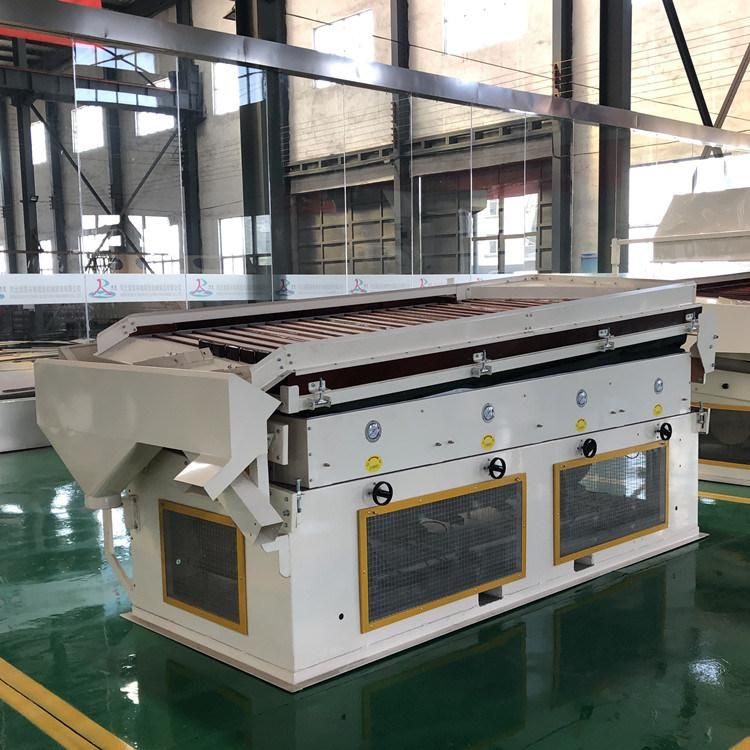

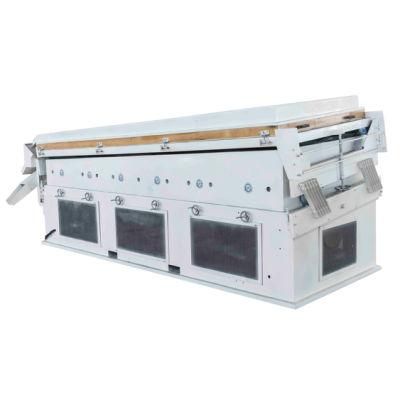

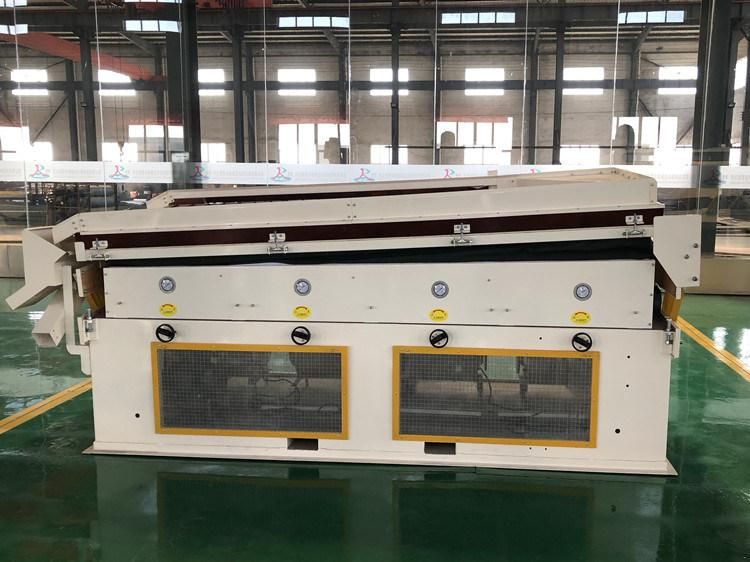

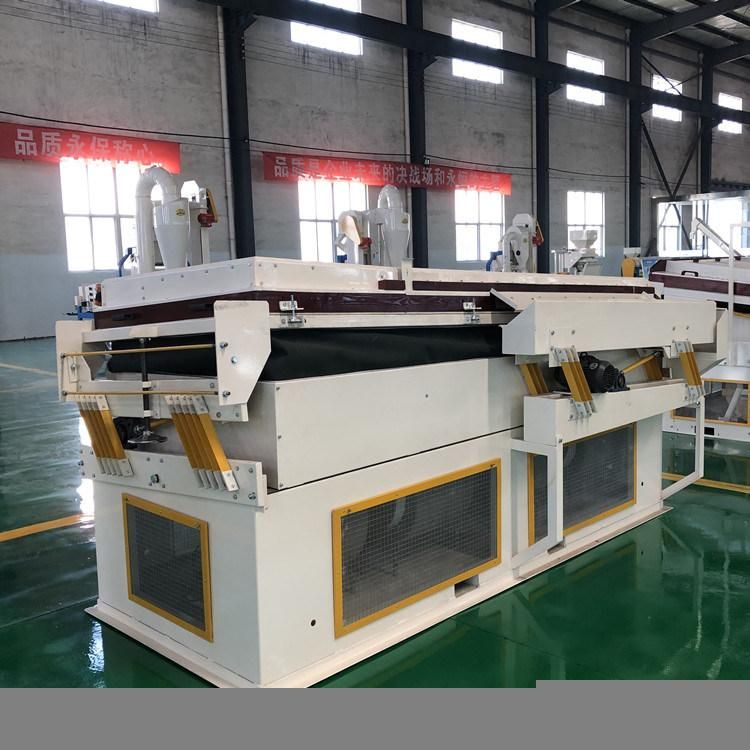

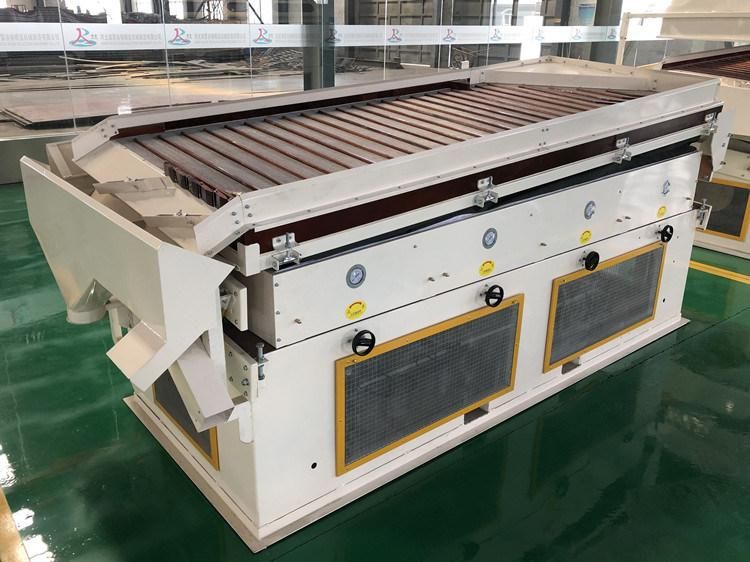

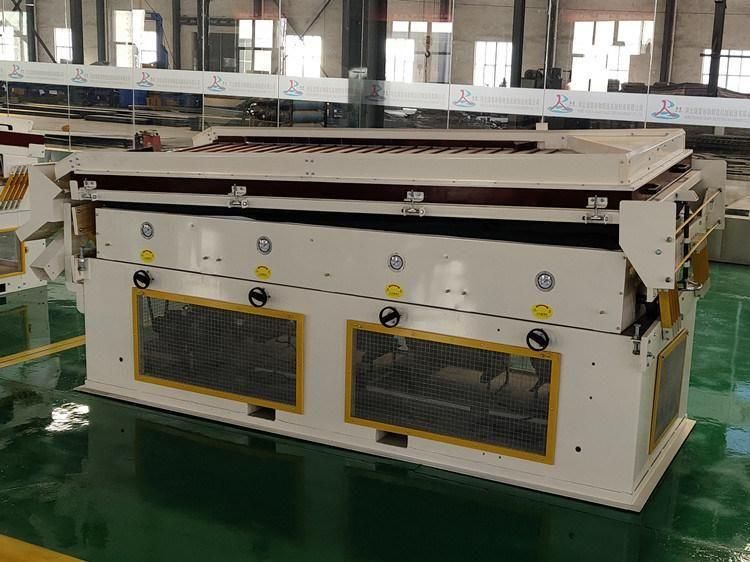

Grain Bean Seed Gravity Separator

Introduction

5XZ-6 gravity sorter is the blowing type, it used for separating grain and seed which have same shape but different in gravity, finally obtain the best seed which will be used for sowing.

Application
The gravity sorter can efficiently remove moldy kernel, immature shriveled, insect damaged seed or broken seed to ensure maximum quality of the final product. The gravity sorter can be used to separate all kinds of seed and grains, such as coffee bean, cocoa bean, peanuts, corn, peas, beans, rice, wheat, sesame etc.
The gravity sorter also has wide applications, from heavy industrial materials like glass, stone, metal and sand, to lighter agricultural seeds beans and nuts.

Working Principle

The gravity sorter works on a fluidized bed principle. Materials is fed on oscillating sieve deck. By the pressure of air & deck oscillation, material is fluidized and stratified. Heavy fraction sink into the deck while light fraction is suspended in fluidized state. Deck oscillation causing heavy and light fraction travel in separated path and collected separately.

Data Sheet


Capacity(Count by wheat)	5000kg/h
Sieve Table Dimension	3.4
Total Power	8.95kw
Motor for build-in Air Blower	6kw
Motor for vibration	2.2kw
Motor for Good Grain Release	0.75kw
Lateral angle of inclination	3°~6°
Amplitude	7mm
Dimension (L*W*H)	3840×2110×1710 mm
Weight	2000kg
