• Model NO.：5XZC-7.5DS
• Service：on Site Traning
• Warranty：1 Year
• Input：3 Phase Electricity
• Application：All Type Grain Seeds
• Transport Package：20 Gp, Bulb Film Packing
• Specification：ISO
• Trademark：SYNMEC
• Origin：Hebei, China
• HS Code：8437109000
• Production Capacity：50 Sets,Month

Basic Info.

Model NO. 5XZC-7.5DS Service on Site Traning Warranty 1 Year Input 3 Phase Electricity Application All Type Grain Seeds Transport Package 20 Gp, Bulb Film Packing Specification ISO Trademark SYNMEC Origin Hebei, China HS Code 8437109000 Production Capacity 50 Sets/Month

Product Description

 sunflower seed, sesame seed cleaning machine
INTRODUCTION

5XZF-7.5F sesame seed cleaning machine has seed cleaning, grading and stone removing function. It is double air cleaning systems and quit fits for sesame, sunflower seeds, and similar light raw material cleaning.

WORKING PRINCIPLE

After material fed into machine by bucket elevator, the dust and light impurity were removed by air aspiration system, and then materials enter to sieving trunk which has multi sieve layers, finally the material was graded to different level by size, at the same time all the oversize and undersize impurities were removed.

FEATURES

Customized various sieve's size and amount of sieve layer that make the seed cleaner & grader has wide range of applications and high grading efficiency.
Cyclone dust separator protect working environment.
Double as aspiration system with stone removing platform lead to higher cleaning result.

PARAMETER


Model	5XZC-7.5D	5XZC-7.5C	5XZF-7.5F
Dimension (L×W×H)	5600×2100×3200mm	5600×2100×3200 mm	5600×2100×3200 mm
Dimension of sieves	2400×1250mm	2400×1250 mm	2400×1250 mm
Capacity	7500kg/h	7500 kg/h	7500 kg/h
Weight	1700kg	2000 kg	1800 kg
Power	10.1KW	15.6 KW	15.6 KW
Remarks	Dust cyclone separator	Wheat Huller Cyclone dust separator	Stone removing Cyclone dust separatorDouble air cleaning

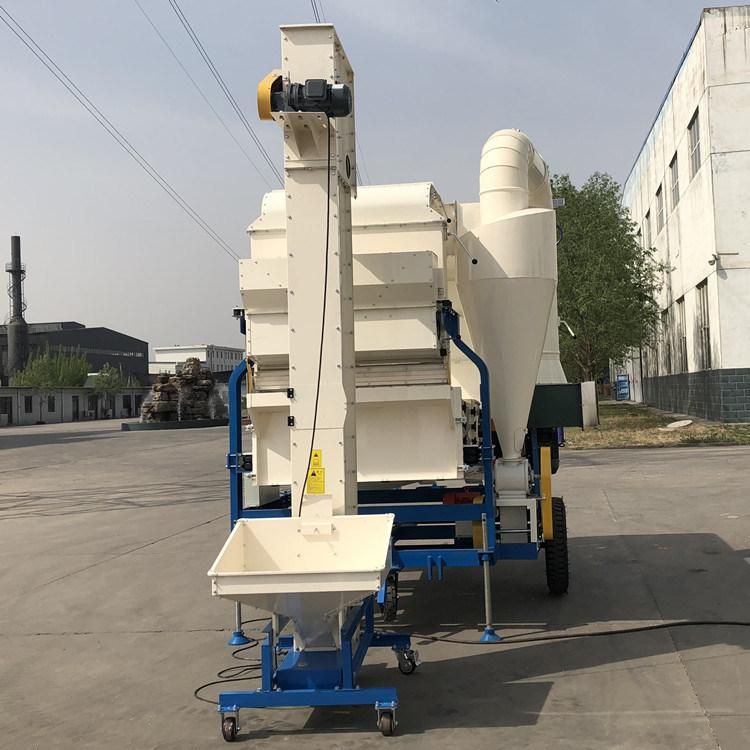

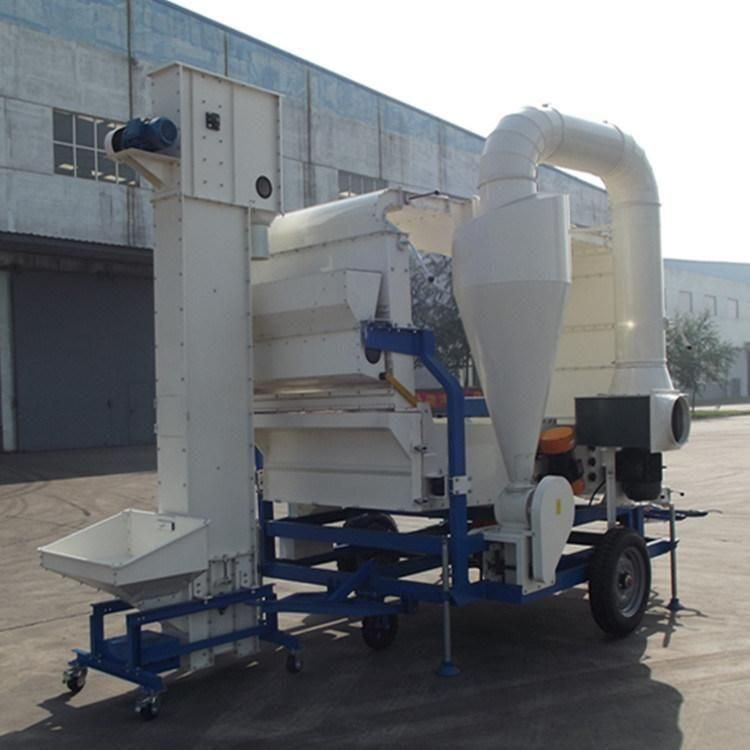

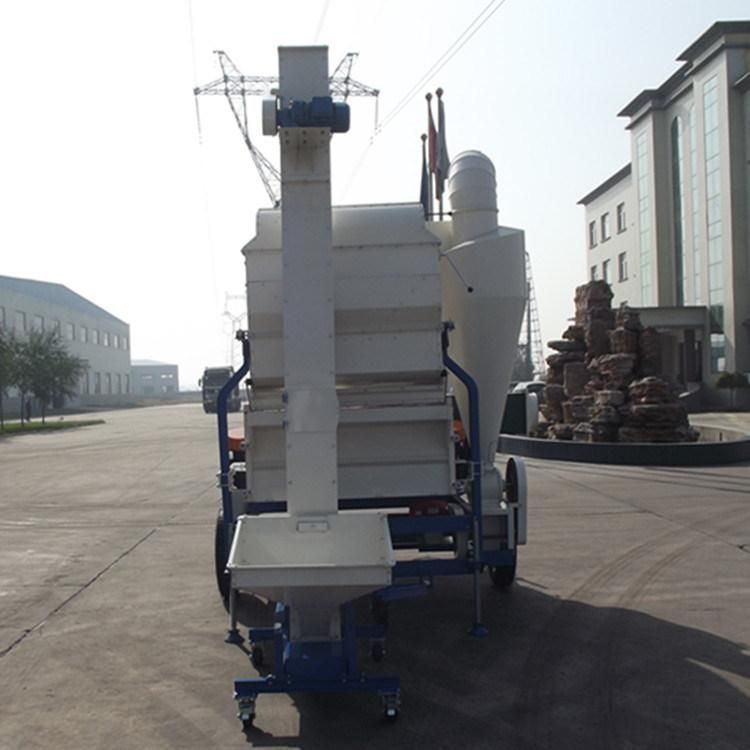

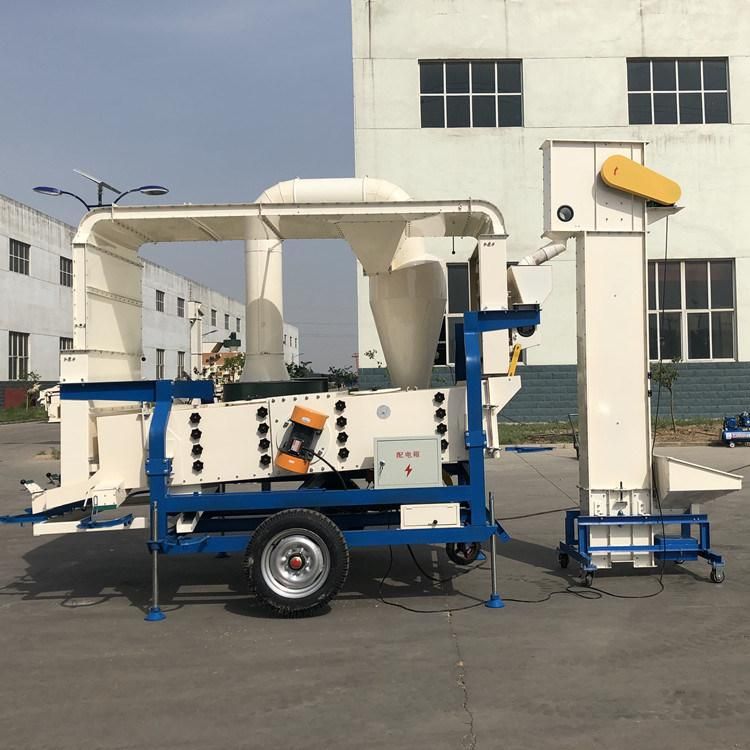

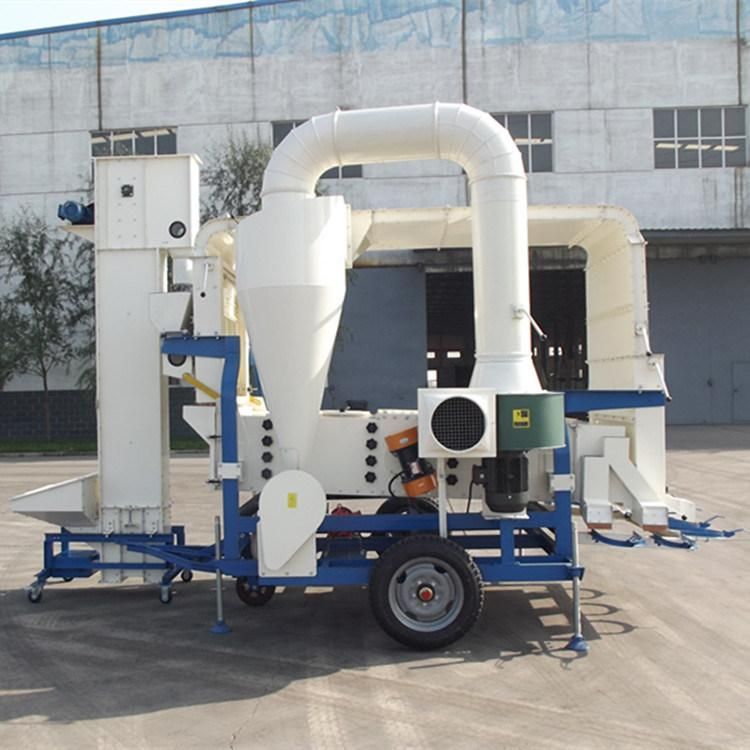

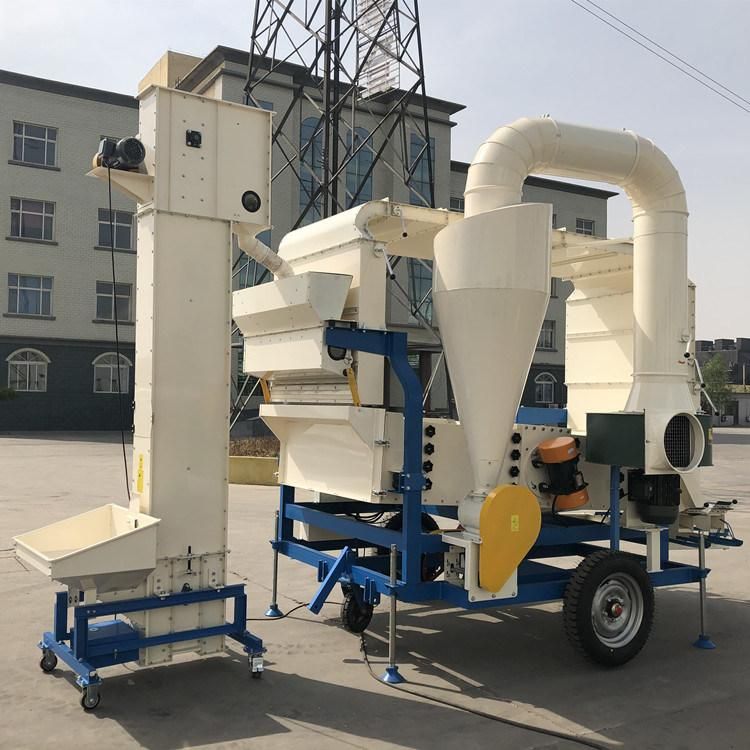

PHOTOS
