16L Payload Precision Precision Agriculture Farming Uav Drone Lower Than P20 P30
Qingdao Zhongfei Intelligent Technology Co., Ltd.- After-sales Service:16 Hours on Time
- Warranty:One Year Guarantee Time
- Installation:No Installation
- Liquid Contained:Medicine
- Spraying Shape:Full Cone
- Volume:16L~30L
Base Info
- Model NO.:U16L-4
- Power Supply:Electric
- Technics:Assembly
- Material:Aviation Carbon Fiber and Aviation Aluminum
- Type:Sprayer Drone
- Sprayer Type:Pump
- Usage:Agriculture
- Applicable Industry:Farms, Home Use, Epidemic Prevention
- Feature:Anti-Fall
- Production Material:Aviation Carbon Fiber and Aviation Aluminum
- Production Folding Size:1070mm*1070mm*370mm
- Max Pesticide Load:18kg
- Aircraft Medicine Box Capacity:16L
- Flight Radius:Less Than 5000m
- Max Takeoff Weight:34kg
- Aircraft Weight:11kg
- Flight Attitude:Less Than 30m
- Flight Duration:20-25minutes
- Condition:New
- Warranty Time:12 Months
- Transport Package:Professional Package Box
- Specification:1 CBM
- Trademark:UNID
- Origin:China
- HS Code:8802200090
- Production Capacity:10000 Unit
Description
Basic Info.
Model NO. U16L-4 Power Supply Electric Technics Assembly Material Aviation Carbon Fiber and Aviation Aluminum Type Sprayer Drone Sprayer Type Pump Usage Agriculture Applicable Industry Farms, Home Use, Epidemic Prevention Feature Anti-Fall Production Material Aviation Carbon Fiber and Aviation Aluminum Production Folding Size 1070mm*1070mm*370mm Max Pesticide Load 18kg Aircraft Medicine Box Capacity 16L Flight Radius Less Than 5000m Max Takeoff Weight 34kg Aircraft Weight 11kg Flight Attitude Less Than 30m Flight Duration 20-25minutes Condition New Warranty Time 12 Months Transport Package Professional Package Box Specification 1 CBM Trademark UNID Origin China HS Code 8802200090 Production Capacity 10000 UnitProduct Description

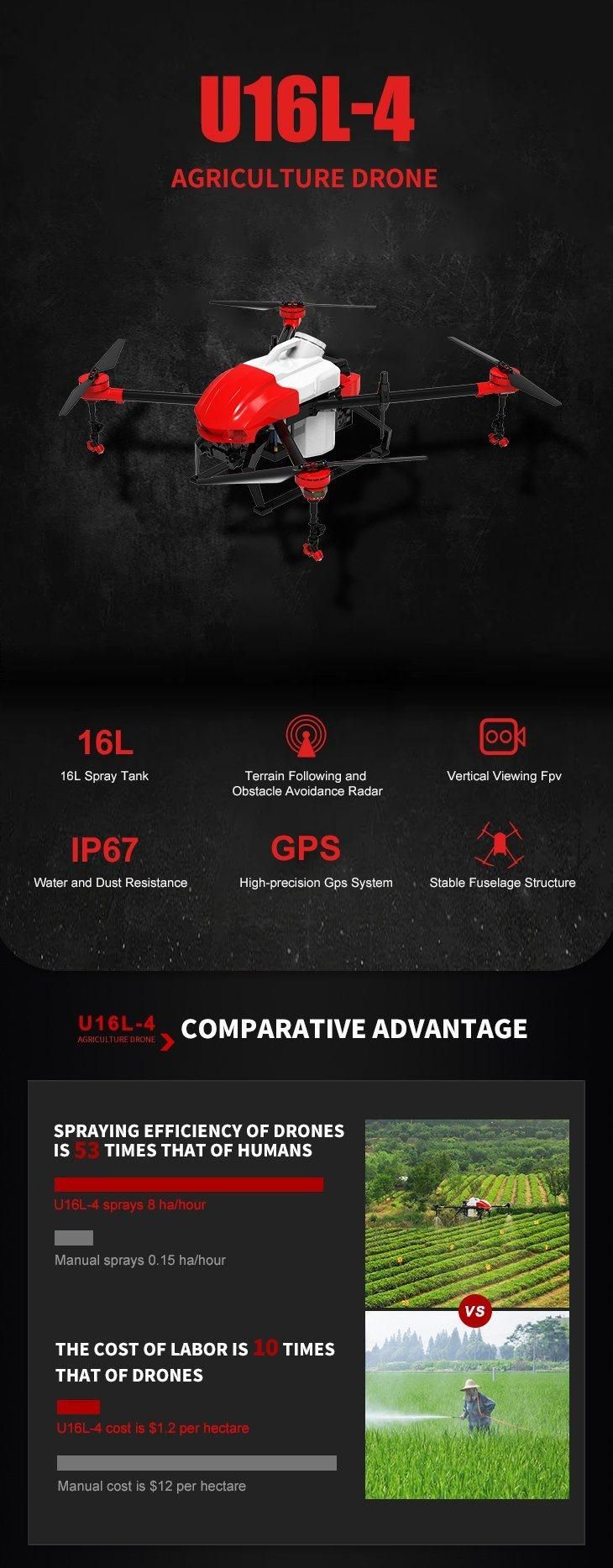

16L payload precision precision agriculture farming uav drone
- OEM & ODM Service - FPV camera
The job is safe as you can see
U16L-4 series plant protectors can clearly present the front scene of plant protectors on the remote control through a 123° wide-angle lens, providing real scene reference for remote obstacle winding flight during operation.
With the help of FPV camera, plant protection aircraft can achieve flight positioning. The pilot can easily set point A/B or navigation point through the real scene image returned by FPV, thus saving the labor required in the past.
Walking or A/B flag bearer, work planning is more time saving and efficient.
Model | U16L-4 |
Product material | Aviation carbon fiber + aviation aluminum |
Product expansion size | 1840mm*1840mm*530mm |
Product folding size | 740mm*370mm*530mm |
Packaging size | 900*450*600mm |
Maximum takeoff weight | 34KG |
Aircraft weight | 12.4KG |
Pesticide Barrel | 16L(standard a bucket) |
Flight altitude | ≤30 meters |
Fly time(unloaded) | 20~25 minutes |
Fly time(loaded) | 10~13 minutes when fully loaded |
Flight speed | 1-10 m / sec |
Structure lift span | ≥10 years |
Spray width | 4-8 meters |
Hovering in the air | Hovering in any direction |
Spray flow | 3-8L/min double pump adjustable |
Spray system | Imported high pressure anti-floating atomizing nozzle |
Atomization point size | 60~90μm |
Fly control | Industrial Version GPS and Controller |
Spray efficiency | 5~6hectares/hour |
Safe takeoff and landing wind speed | ≤5 |
Motor speed | 5000rpm |
Power system | 48V power polymer computer battery |
Charer | AC Input 100-240V |
Lithium-polymer battery | 20000mAh*1 |
