16L Payload 4 Rotor Crop Spraying Agricultural Drone Farming Drone Gewas Spuit Uav Drone with Camera Better Than Xag P20 Price

Qingdao Zhongfei Intelligent Technology Co., Ltd.
  • After-sales Service:24 Hours on Time
  • Warranty:One Year Guarantee Time
  • Installation:No Installation
  • Liquid Contained:Medicine
  • Spraying Shape:Full Cone
  • Volume:16L~30L

Base Info

  • Model NO.:U16L-4
  • Power Supply:Electric
  • Technics:Assembly
  • Material:Aviation Carbon Fiber and Aviation Aluminum
  • Type:Sprayer Drone
  • Sprayer Type:Pump
  • Usage:Agriculture
  • Applicable Industry:Farms, Home Use, Epidemic Prevention
  • Feature:Anti-Fall
  • Production Material:Aviation Carbon Fiber and Aviation Aluminum
  • Production Folding Size:1070mm*1070mm*370mm
  • Max Pesticide Load:18kg
  • Aircraft Medicine Box Capacity:16L
  • Flight Radius:Less Than 5000m
  • Max Takeoff Weight:34kg
  • Aircraft Weight:11kg
  • Flight Attitude:Less Than 30m
  • Flight Duration:20-25minutes
  • Condition:New
  • Warranty Time:12 Months
  • Transport Package:Professional Package Box
  • Specification:1 CBM
  • Trademark:UNID
  • Origin:China
  • HS Code:8802200090
  • Production Capacity:10000 Unit

Description

Basic Info.

Model NO. U16L-4 Power Supply Electric Technics Assembly Material Aviation Carbon Fiber and Aviation Aluminum Type Sprayer Drone Sprayer Type Pump Usage Agriculture Applicable Industry Farms, Home Use, Epidemic Prevention Feature Anti-Fall Production Material Aviation Carbon Fiber and Aviation Aluminum Production Folding Size 1070mm*1070mm*370mm Max Pesticide Load 18kg Aircraft Medicine Box Capacity 16L Flight Radius Less Than 5000m Max Takeoff Weight 34kg Aircraft Weight 11kg Flight Attitude Less Than 30m Flight Duration 20-25minutes Condition New Warranty Time 12 Months Transport Package Professional Package Box Specification 1 CBM Trademark UNID Origin China HS Code 8802200090 Production Capacity 10000 Unit

Product Description


Farming drone gewas spuit uav drone with camera
- OEM  & ODM Service -  Upgraded Radar. Easier Operation.

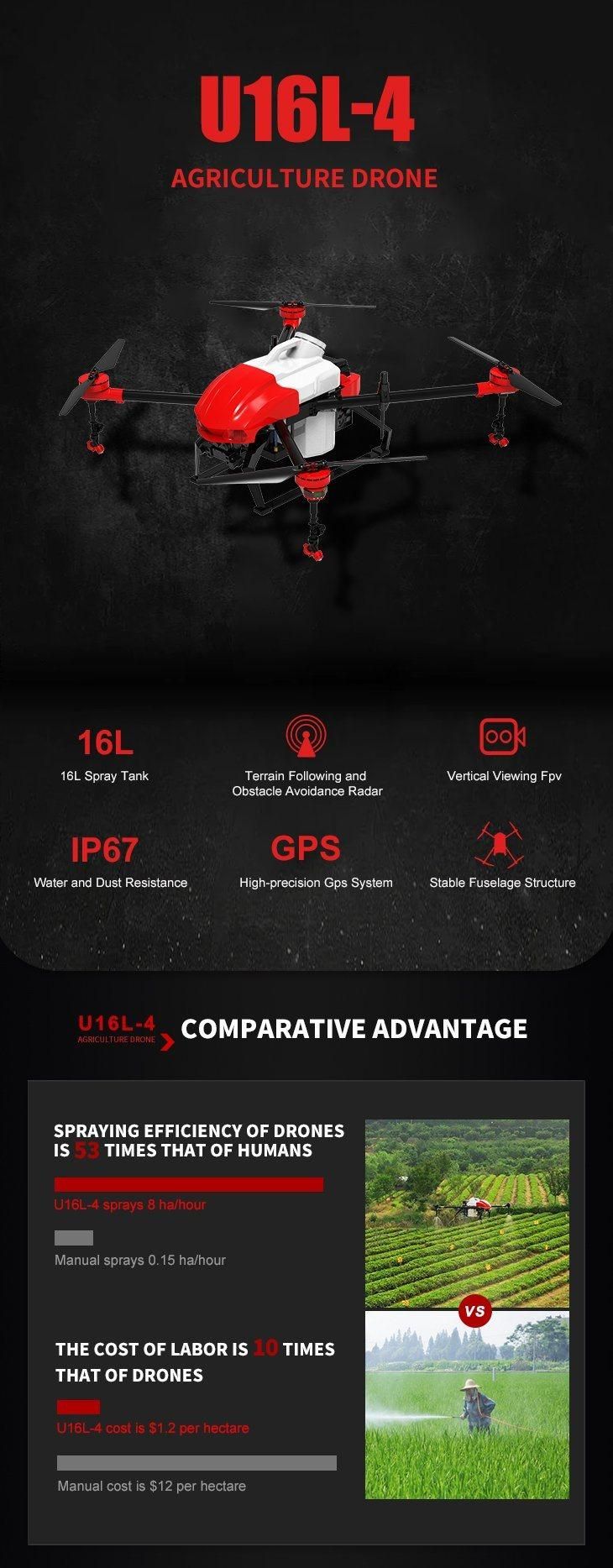

The U16L-4's upgraded radar system can sense the operating environment during the day or at night, without being affected by light or dust. It has greatly improved flight safety with forward and backward obstacle avoidance and a horizontal FOV (field of view) of 100° It can also detect the angle of a slope and adjust to it automatically even in mountainous terrain.The U16L-4 is also equipped with real-time image monitoring system and night searchlight, so that you can easily monitor the operating environment of the equipment.
 ModelU16L-4
 Product materialAviation carbon fiber + aviation aluminum
 Product expansion size1840mm*1840mm*530mm
 Product folding size740mm*370mm*530mm
 Packaging size900*450*600mm
 Maximum takeoff weight34KG
 Aircraft weight12.4KG
Pesticide Barrel16L(standard a bucket)
Flight altitude≤30 meters
Fly time(unloaded)20~25 minutes
Fly time(loaded)10~13 minutes when fully loaded
 Flight speed1-10 m / sec
 Structure lift span≥10 years
 Spray width4-8 meters
 Hovering in the airHovering in any direction
 Spray flow3-8L/min double pump adjustable
 Spray systemImported high pressure anti-floating atomizing nozzle
 Atomization point size60~90μm
 Fly control Industrial Version GPS and Controller
 Spray efficiency5~6hectares/hour
 Safe takeoff and landing wind speed≤5
Motor speed 5000rpm
Power system48V power polymer computer battery
Charer AC Input 100-240V
Lithium-polymer battery20000mAh*1
