• Model NO.：ZL08
• Motor Power(Kw)：1.5
• Transport Package：Wood Box
• Trademark：YUFCHINA
• Origin：Henan, China (Mainland)
• Production Capacity：100 Set,Sets Per Month

Basic Info.

Model NO. ZL08 Motor Power(Kw) 1.5 Transport Package Wood Box Trademark YUFCHINA Origin Henan, China (Mainland) Production Capacity 100 Set/Sets Per Month

Product Description

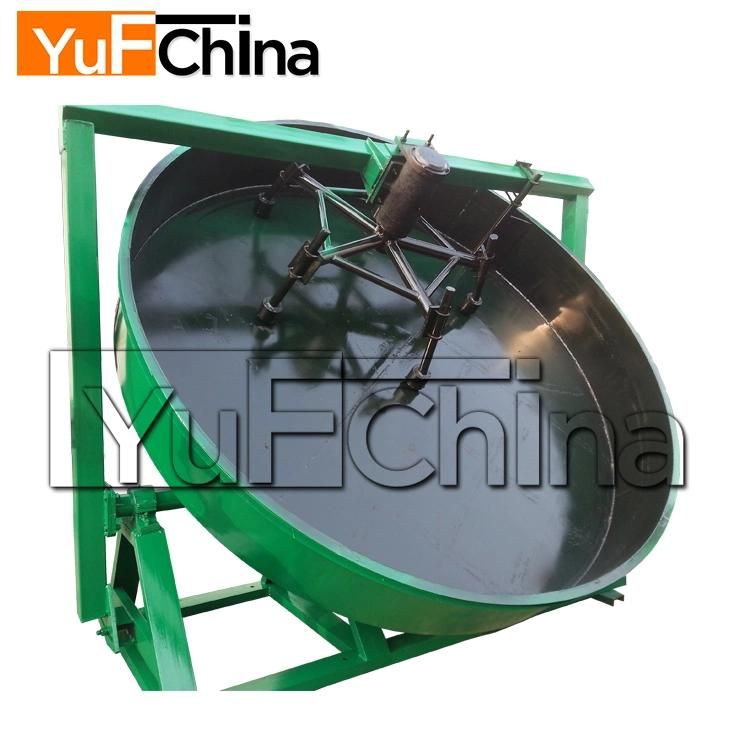

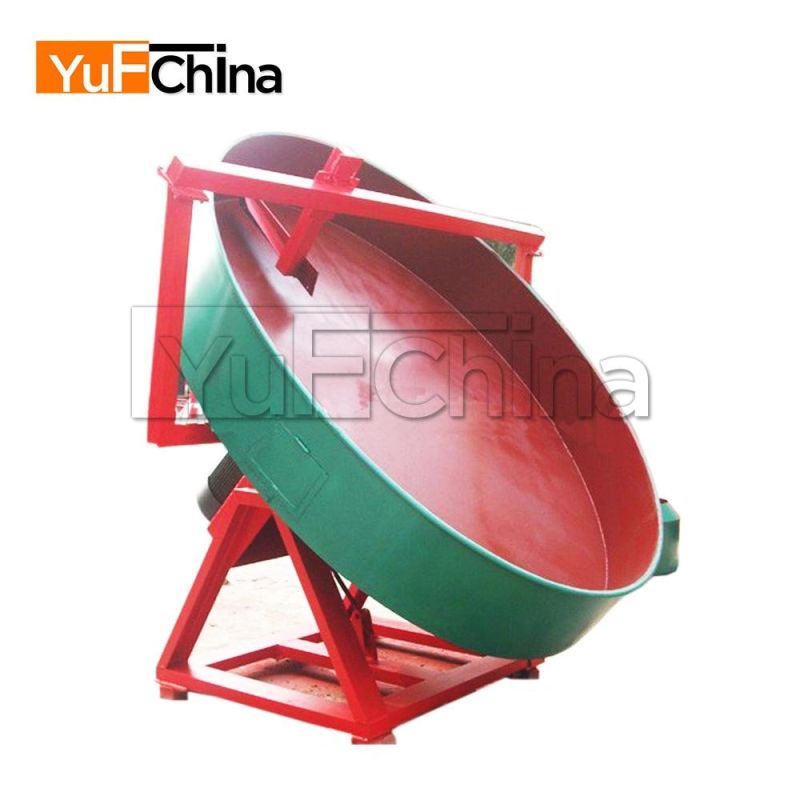

High output disc organic fertilizer granulator


Introduction of disc organic fertilizer granulator

         Disc granulator is widely used in the processing of spherical particles of biological organic fertilizer, such as pulverized coal, cement, clinker, chemical fertilizer and other materials.

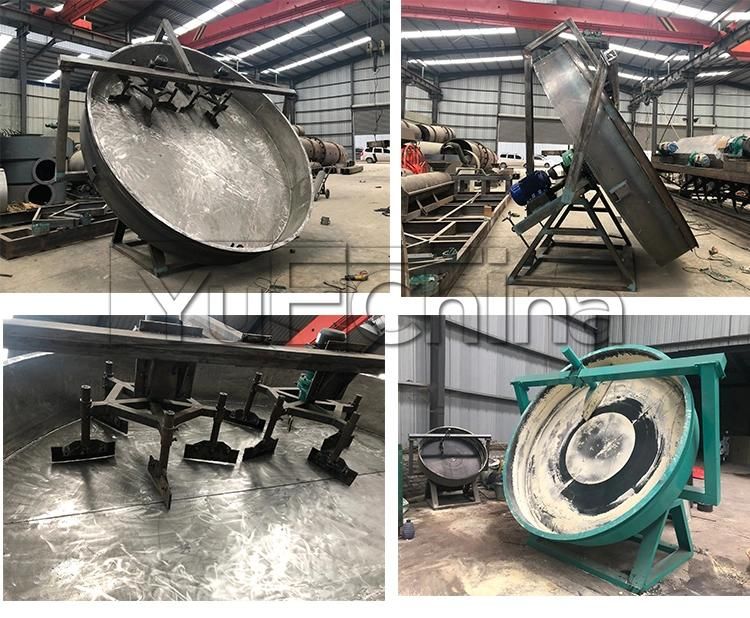

        The reducer and motor are driven by flexible belts, which ensures smooth starting, reduces impact and cushions, and improves running life. The bottom of the granulating disk is strengthened with multiple radiant steel plates, which is durable and no deformed. Thicker, heavier, and sturdy base design, no anchor bolts required with smooth operation. Disc granulator is a type of granulator. The disc granulator is lined with high-strength glass fiber reinforced plastic. It has the advantages of uniform granulation, high granulation rate, stable operation, rugged equipment and long service life. It is a very ideal granulation equipment for the fertilizer.



Disc Pan Granulation Process:
      Through rotating movement pan, the dis granulator achieve granulating the powered materials together with the water and binder. To be specific, a variety of dry powder materials enter from the top of granulator, pre-compressed and transferred into the pelleting disc, after uniform adhesion, constant rotating and spraying device, forming into ball shape pellets. In order to prevent materials from adhering on the wall, we also design the automatic removing mixture device within the upside of granulating disc, thereby prolonging the service life of the granulating machine.



Technical Parameter of Disc Pan Granulator

Model	Diameter(mm)	Side height(mm)	Volume(m³)	Rotation speed (r/min)	Motor power(kw)	Capacity(t/h)
ZL08	800mm	200	0.25	25	1.5	0.1-0.2
ZL10	1000mm	220	0.4	21	2.2	0.3-0.5
ZL15	1500mm	300	1.1	17	5.5	0.5-0.8
ZL25	2500mm	500	2.5	13.6	7.5	1.0-1.5
ZL28	2800mm	550	3.7	13.6	11	1.0-2.5
ZL30	3000mm	550	4.2	11	11	2.0-3.0
ZL32	3200mm	600	4.8	10	11	2.0-3.5
ZL36	3600mm	600	6.1	10	15	3.0-5.0

Advantages and Applications of Pan Granulator

1. The disc organic fertilizer granulator is one of the common machine in the fertilizer industry.
2. It is applied to the medium or low concentration, small-scale production. The disc is set and adjusted between 40 - 55 degree.
3. The fertilizer granulator is drived by motor reducer gear to join mixed good materials fertilizer.
4. Because of rise in the force of gravity scroll down, in the above several under the action of forces plate material, gradually formed the nuclear straight to finished product size, round plate by the spill.
5. The disc organic fertilizer granulator is of high granulating rate of being ball particles, high strength, round particles, anti-corrosive, easily operated, convenient maintenance.

Now Contact us to get best price of disc fertilizer granulator immediately.
