• Model NO.：D30L-8
• Power Supply：Electric
• Technics：Assembly
• Material：Aviation Carbon Fiber and Aviation Aluminum
• Type：Sprayer Drone
• Sprayer Type：Pump
• Usage：Agriculture
• Applicable Industry：Farms,Home Use,Epidemic Prevention
• Feature：Anti-Fall
• Production Material：Aviation Carbon Fiber and Aviation Aluminum
• Production Folding Size：850mm*570mm*1300mm
• Max Pesticide Load：25kg
• Aircraft Medicine Box Capacity：22L
• Flight Radius：Less Than 5000m
• Max Takeoff Weight：45kg
• Aircraft Weight：10kg
• Flight Attitude：Less Than 30m
• Flight Duration：13-33minutes
• Condition：New
• Warranty Time：12 Months
• Transport Package：Professional Package Box
• Specification：1 CBM
• Trademark：UNID
• Origin：China
• HS Code：8802110010
• Production Capacity：10000 Unit

Basic Info.

Model NO. D30L-8 Power Supply Electric Technics Assembly Material Aviation Carbon Fiber and Aviation Aluminum Type Sprayer Drone Sprayer Type Pump Usage Agriculture Applicable Industry Farms,Home Use,Epidemic Prevention Feature Anti-Fall Production Material Aviation Carbon Fiber and Aviation Aluminum Production Folding Size 850mm*570mm*1300mm Max Pesticide Load 25kg Aircraft Medicine Box Capacity 22L Flight Radius Less Than 5000m Max Takeoff Weight 45kg Aircraft Weight 10kg Flight Attitude Less Than 30m Flight Duration 13-33minutes Condition New Warranty Time 12 Months Transport Package Professional Package Box Specification 1 CBM Trademark UNID Origin China HS Code 8802110010 Production Capacity 10000 Unit

Product Description

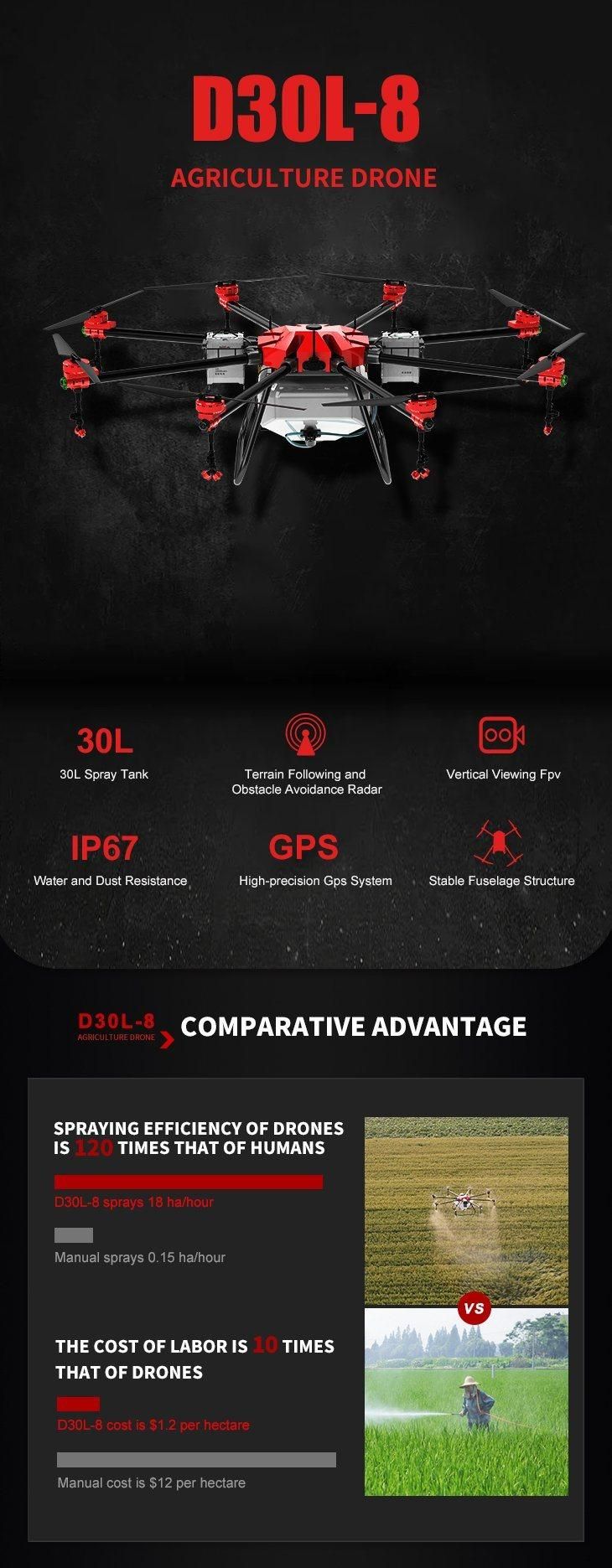

China Manufacturer 30L payload automatic agricultural drone sprayer
- OEM  & ODM Service -

Model	D30L-8
Product material	Aviation carbon fiber + aviation aluminum
Product expansion size	3090mm*3090mm*910mm
Product folding size	900mm*730mm*1760mm
Packaging size	1730mm*1200mm*790mm
Maximum takeoff weight	75KG
Aircraft weight	20-21KG
Pesticide Barrel	30L
Flight altitude	≤30 meters
Fly time(unloaded)	20~2530 minutes
Fly time(loaded)	10~13minutes when fully loaded
Flight speed	1-10 m / sec
Structure lift span	≥10 years
Spray width	6-12 meters
Hovering in the air	Hovering in any direction
Spray flow	8-10L/min
Spray system	Imported high pressure anti-floating atomizing nozzle
Atomization point size	60~90μm
Fly control	Industrial Version GPS and Controller
Spray efficiency	≥12hectares / hour
Safe takeoff and landing wind speed	≤5
Motor speed	5000rpm
Power system	48V power polymer computer battery
Charer	AC Input 100-240V
Lithium-polymer battery	20000mAh*2

Features
1. The fuselage adopts a closed design, which can prevent pesticides from entering the flight control system and provide safety guarantee for long-term operation;
2. The plant protection machine has built-in GPS and compass module, with fixed-height and fixed-point flight function, which can well maintain the spray height and spray route accuracy of the operation;
3. The height limit and flight speed limit of spraying operation can be set. The high-pressure spraying system has good atomization effect. Under the wind pressure of the aircraft, the drug mist has the characteristics of strong penetration. Leaf face.
Avoid battery impact, internal short circuit may be caused after the impact, there will be hidden safety hazards (there is a precedent before)
