• Model NO.：5BY-5B
• Trademark：SYNMEC
• Origin：Hebei, China
• HS Code：8437109000
• Production Capacity：50 Sets Per Month

Basic Info.

Model NO. 5BY-5B Trademark SYNMEC Origin Hebei, China HS Code 8437109000 Production Capacity 50 Sets Per Month

Product Description

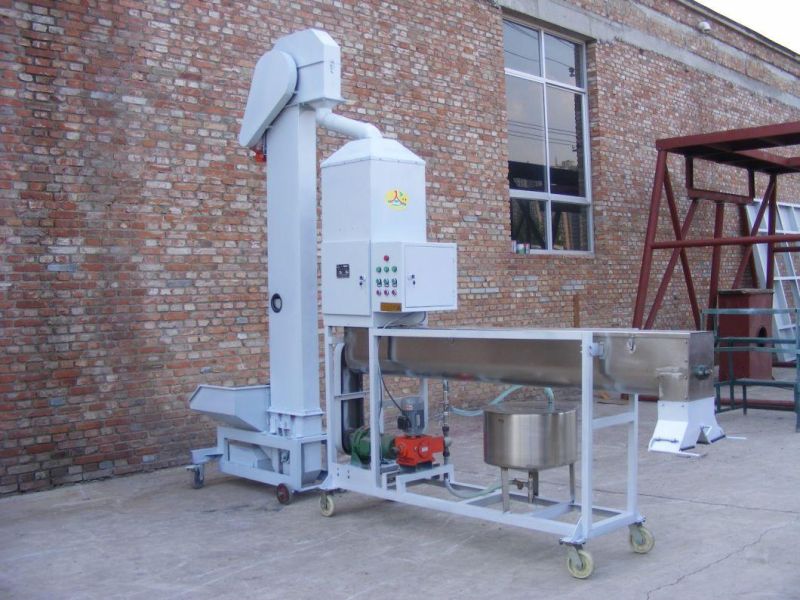

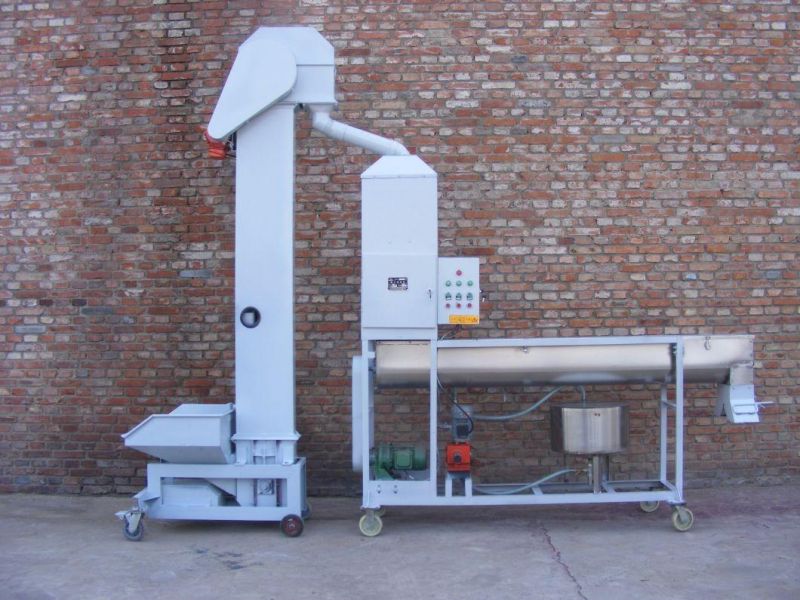

China Best Quality Agricultural machinery 5BY-5B seed coating machine

Introduction of China Best Quality Agricultural machinery 5BY-5B seed coating machine
The 5BY-5B Seed Treating Machine is very good for coating vegetable seed and grain seed, such as seeds of wheat, barley, maize, sorghum, soybeans, cotton, chili, grass, etc.

Principle of China Best Quality Agricultural machinery 5BY-5B seed coating machine

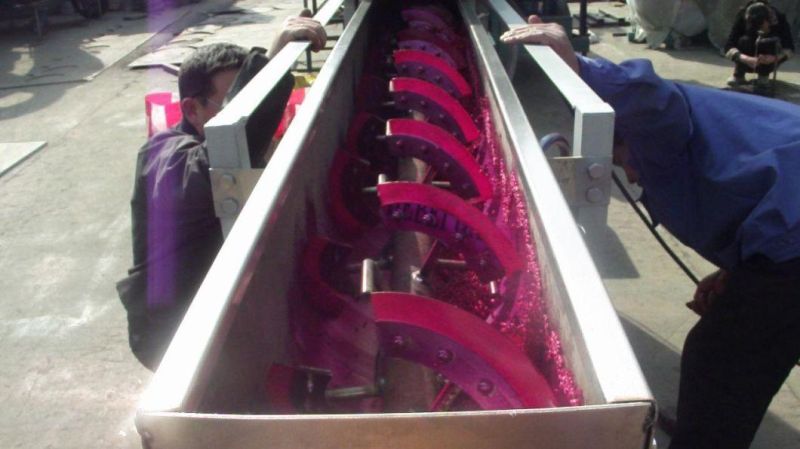

Seeds can be continuously fed into mixing cylinder through feeding bucket elevator, at the same time quantitative medicine liquid will be supplied by dosing pump, and then atomized by the high speed centrifugal rotary disk, following adhere to the surface of seeds, at the end completely mixed by the auger in the cylinder.

High speed centrifugal rotary disk (for atomizing the liquid medicine) and large stainless steel cylinder (for mixing by auger rolling), can have a good coating effect.

Features of China Best Quality Agricultural machinery 5BY-5B seed coating machine
-Centrifugal rotary disk for atomizing
-Overload and overheat protection
-Dosing pump for quantitative medicine supply


Model	Capacity(T/H)	Power(KW)	Weight(KG)	Dimension  L× W× H(mm)	Agent Supply Model
5BY-2	2	1.47	200	1600× 800× 1500	Spoon
5BY-5A	5	6	800	2200× 900× 2500	Spoon
5BY-5B	5	2.3	700	2150× 800× 2400	Dosing Pump
