• Model NO.：5XZ-5B
• Cleaning Rate：98%
• Warranty：1 Year
• Transport Package：Wooden Case or Container
• Specification：ISO9001-2008, TUV, SGS SONKAP
• Trademark：SYNMEC
• Origin：China
• HS Code：84371090
• Production Capacity：1000 Set,Year

Basic Info.

Model NO. 5XZ-5B Cleaning Rate 98% Warranty 1 Year Transport Package Wooden Case or Container Specification ISO9001-2008, TUV, SGS SONKAP Trademark SYNMEC Origin China HS Code 84371090 Production Capacity 1000 Set/Year

Product Description

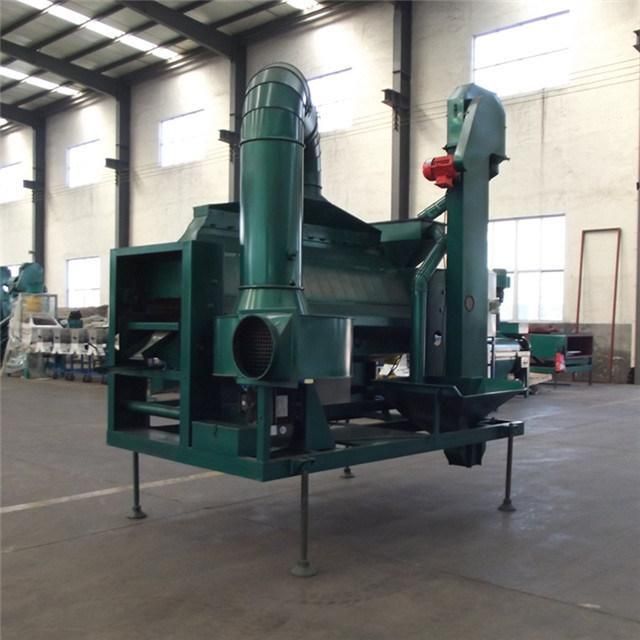

Quinoa Gravity Separator For Maize Wheat Cassia Seed(5XZ-5B)
Introduction of QuinoaGravity Separator For Maize Wheat Cassia Seed(5XZ-5B)
Cassia Seed Quinoa Maize Wheat Gravity Separator(5XZ-5B) is the Suction Type with Dust Cyclone Separator, used for separating grain and seed which have same shape but different in gravity, finally obtain the best seed and grain which will be used for sowing.

Application of QuinoaGravity Separator For Maize Wheat Cassia Seed(5XZ-5B)
Cassia Seed Quinoa Maize Wheat Gravity Separator(5XZ-5B) can efficiently remove moldy kernel, immature shriveled, insect damaged seed or broken seed to ensure maximum quality of the final product. The Beans Gravity Separator can be used to separate most kinds of seed and grains, such as coffee bean, wheat, barely, maize, corn, sunflower seed, etc.

Working Principle of QuinoaGravity Separator For Maize Wheat Cassia Seed(5XZ-5B))
By air aspiration and sieve oscillation, the seed is fluidized and stratified. Heavy seed (good seed) sink into bottom layer of material on the sieve while the bad seed (light seed) suspends to the top layer. After stratified, materials go forward to the discharging part. Bottom layer good seed fall through the sieve discharge from outlets. The light seed with bad quality will be discharged directly. Mixture quality seed through sieves and return back to feeding hopper via vibrating material reflow gear.


Model	Capacity (ton/hour)	Power   (KW)	Weight    (KG)	Dimension Length*Width*Height(mm)	Sieve Size Length*Width(mm)	Remarks
5XZ-5B	5	9	1550	4000*1900*3100	2000*625	Air Suction Type
