• Model NO.：5XCX-5
• Material：Stainless Steel
• Power：220-415V
• Hz：50, 60
• MOQ：1 Set
• Transport Package：Plywood Case Package or Mill′s Standard
• Specification：SGS, ISO9001, TUV, SONCAP
• Trademark：SYNMEC
• Origin：Hebei, China
• HS Code：8437109000
• Production Capacity：300 Set,Hour

Basic Info.

Model NO. 5XCX-5 Material Stainless Steel Power 220-415V Hz 50, 60 MOQ 1 Set Transport Package Plywood Case Package or Mill′s Standard Specification SGS, ISO9001, TUV, SONCAP Trademark SYNMEC Origin Hebei, China HS Code 8437109000 Production Capacity 300 Set/Hour

Product Description

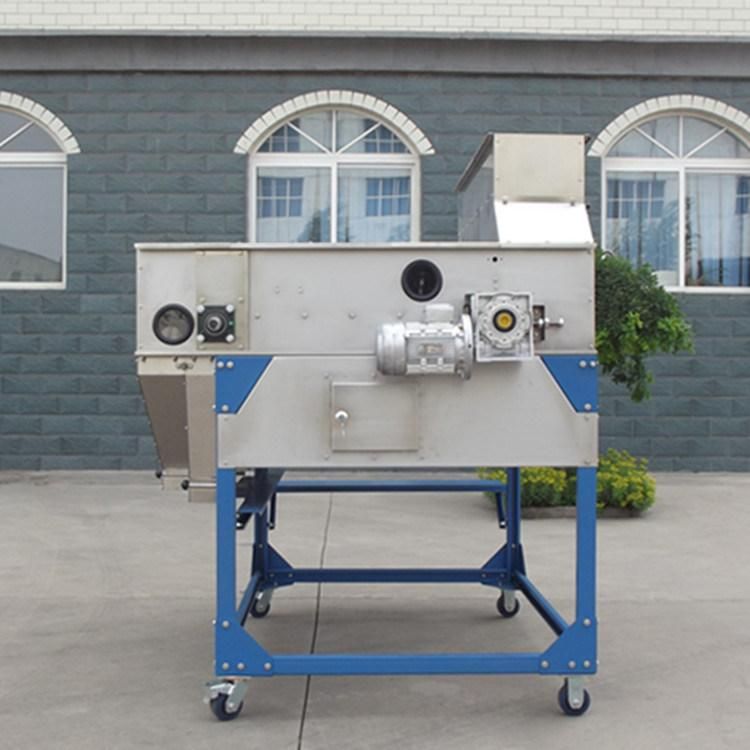

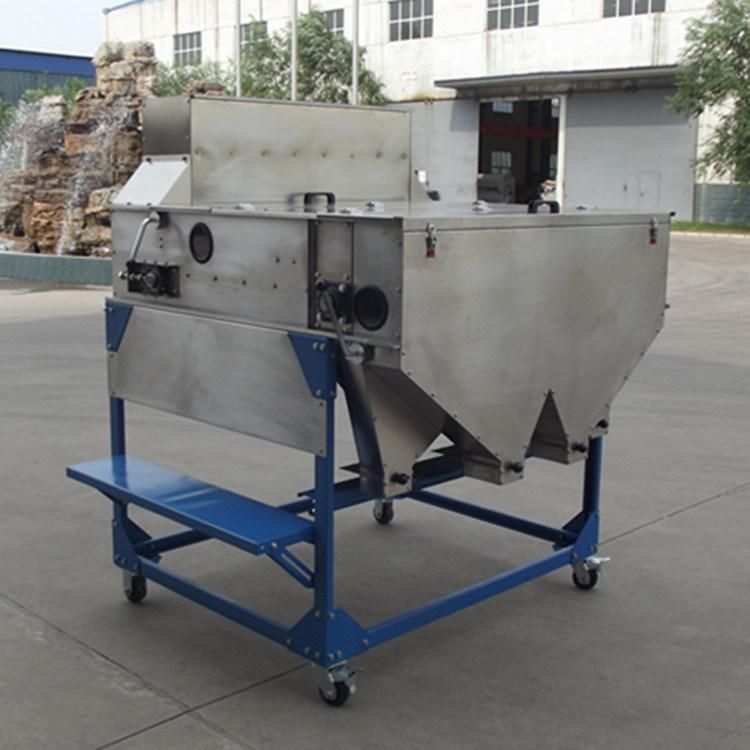

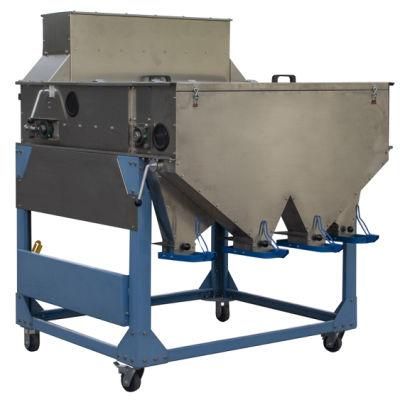

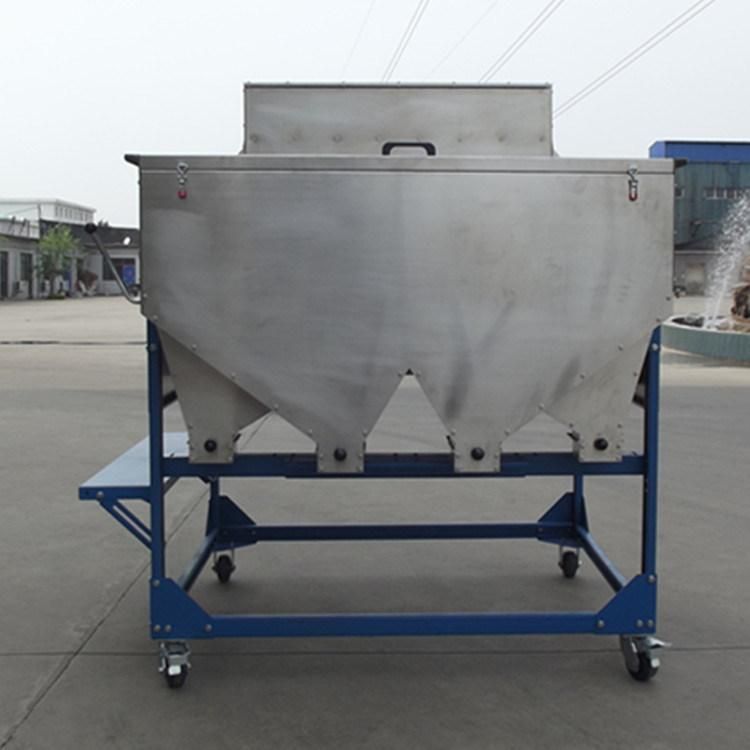

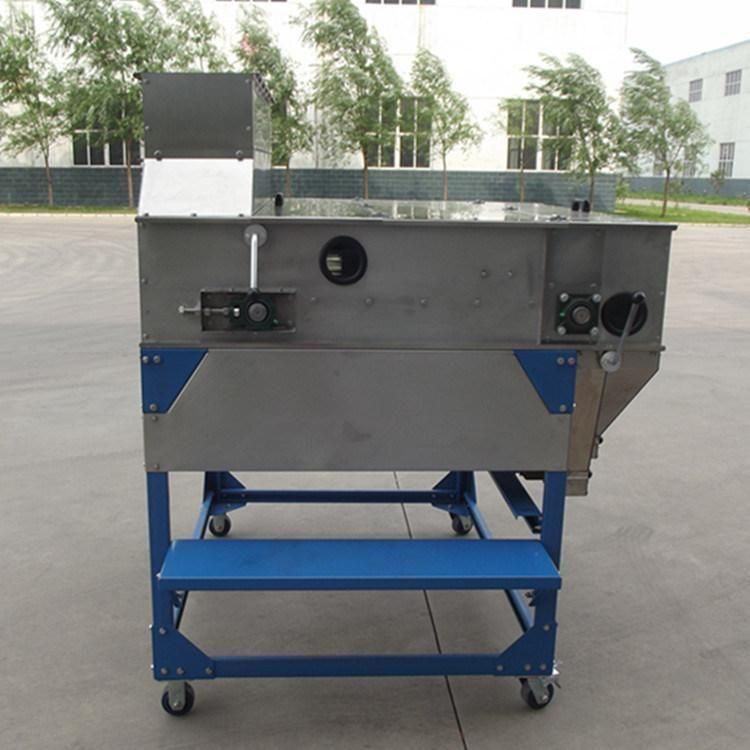

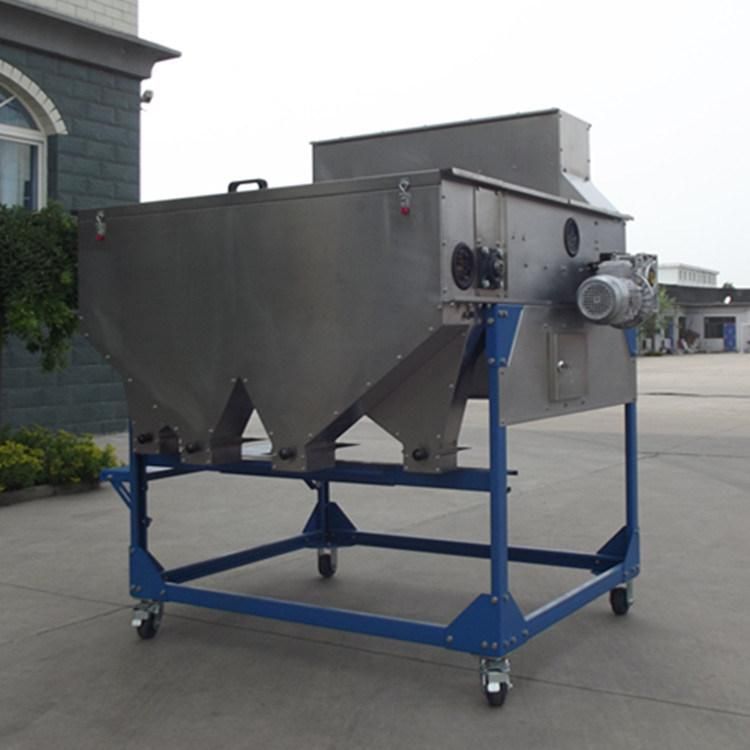

Grain Seed Sorting Magnetic Separator

INSTRODUCTION of 5XCX-5 Grain Seed Sorting Magnetic Separator

5XCX-5 Grain Seed Sorting Magnetic Separator is used to separate metals or magnetic clods from grain.
Grain mixed with metals or clods go through a closed strong magnetic field in appropriate speed. Due to the different attraction strength of the magnetic field, metal, soil and clods are separated from grain.

Grain Seed Sorting Magnetic Separator is 304 stainless steel construct, strict magnetic closure with less magnetic leakage.
14000 gauss magnetic strength and 1300mm width magnetic election surface ensure magnetic separator high capacity and working efficiency

Model	5XCX-5
Dimension (L×W×H)	1800×1800×2000 mm
Capacity	5000kg/h
Width for magnetic surface	1300mm
clod election	99%
Power	0.75KW
