Agricultural Machinery 20 Disc Harrow
Shandong Yuntai Machinery Co., Ltd.- After-sales Service:Yuntai
- Type:Disc Harrow
- Application Field:Agriculture
- Farming Policy:Dry Cultivating Machinery
- Power Source:Tractor
- Operation:Soil Preparation Machinery, Movable Operation
Base Info
- Model NO.:1BZY
- Traction Type:Traction
- Drive Type:Tractor Trailedd
- Arbor Configuration:Vertical Shaft
- Color:Blue
- Warranty:Yuntai
- Transport Package:Accordingly
- Specification:65Mn steel
- Trademark:yunhai
- Origin:China
- HS Code:84321000
- Production Capacity:200 Sets,Month
Description
Basic Info.
Model NO. 1BZY Traction Type Traction Drive Type Tractor Trailedd Arbor Configuration Vertical Shaft Color Blue Warranty Yuntai Transport Package Accordingly Specification 65Mn steel Trademark yunhai Origin China HS Code 84321000 Production Capacity 200 Sets/MonthProduct Description

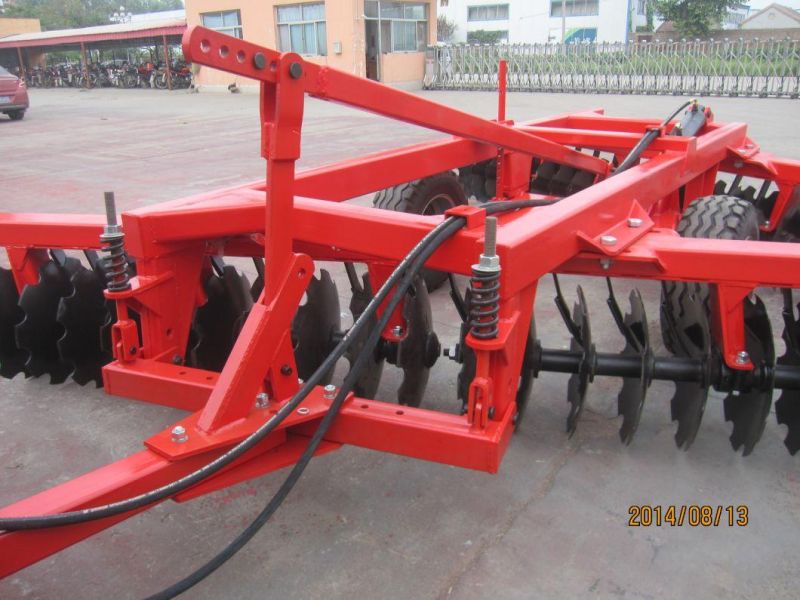

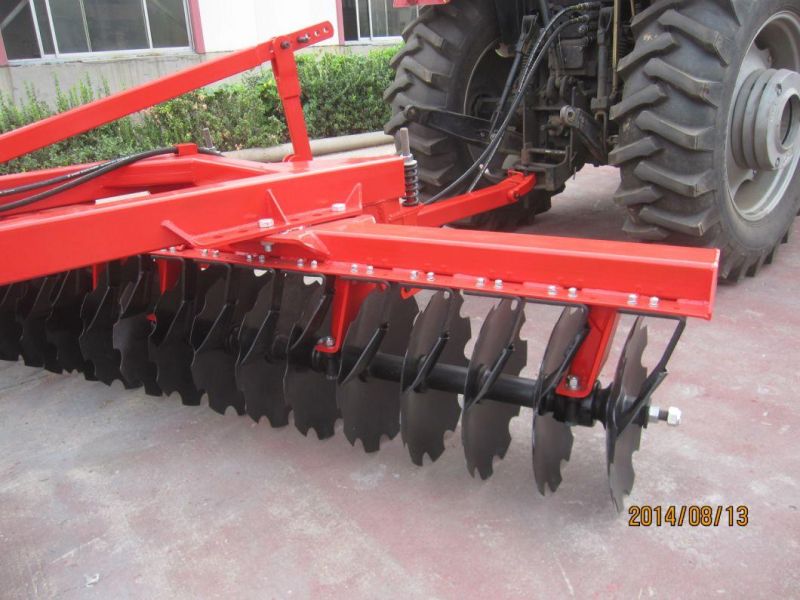

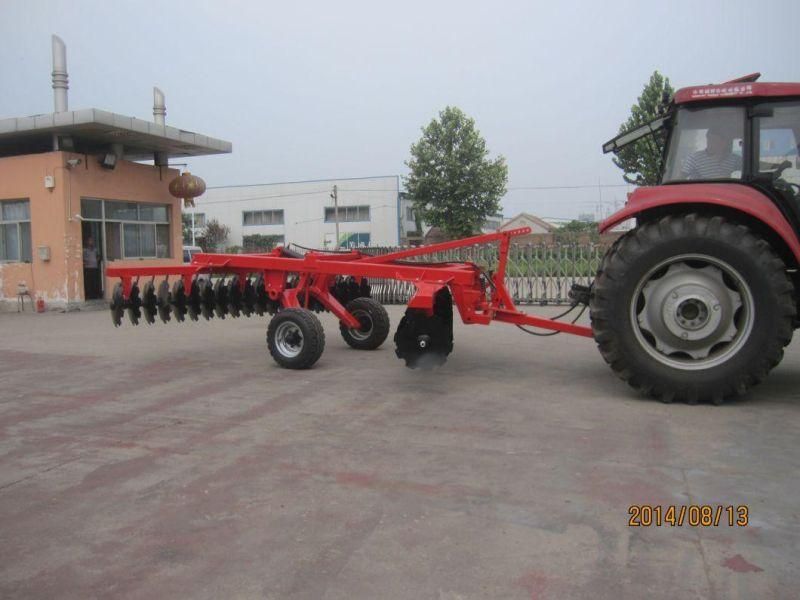

1BZY HYDRAULIC PRESSURE OFFSET HEAVY DISC HARROW
The traction type hydraulic offset heavy disc harrow is mainly suitable for smashing the stubble before ploughing, breaking the surface knot, cutting the straw into the field, breaking up the clods after ploughing, leveling and protecting the hoe, etc., and can also replace the plough on the mature land to carry out the soil ploughing operation. The work efficiency is high, the power utilization is reasonable, and the ability to break up the soil is strong. After the working, the surface is smooth and the soil is loose. It has strong adaptability to the filed with heavy soil, wasteland and weeds.



Model | Number of disc | Size of disc | Working width (mm) | Working depth (mm) | Weight (kg) | Matched tractor (hp) | Note (Bearing Assembly) |
1BZY-1.8 | 16 | 610x6 | 1800 | 150-200 | 1420 | 70-85 | Grease or oil bath |
1BZY-2.0 | 18 | 660x6 | 2000 | 180-220 | 1580 | 85-100 | Grease or oil bath |
1BZY-2.2 | 20 | 660x6 | 2200 | 180-220 | 1660 | 100-120 | Grease or oil bath |
1BZY-2.5 | 24 | 660x6 | 2500 | 180-220 | 2100 | 125-150 | Grease or oil bath |
1BZY-3.0 | 28 | 660x6 | 3000 | 180-220 | 2300 | 150-180 | Grease or oil bath |
1BZY-3.5 | 32 | 660x6 | 3500 | 180-220 | 2850 | 150-180 | Grease or oil bath |
1BZY-4.0 | 36 | 660x6 | 4000 | 180-220 | 3100 | 180-200 | Grease or oil bath |
