• Model NO.：JLSD1500
• Voltage：380V 50Hz 3phase or Customized
• After-Sales Service Provided：Engineers Available to Service Machinery Overseas
• Transport Package：Container
• Specification：4350*2300*4200mm
• Trademark：Kowloon
• Origin：China
• HS Code：84659600
• Production Capacity：300 Sets,Year

Basic Info.

Model NO. JLSD1500 Voltage 380V 50Hz 3phase or Customized After-Sales Service Provided Engineers Available to Service Machinery Overseas Transport Package Container Specification 4350*2300*4200mm Trademark Kowloon Origin China HS Code 84659600 Production Capacity 300 Sets/Year

Product Description

Capacity 3-5t/H Wood Sawdust Making Machine 1-10mm Sawdust Machine

Introduction

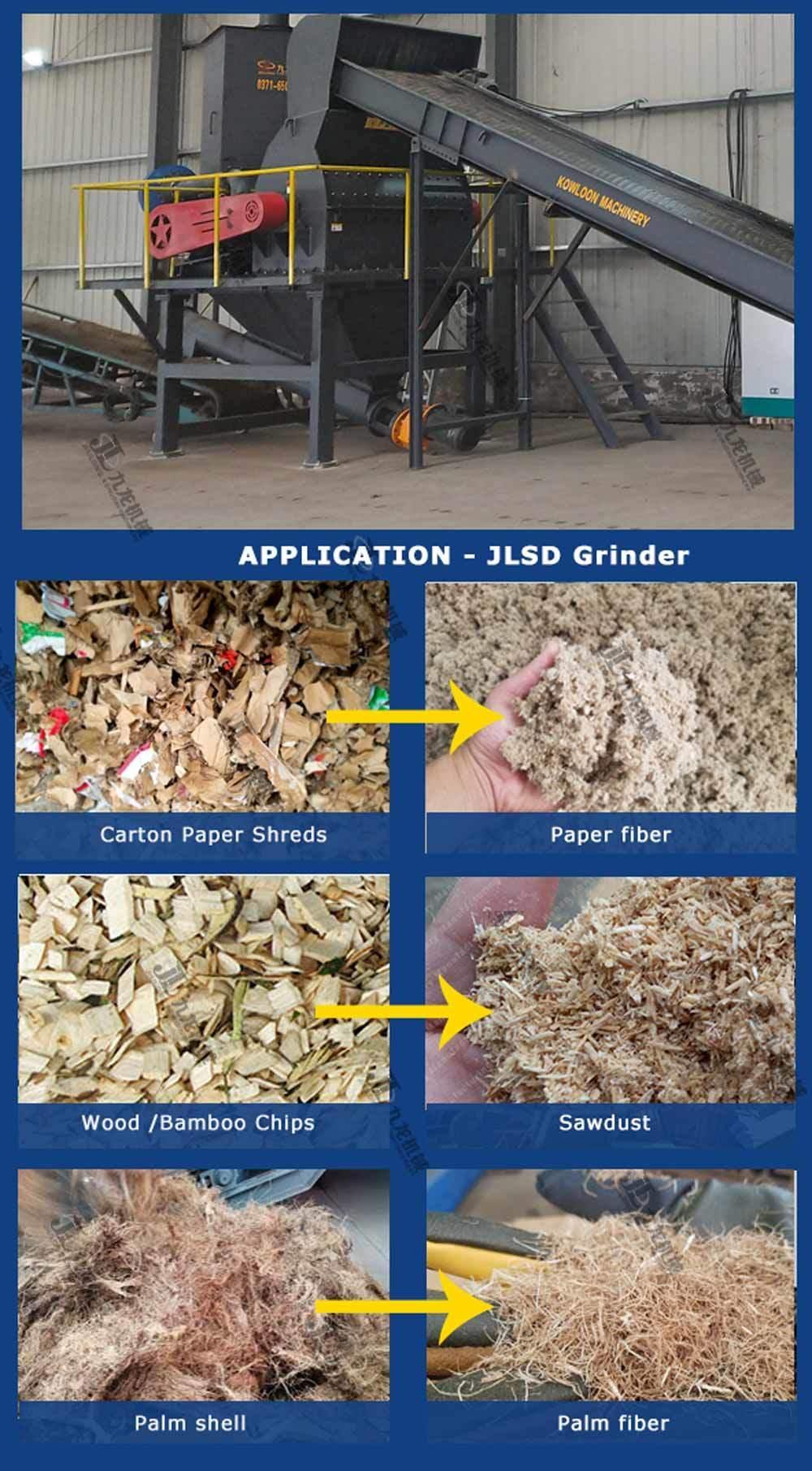

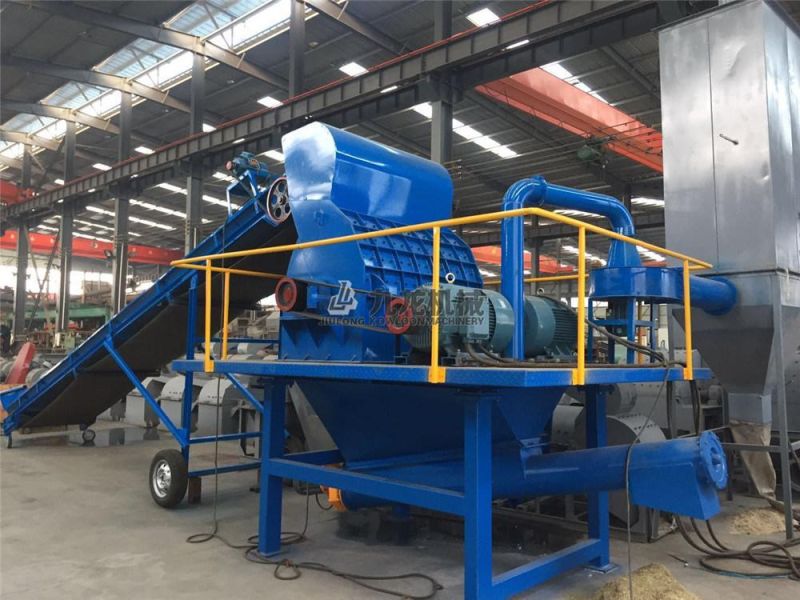

JLSD hammer grinder application: maximum 300x300mm wood chips, bamboo chips, cotton stem chips, cardboard shreds, white paper shreds, textile shred and other fabric waste pieces. These raw materials can be grinded into 20x20mm and smaller particles, these granules or particles widely used as basic raw material of making paper, particleboard, fiberboard, non wood-based board and pulping and papermaking.

Technical Parameter:

Model	JLSD1500
Infeed port size	1500*450mm
Discharging port size	Dia.273mm
Number of knives	66pcs
Working capacity	5-8ton/h
End product size	3-30mm(screen customizable)
Main motor	55+55kw
Discharging conveyor motor	5.5kw
Feeding conveyor motor	4KW
Hydraulic motor	4KW
Dust collector motor	2.2kw
Dimension	3150*3250*3350mm
Weight	5500kg

Features:

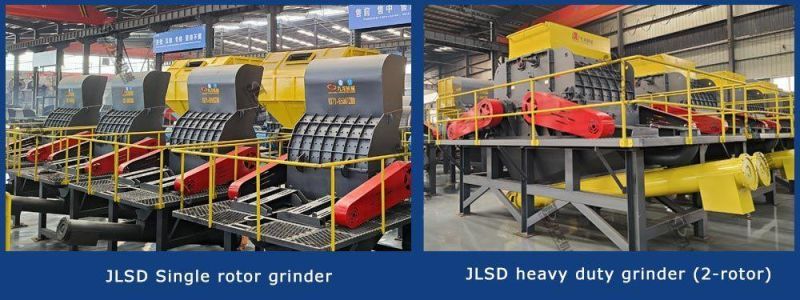

-  JLSD1500 hammer grinder equipped two 55kw/75kw motors to drive single rotor. heavy duty model JLSD1500D grinding machine equipped four 55kw/75kw motors to drive two rotors, strong drive force, high output
-     Enclosed design, equipped with pulse dust collector and discharge by enclosed screw conveyor, ensure working in low dust condition, workable inside workshop
-     High rotary speed, is able to process fabric into fiber, process cardboard into paper fiber, process wood chips into sawdust...etc
-     Screen mesh size is customized for different requirements on size of end product.
-     Grinding room is open able by hydraulic, ease to maintenance and hammers replacement


Delivery &Shipping for hammer mill

1.Plastic wraps to protect wood shredder, tire shredder from dust, moisture and corrosion.
2. Wooden case for compact machine or wearing parts as the outside package. Or according to the customer requirements.
3.Excellant logistic team to guarantee the shredder machines to be safely shipped to customer warehouse, no extra fee on export or import on custom.

Kowloon Service
  1. Pre-sales: Provide fitted solution and offer to customers, is able to adjust the layout of complete line to fit customers' working area, also provide technical support 24 hours service online.

2. After sales:
Kowloon skilled technicians are experienced at oversea installation, therefore they are available to assist with onsite installation, commissioning & training on request. Layout drawing, circuit diagram and maintenance manual will be provided together with our products after sales, so that ensure customers have plenty of time to get prepared for installation.

 3. Wearing parts support
Kowloon has widely built extensive cooperation with wearing parts partner manufacturers more than 14years, has ability to continuously provide wearing parts and after-sale service to global market.

Fast answer and question:

1: Are You Trading Company or Factory?

 Kowloon Machinery is a Factory with 31 years experience in machinery manufacturing; we provide you completive Factory Price and good After-sale Service!

2: What about the Machine Installation?

For a single machine or a simple line, we provide you Foundation Drawing ,Installation Instruction Books or successful installed machinery picture or video; for large machines and complex production line, we could send our engineers to guide the installation if necessary


3: How About the Spare Parts?

We offer some free spare parts like belt, gasket etc small parts, for the BLADES, KNIVES, SHAFTS etc important wearing parts, we suggest customers buy some along with the machines to save the shipping cost, and we have enough spares parts in stock.

4: What Will We Do If We Have Problems in Machine Working After We Buy the Machine?

Kowloon has people special for after-sale service, if customers outside China have problems when machine working, just feel free to send us the picture or video to show us, we will give you solutions in 24hours.

5: Could We Visit Your Factory and Test the Machine?

We warmly welcome you to visit our factory anytime, and we are very glad to test our machine with your raw material.
