• Model NO.：5XZC-7.5DS
• Warranty：1 Year
• Customized：Available
• Function：Remove Dust, Light Impurity, Big and Small Impurit
• Delivery Date：25 Days
• Transport Package：Wooden Case or Container
• Specification：ISO9001-2008, TUV, SGS SONKAP
• Trademark：SYNMEC
• Origin：China
• HS Code：84371090
• Production Capacity：900 Set,Year

Basic Info.

Model NO. 5XZC-7.5DS Warranty 1 Year Customized Available Function Remove Dust, Light Impurity, Big and Small Impurit Delivery Date 25 Days Transport Package Wooden Case or Container Specification ISO9001-2008, TUV, SGS SONKAP Trademark SYNMEC Origin China HS Code 84371090 Production Capacity 900 Set/Year

Product Description

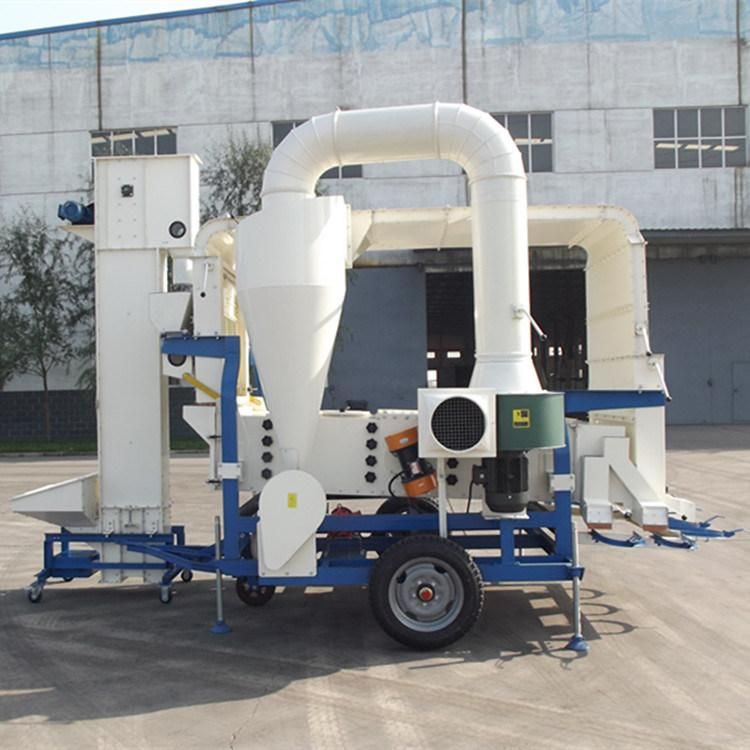

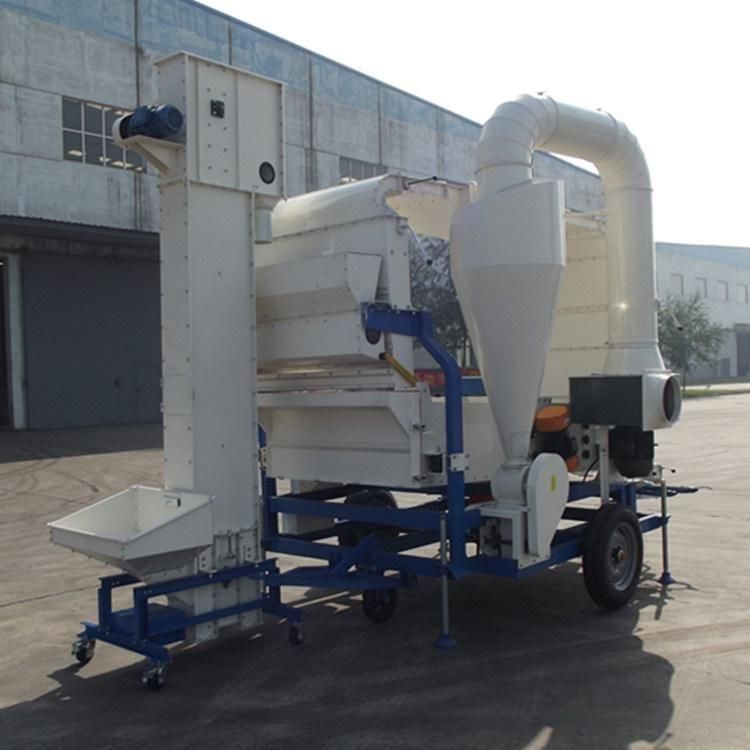

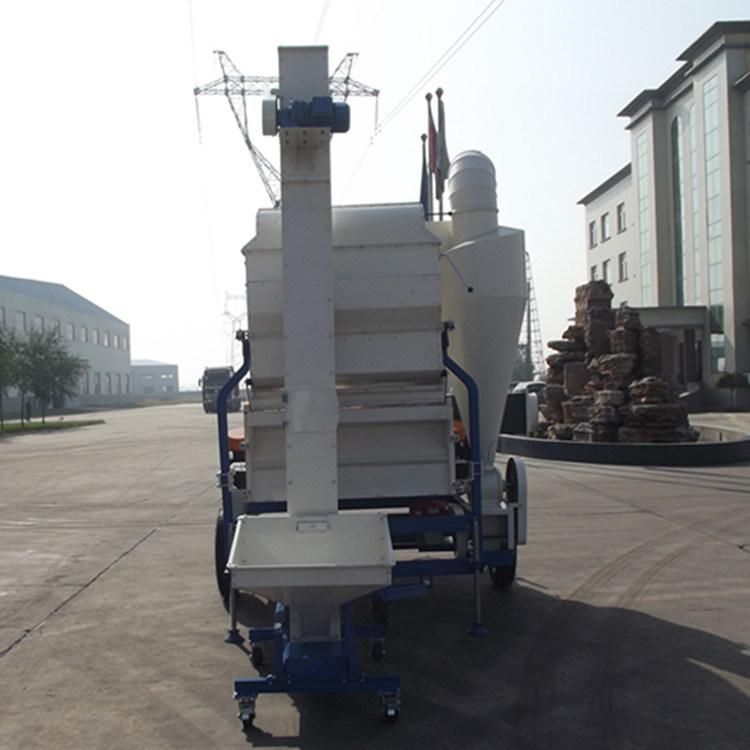

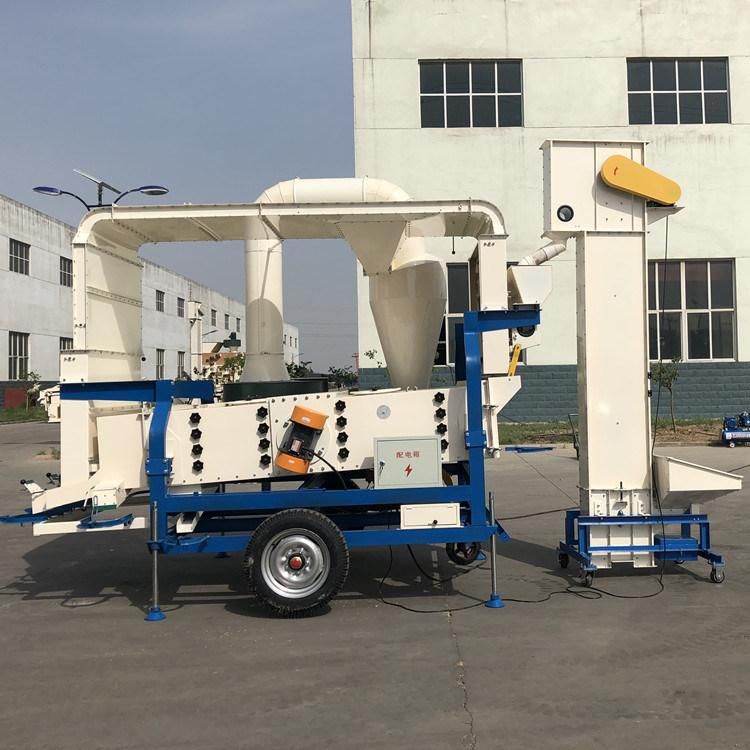

                             Crop Seed Cleaner and Grader (5XZF-7.5F)

Feature

The crop seed grain cleaner and grader (5XZF-7.5F) is professionally used for cleaning and grading seeds / grains.

Application

The crop seed grain cleaner and grader with a big capacity (5XZF-7.5F) is widely used for cleaning and grading agricultural products, such as grain seed, tree seed, grass seed, oilseed, commodity grain, etc.

Working principle

Light impurities can be sucked out by air cleaning system. After the left materials enter into vibratory sieving trunk, the large and small impurities will be removed and at the same time the seed will be separated into different levels.
The grading and cleaning functions of vibratory sieve based on the geometrical size characteristic of seed, and change the sieves you can processing all kinds of seeds.
The sieves has Rubber Balls inside for the self-cleaning.


Model	Capacity (KG/H)	Power(KW)	Dimension(MM)	Weight(KG)	Remark
5XZC-3B	3000	4.25	3970*1800*2750	1200
5XZC-5DH	5000	7.74	4970*1900*3100	1600
5XZC-7.5DS	7500	10.1	5600*2000*3200	1800
5XZC-15	10000	10.5	5600*2100*3200	1800
