• Model NO.：5XQS-5
• Function：Stone Removing
• Factory Location：Shijiazhuang City
• Productivity：100 Sets Per Month
• Warranty：1 Year
• Transport Package：Wooden Case or Container
• Specification：ISO9001: 2008, SGS, TUV, SONCAP
• Trademark：SYNMEC
• Origin：China
• HS Code：84371090
• Production Capacity：50sets,Month

Basic Info.

Model NO. 5XQS-5 Function Stone Removing Factory Location Shijiazhuang City Productivity 100 Sets Per Month Warranty 1 Year Transport Package Wooden Case or Container Specification ISO9001: 2008, SGS, TUV, SONCAP Trademark SYNMEC Origin China HS Code 84371090 Production Capacity 50sets/Month

Product Description

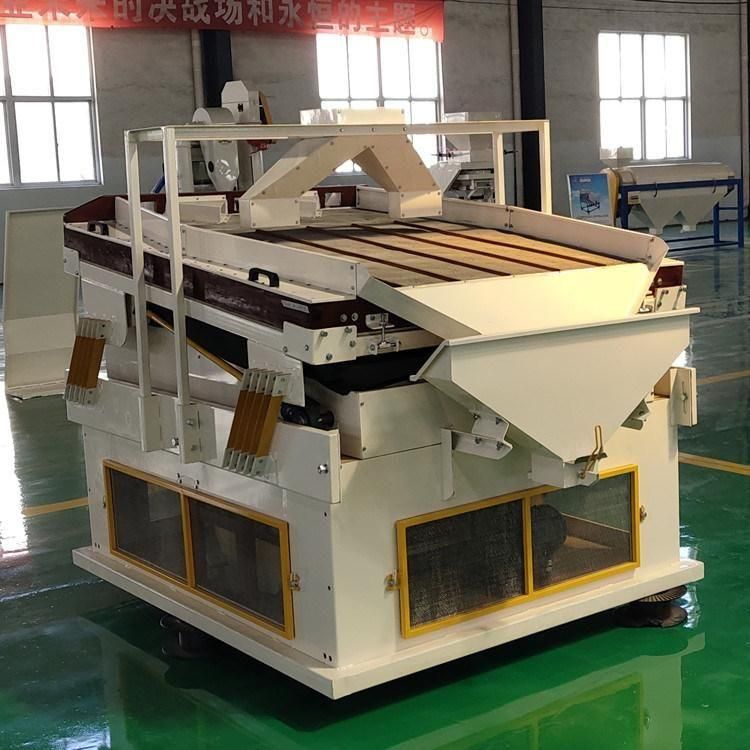

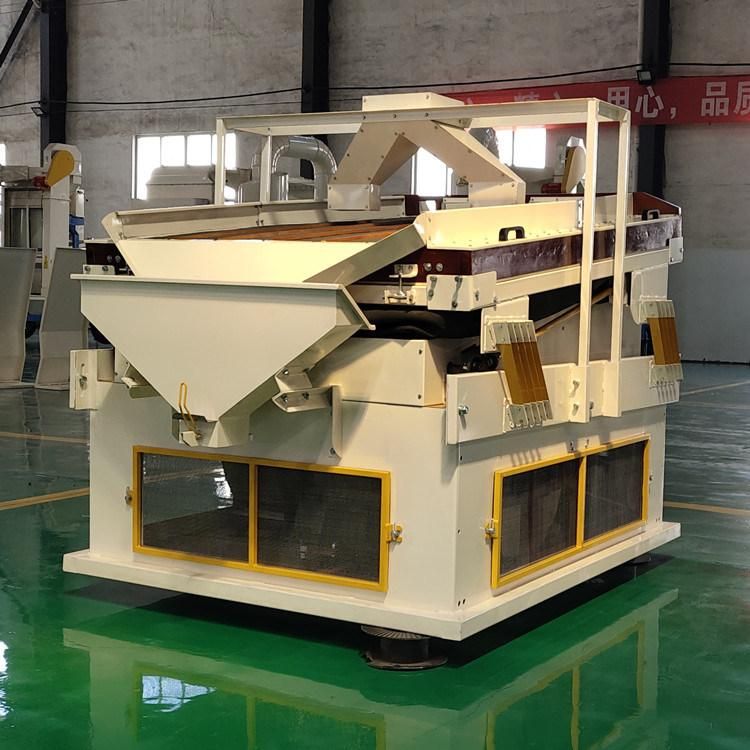

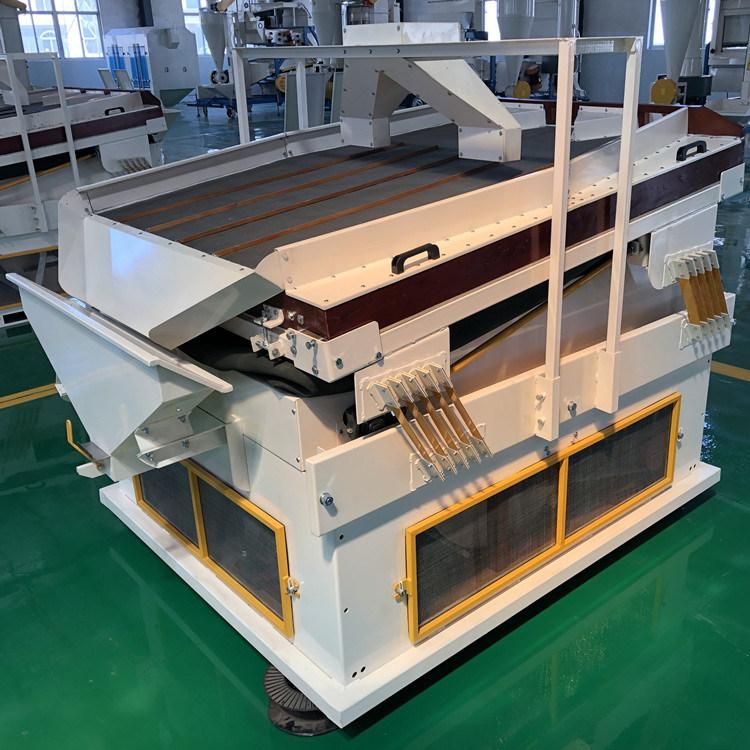

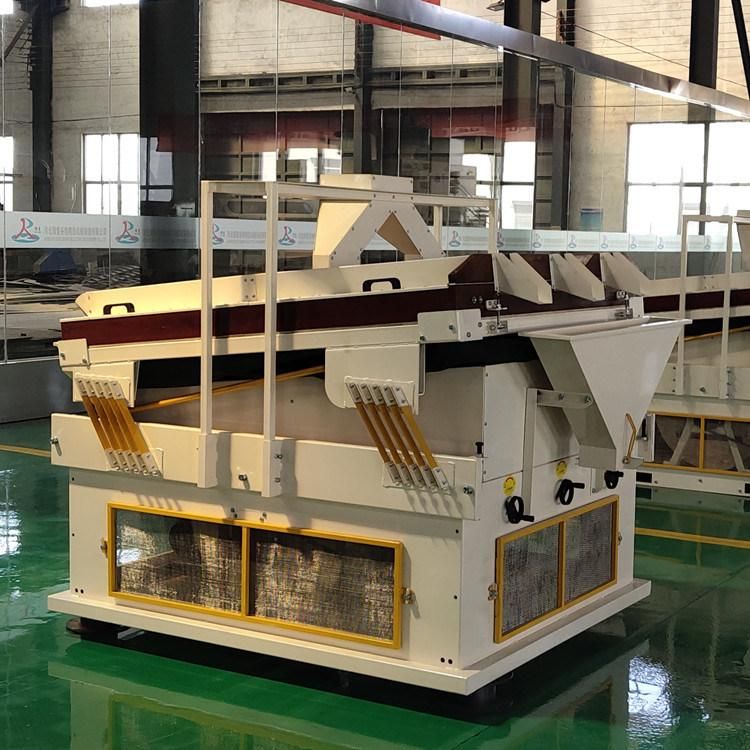

                                     Rice Peanut Paddy Cumin Seed Specific Gravity Destoner

Introduction

5XQS Paddy Gravity Destoner is used to remove heavy foreign impurity like stone, metallic and glass pieces etc on the principle of weight difference.

Features

5XQS Paddy Gravity Destoner is barotropic (blowing type) destoner, 5XQS Paddy Gravity Destoner is also called universal destoner, it can process all kinds of seeds and beans, and have very good destoning results for beans, sunflower seeds and sesame.

Working Principle

By the fluidization of seeds caused by deck vibratory with air blowing, heavy particles move to upper levels of the deck, light particles move to the lower level of the deck, and discharged from different outlets.



Model	Capacity (tone/hour)	Power (kw)	Weight (kg)	Dimension (L×W×H)mm	Remarks
5XQS-3	3	4.75	600	2200 ×1200 ×1600	Blowing type
5XQS-5	5	7	700	2500×1660×1600	Blowing type
QSX-85	5	3.55	400	1300×1500×3200	Suction type
TQSF-60	5	3.5	320	1450×876×1800	Suction type
TQSF-80	7.5	3.5	400	1450×1046×1800	Suction type
TQSF-100	10	3.5	480	1450×1246×1920	Suction type
