• Model NO.：5XWY-71B
• Application：Wheat, Oat, Barley, Paddy, etc
• Customized：Yes
• Input：3 Phase Electricity
• Delivery Date：25 Days
• Transport Package：Usually Export Standard Wooden Boxes
• Specification：SGS, ISO9001, TUV, SONCAP
• Trademark：SYNMEC
• Origin：Hebei, China
• HS Code：843710900
• Production Capacity：Capacity From 1t,H to 20t,H

Basic Info.

Model NO. 5XWY-71B Application Wheat, Oat, Barley, Paddy, etc Customized Yes Input 3 Phase Electricity Delivery Date 25 Days Transport Package Usually Export Standard Wooden Boxes Specification SGS, ISO9001, TUV, SONCAP Trademark SYNMEC Origin Hebei, China HS Code 843710900 Production Capacity Capacity From 1t/H to 20t/H

Product Description

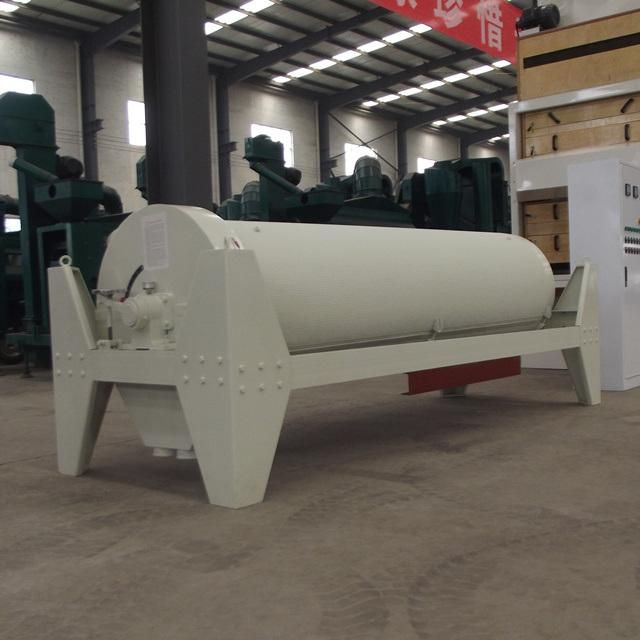

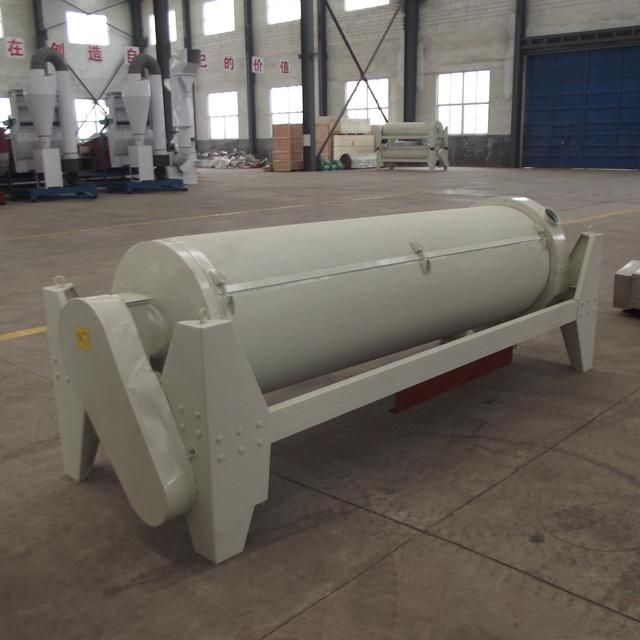

                                                                      Seed Length Grader

Application of Seed Length Grader:

Seed Length Grader can be used to clean and classify granule materials according their length. It can clean long and short mishmashes from wheat, barley, paddy, maize, rice etc; Also can has the function of classifying them.

Features of Seed Length Grader:

The cylinder has two connection ways: In series connection and parallel connection, they are chosen according to the capacity and the grading levels requested, which improve the flexibility and efficiency.
Discharging system adopt curve-path structure, Whole body adopts cabinet enclosed construction, having good tightness.
Main parameters can be regulated according to stepless control mode. So it can realize fine processing for different crops.

- This machine adopts modularized cylinder discreteness and uniform feeder to remove long and short offal from crop seeds according to the different shapes of the materials.
- The cylinder can be switched between two operating mode (series connection and parallel connection), effectively improving the flexibility and adaptability of the classifier with high efficiency.
- Main parameters can be regulated according to stepless control mode. So it can realize fine processing for different crops.
- Charging and discharging system adopt curve-path configuration, looking compact and nice.
- Processing of the intents adopt post forming technology, and the screen surface was implemented passivation disposal, greatly improving the cleaning quality and life time.
- Whole body adopts cabinet-like enclosed construction, having good tightness.

Data


Model	5XWY-71B
Cylinder Available	1-4 sets
Capacity	1-20 T/H
Connection type	parallel or series connection
Cylinder length	1.2-3m
Screen Size Available	3.2-11.5 mm
