• Model NO.：5XZC-3DS
• Power(Kw)：9.9kw
• Dimension (L*W*H)：3920*2430*3440mm
• Weight(Kg)：1700
• Function：Remove Light, Big and Small Impurity
• Application：Wheat, Maize, Paddy, Sesame, etc
• Input：3 Phase Electricity
• Color：White
• Customized：Available
• Transport Package：Mill′s Standard or Plywood Case
• Specification：SGS, TUV
• Trademark：SYNMEC
• Origin：China
• HS Code：84371090
• Production Capacity：80 Sets Per Month
• Package size per unit product：3.50cm * 2.00cm * 2.00cm
• Gross weight per unit product：1700.000kg

Basic Info.

Model NO. 5XZC-3DS Power(Kw) 9.9kw Dimension (L*W*H) 3920*2430*3440mm Weight(Kg) 1700 Function Remove Light, Big and Small Impurity Application Wheat, Maize, Paddy, Sesame, etc Input 3 Phase Electricity Color White Customized Available Transport Package Mill′s Standard or Plywood Case Specification SGS, TUV Trademark SYNMEC Origin China HS Code 84371090 Production Capacity 80 Sets Per Month

Packaging & Delivery

Package size per unit product 3.50cm * 2.00cm * 2.00cm Gross weight per unit product 1700.000kg

Product Description

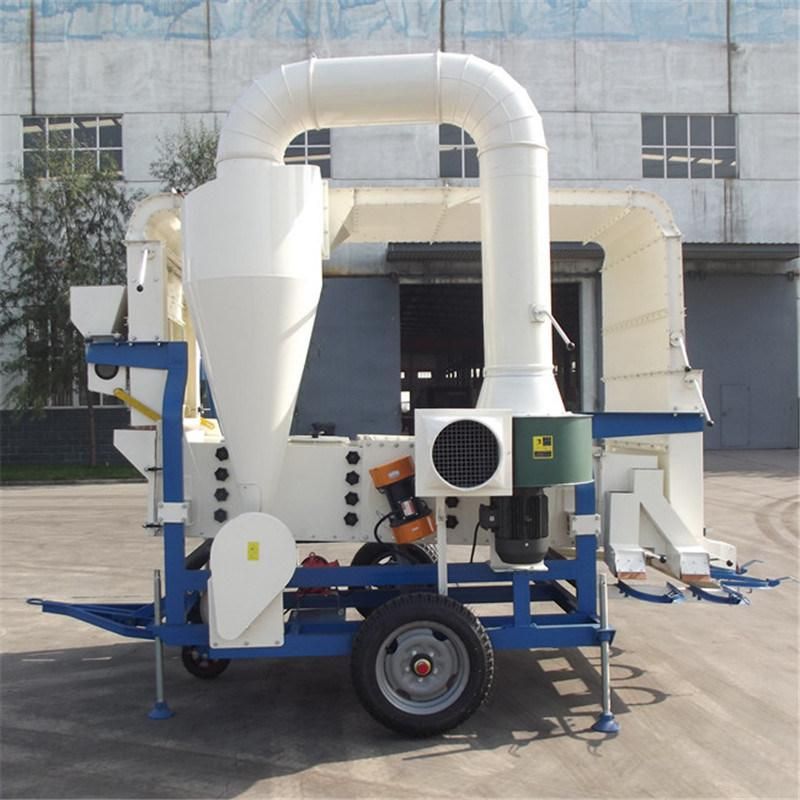

                                  Seed Cleaning Machine for Wheat Maize and Chickpea

Application of Multi-Grain Cleaning Machine:

Multi-Grain Cleaning Machine is used for cleaning and grading seeds, grains, cereals, and other granule products. It can be equipped to suit a variety of special jobs and purposes.

Working Process of Multi-Grain Cleaning Machine:

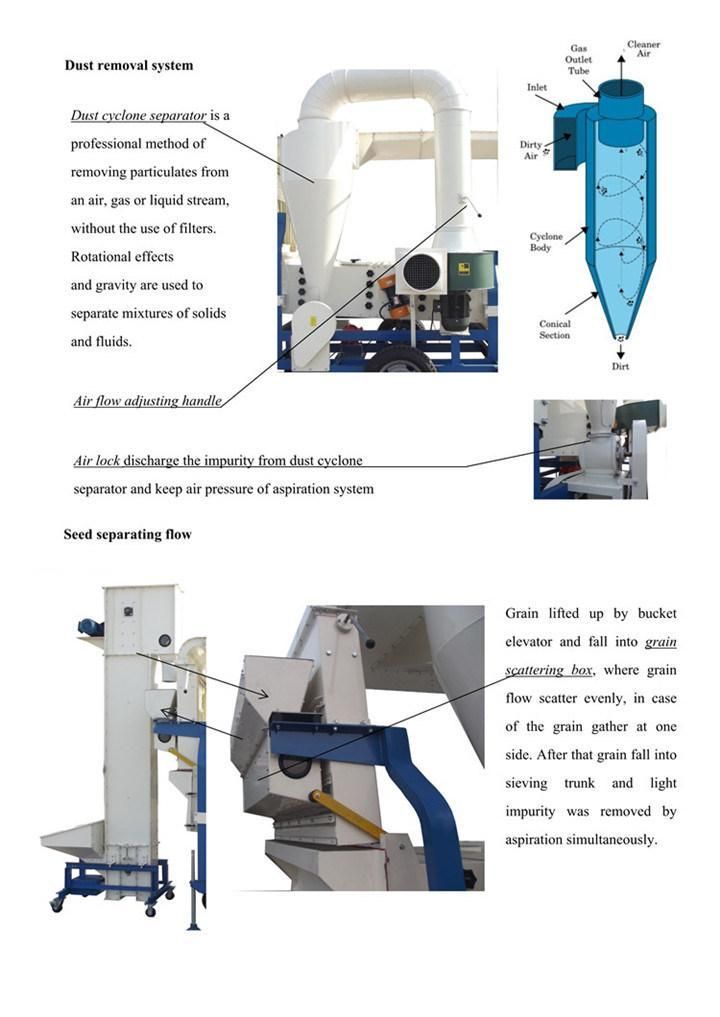

Dust and light impurity are removed by aspirator fan. Material falls on sieve layers and was separated by sieves according to width and thickness difference. All the oversize and undersize impurities were discharged from outlets. At the outlets of good grain has second time air clean system which provide best light impurity removing result and good for light materials.

Advantage of Multi-Grain Cleaning Machine:

* Double air clean systems
* Cyclone dust separator
* Movable model suitable for plant, field and remote area working
* Work independently mounted elevator
* Favorable price for promising market demand
* High efficiency and capacity

Specification of Multi- Grain Cleaning Machine
 Specification of 5XZC Seed Grain Cleaner:

Model No.	Capacity(T/H)	Power(KW)	Sieve Size(mm)	Weight
5XZC-5DH Seed Grain Cleaner	7.5	10.1	2000×1000	1600KG
5XZC-7.5F Seed Grain Cleaner	7.5	10.1	2400×1250	1800KG
5XZC-7.5DS Seed Grain Cleaner	7.5	9.9	2400x1250	1700KG
5XZC-15 Seed Grain Cleaner	10	10.5	2400×1500	1800KG
5XZC-25 Grain Cleaner	20	19.45	2400x1800	2900KG
