• Model NO.：5XZC-15
• Cleaning Rate：98%
• Application：All Type Grain Seeds
• Customized：Available
• on Site Service：Available
• Transport Package：Plywood Case
• Specification：ISO9001 TUV SGS
• Trademark：SYNMEC
• Origin：Hebei China
• HS Code：84371090
• Production Capacity：90 Set,M

Basic Info.

Model NO. 5XZC-15 Cleaning Rate 98% Application All Type Grain Seeds Customized Available on Site Service Available Transport Package Plywood Case Specification ISO9001 TUV SGS Trademark SYNMEC Origin Hebei China HS Code 84371090 Production Capacity 90 Set/M

Product Description

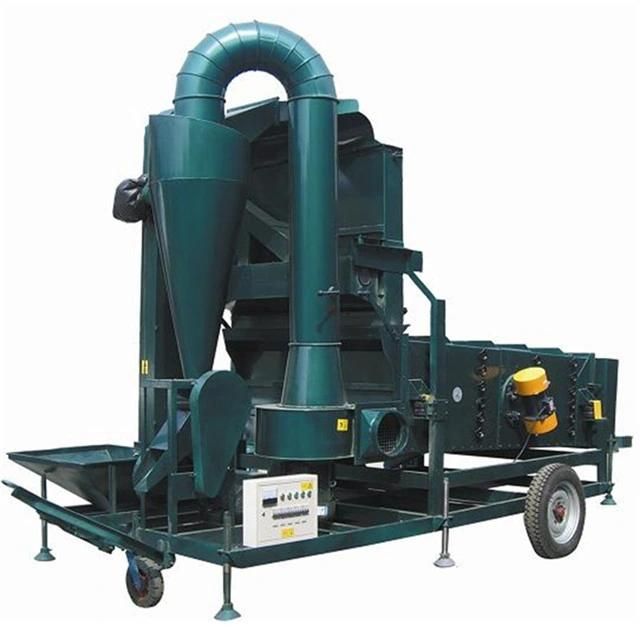

corn, wheat, soybean cleaning & grading machine
1. Range of use

Corn Seed Cleaner And Grader (5XZC-5DH) is used for cleaning and grading seeds, grains, cereals, and other granule products, such as wheat, paddy, rice, maize, millet, cumin, sunflower seed, soybeen, coffee bean, cocoa bean, oil seed, etc. Grain seed cleaner and grader can be equipped to suit a variety of special jobs and purposes.

2. Working principe

Dust and light impurity are removed by aspirator fan. Material falls on sieve layers and was separated by sieves according to width and thickness difference. All the oversize and undersize impurities were discharged from outlets.

3. Technical data

mode	Capacity(T/H)	Power(KW)	weight(MT)	Dimension(MM)	Remarks
5XZC-3A	3	8.5	1.3	3750*1950*2750	Installed Maize Thresher
5XZC-5A	5	12.74	1.6	4650*2120*3100	Installed Maize Thresher
5XZC-15A	10	20.93	2.2	5400*2450*3250	Installed Maize  Thresher
5XZC-3B	3	4.25	1.2	3750*1650*2750	Grain cleaniing and grading functions
5XZC-5B	5	6.99	1.5	4650*1850*3100	Grain cleaning and grading functions
5XZC-5DH	5	7.74	1.6	4650*1850*3100	Double Dust separading systems
5XZC-7.5F	7.5	10.1	1.8	5150*2160*3400	Double air cleaning ,stone removing and grading  all in one
5XZC-15	10	10.5	1.8	5600*2100*3200	Installed Wheat Huller and Cyclone Dust Separator
5XZC-25	20	19.45	2.9	5820*2650*3600	Double air screener, double Cyclone Dust separator
