• Model NO.：5XZC-7.5DS
• Power：10.1kw
• Characteristic：with Destone Plate
• Application：All Types of Grain Seeds
• Color：Green or White
• Name：Seed Cleaning Machine
• Function：Grain Cleaning Machine
• Usage：Grain Seed Cleaning Machine
• Product Name：Grain Seed Cleaner
• Transport Package：Wooden Case or Container
• Specification：ISO9001-2008, TUV, SGS SONKAP
• Trademark：SYNMEC
• Origin：Hebei, China
• HS Code：8437109000
• Production Capacity：50 Sets Per Month

Basic Info.

Model NO. 5XZC-7.5DS Power 10.1kw Characteristic with Destone Plate Application All Types of Grain Seeds Color Green or White Name Seed Cleaning Machine Function Grain Cleaning Machine Usage Grain Seed Cleaning Machine Product Name Grain Seed Cleaner Transport Package Wooden Case or Container Specification ISO9001-2008, TUV, SGS SONKAP Trademark SYNMEC Origin Hebei, China HS Code 8437109000 Production Capacity 50 Sets Per Month

Product Description

Wheat Barley Oat Grain Bean Seed Cleaning Machine
Introduction:
The Wheat Barley Oat Grain Bean Seed Cleaning Machine is professionally used for cleaning and grading seeds and grain. The Seed Cleaner is widely used for cleaning and grading agricultural products, such as grain seed, tree seed, grass seed, oilseed, commodity grain, etc. It has very high cleaning rate.

Working principle:
After fed into machine by bucket elevator, the dust and light impurity were removed by air aspiration system, and then materials enter to sieving trunk which has multi sieve layers, finally the material was graded to different level by size, at the same time all the oversize and undersize impurities were removed.

Features:
Customized various sieve's size and amount of sieve layer that make the seed cleaner & grader has wide range of applications and high grading efficiency.
Cyclone dust separator protect working environment.
Double as aspiration system with stone removing platform lead to higher cleaning result.

Parameter reference:

Model	5XZC-7.5DS	5XZC-7.5C	5XZF-7.5F
Dimension (L×W×H)	3920×2430×3440mm	5600×2100×3200 mm	5600×2100×3200 mm
Dimension of sieves	2400×1250mm	2400×1250 mm	2400×1250 mm
Capacity	7500kg/h	7500 kg/h	7500 kg/h
Weight	1770kg	2000 kg	1800 kg
Power	9.9KW	15.6 KW	15.6 KW
Remarks	Dust cyclone separator	Wheat Huller Cyclone dust separator	Stone removing Cyclone dust separatorDouble air cleaning

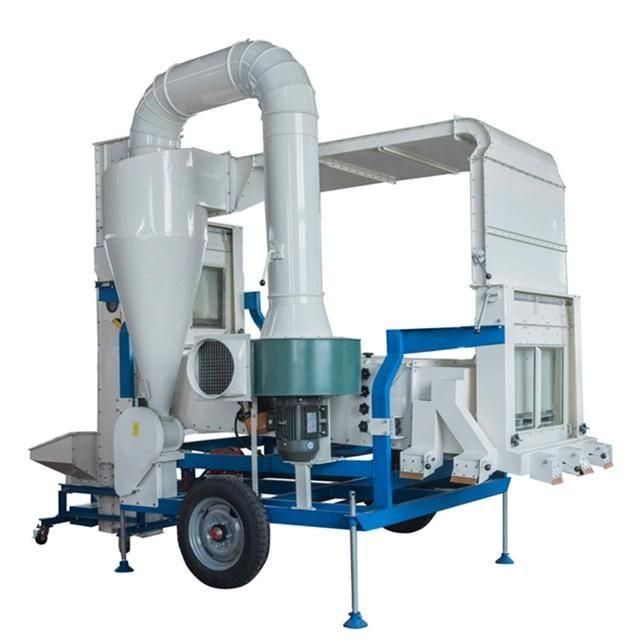

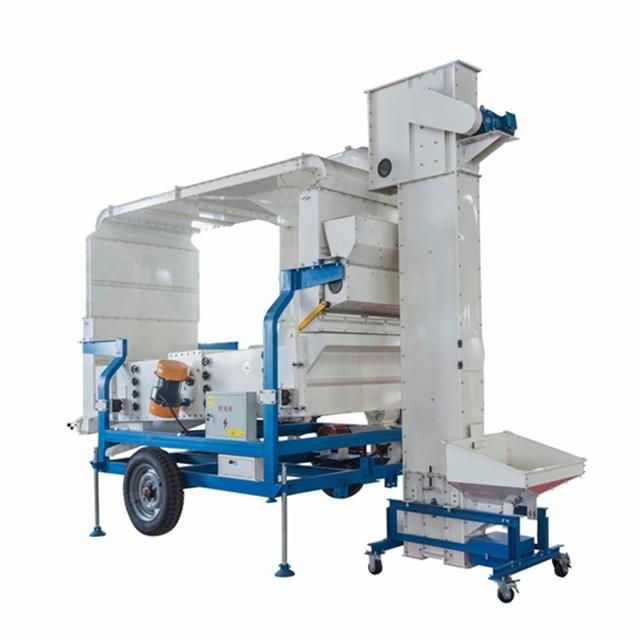

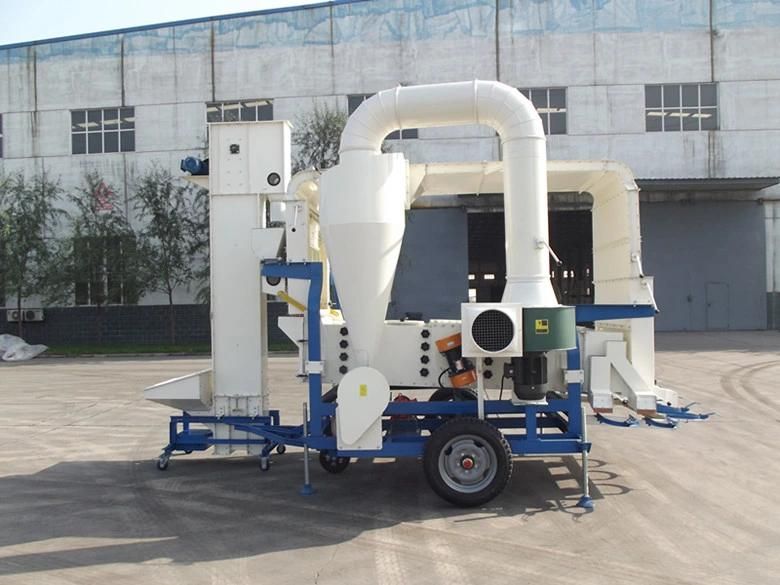

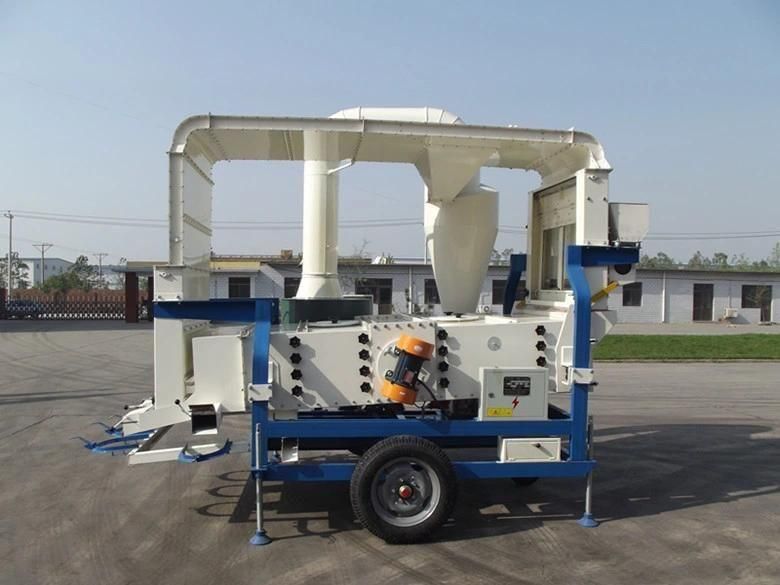

Photos:
