High Quality Poultry, Chicken House, Pig Manure Cleaner/Manure Scraper
Qingdao Farm Lyric Agri-tech Co., Ltd.- After-sales Service：Lifelong Maintenance
- Type：Manure Cleaning System
- Usage：Excrement Cleaning Machine
- Application：Chickens, Pigs
- Power Source：Electric
- Heating and Ventilation Equipment Type：Poultry Farming Equipment
Base Info
- Model NO.：Six slot chain host
- Epidemic Prevention Equipment：Mobile Vaccination Car
- Blade Type：Straight Teeth
- Computerized：Computerized
- Certification：GMP, ISO9001:2008, CE
- Condition：New
- Warranty：3year
- Using for：Poultry Farming
- Power：2.2kw, 3kw
- Working Speed：9-10m,Min
- Rope Material：High Strength Chemical Fiber
- Rope Diameter：16mm, 18mm, 20mm etc.
- Width of Scraper：Customizable
- Maximum Drive Distance：150m
- Drive Scraper Quantity：2 or 3
- Corner Material：Hot Galvanized Steel Sheet
- Scraper：Hot Galvanized Steel Sheet or 304
- Transport Package：Carton Box Package by Sea
- Specification：custom
- Trademark：FARM LYRIC
- Origin：China Qingdao
- HS Code：84369100
- Production Capacity：1000PCS,Weeks
Description
2. The scraper is molded by a high-accuracy numerical control machine, never deformation.
3. Special thickening scraper, ensuring long life of the machine
4. Special transmission chains abrasion resistance, corrosion-resistant, long-time life
5. Easy to operate, install and maintain
6. Removal the manure cleanly and efficiently

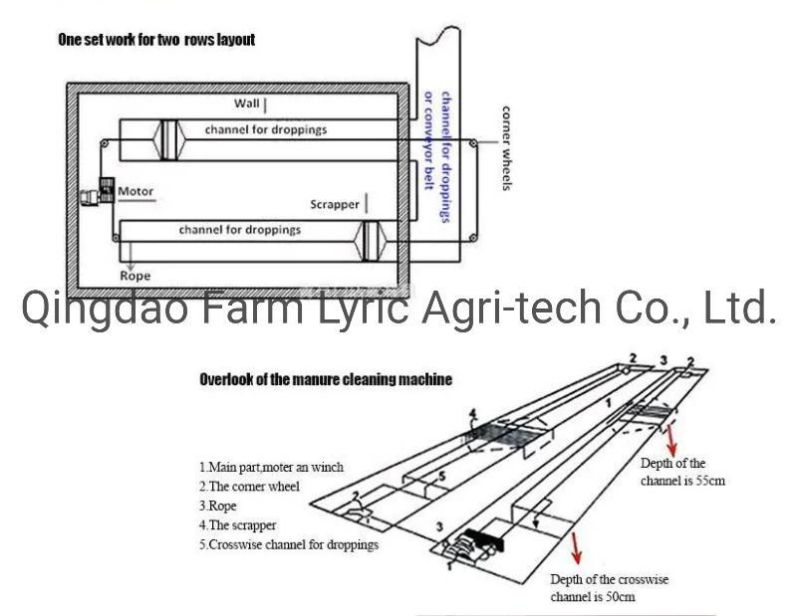

Layout analysis chart

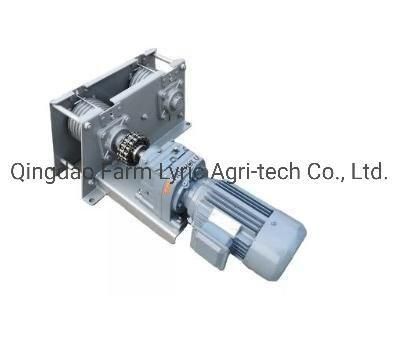

Control Box Electric Motor:1. Using The Advanced international cycloid reducer is to ensure the
output drive radio of rationality;
2. Both motor and reducer has the advantage of Small Volume, Simple
Operation;
3. 1.5 KW & 3 KW, 220 V/ 380V Can be choose;

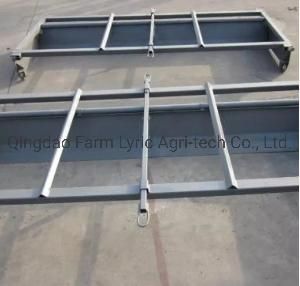

Transmission ChianSpecial Transmission chain is high wear resistance, corrosion resistance, and long service life.Scraper
1. Special thick scraper can make sure the long life of the dung
cleaning machine.
2. Scraper is made by high-precision CNC production molding,
not deformation.
3. The guild wheels of the scraper ensure the system runs smoothly.
Round Corner PulleyHigh-Quality Corner Pulley Make the Scraper Working Smoothly.

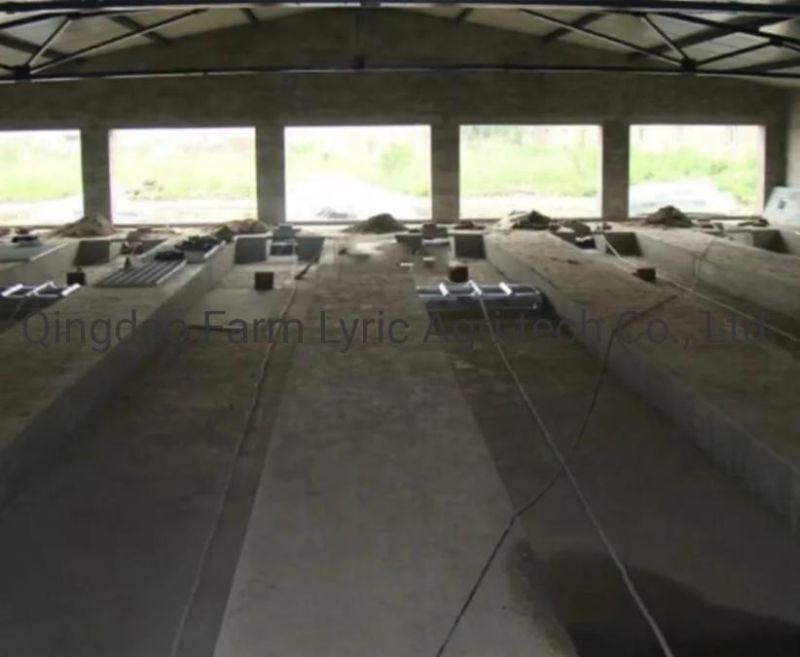

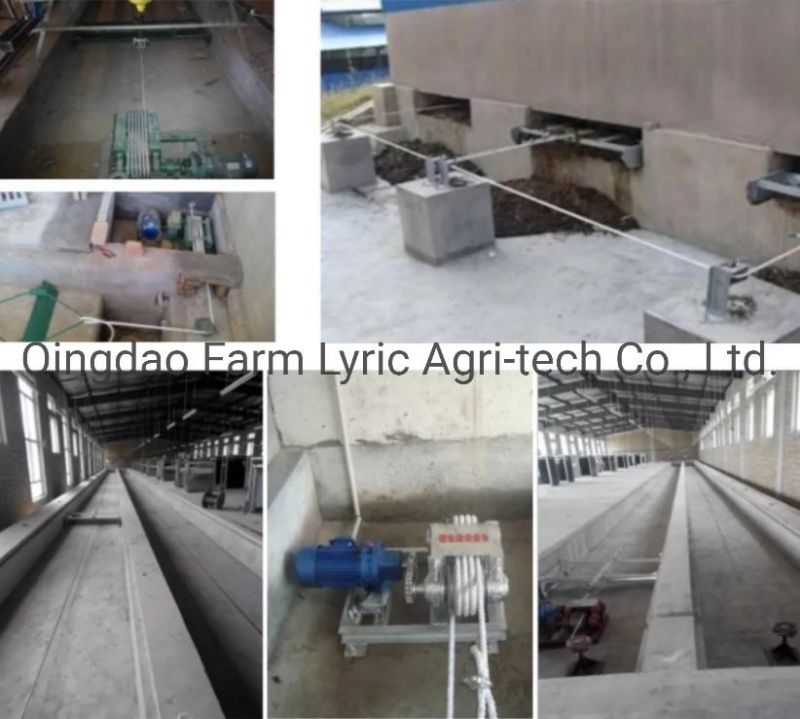

PROJECT SHOWS:
