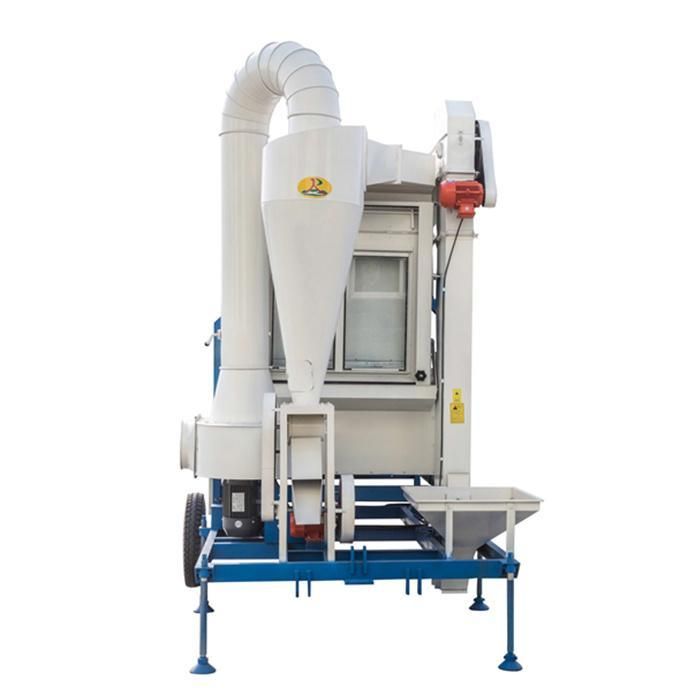

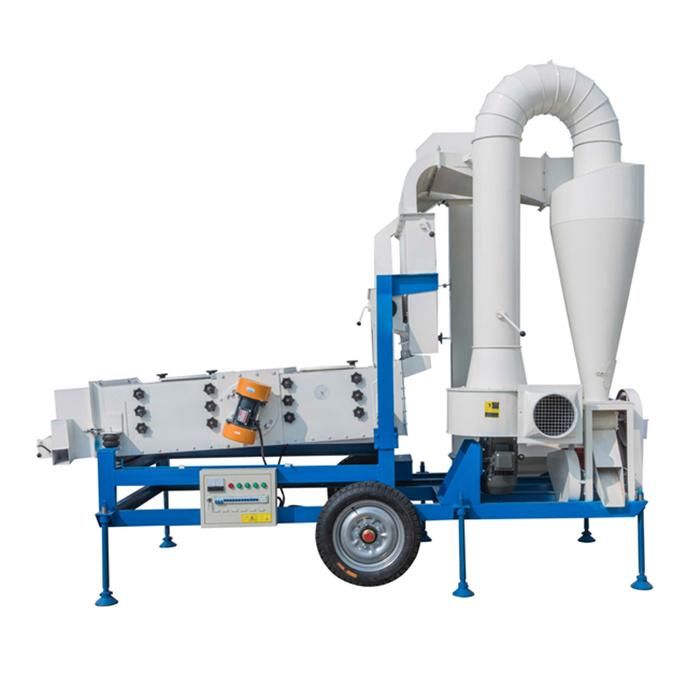

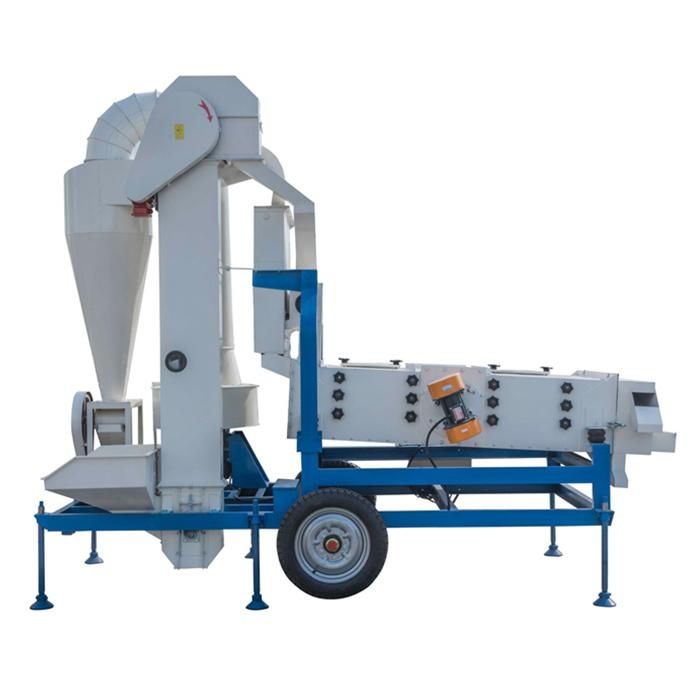

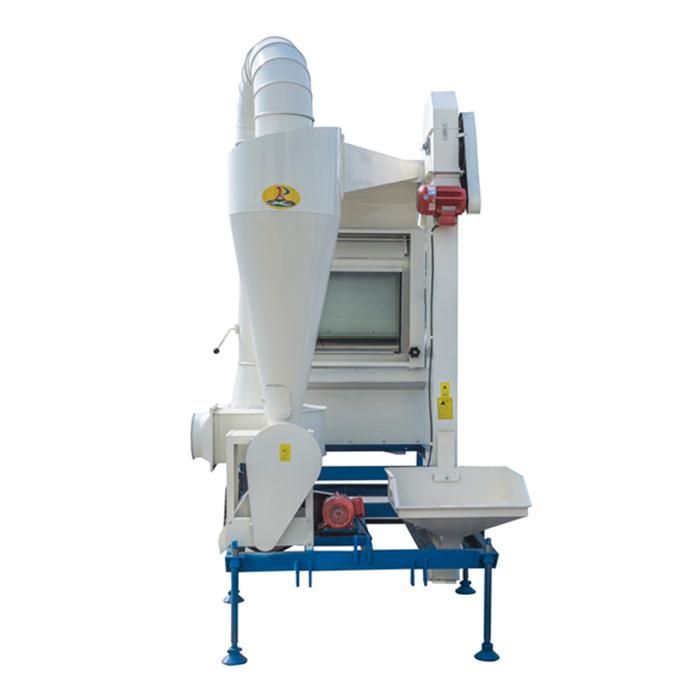

Corn Seed Cleaning Equipment and Grading Equipment Machine
Hebei Ruixue Grain Selecting Machinery Company Limited- Model：5xzc-5dh
- Capacity (T/H)：5
- Power(Kw)：7.74
- Weight(T)：1.6
- Advantage：Installed Cyclone Dust Separater
- Transport Package：Plywood Case
Base Info
- Model NO.：5XZC-5DH
- Specification：ISO9001 TUV SGS
- Trademark：SYNMEC
- Origin：Hebei China
- HS Code：84371090
- Production Capacity：90 Set,M
Description
Basic Info.
Model NO. 5XZC-5DH Specification ISO9001 TUV SGS Trademark SYNMEC Origin Hebei China HS Code 84371090 Production Capacity 90 Set/MProduct Description
Corn Seed Cleaning Equipment and Grading Equipment Machine (high capacity)1. Range of use for Corn Seed Cleaning Equipment and Grading Equipment Machine(high capacity)
Corn Seed Cleaner And Grader (5XZC-5DH) is used for cleaning and grading seeds, grains, cereals, and other granule products, such as wheat, paddy, rice, maize, millet, cumin, sunflower seed, soybeen, coffee bean, cocoa bean, oil seed, etc. Grain seed cleaner and grader can be equipped to suit a variety of special jobs and purposes.
2. Working principe of Corn Seed Cleaning Equipment and Grading Equipment Machine(high capacity)
Dust and light impurity are removed by aspirator fan. Material falls on sieve layers and was separated by sieves according to width and thickness difference. All the oversize and undersize impurities were discharged from outlets.
3. Corn Seed Cleaning Equipment and Grading Equipment Machine(high capacity)
| mode | Capacity(T/H) | Power(KW) | weight(MT) | Dimension(MM) | Remarks |
| 5XZC-3A | 3 | 8.5 | 1.3 | 3750*1950*2750 | Installed Maize Thresher |
| 5XZC-5A | 5 | 12.74 | 1.6 | 4650*2120*3100 | Installed Maize Thresher |
| 5XZC-15A | 10 | 20.93 | 2.2 | 5400*2450*3250 | Installed Maize Thresher |
| 5XZC-3B | 3 | 4.25 | 1.2 | 3750*1650*2750 | Grain cleaniing and grading functions |
| 5XZC-5B | 5 | 6.99 | 1.5 | 4650*1850*3100 | Grain cleaning and grading functions |
| 5XZC-5DSH | 5 | 6.99 | 1.6 | 4650*1850*3100 | Double Dust separading systems |
| 5XZC-25 | 20 | 20.95 | 2.9 | 5820*2650*3600 | Double air cleaning system |
| 5XZC-7.5F | 7.5 | 10.1 | 1.8 | 5150*2160*3400 | Double air cleaning ,stone removing and grading all in one |
| 5XZC-3C | 3 | 7.25 | 1.3 | 3750*1650*2750 | Installed Wheat Huller and Cyclone Dust Separator |
| 5XZC-5C | 5 | 10.99 | 1.6 | 4650*1850*3100 | Installed Wheat Huller and Cyclone Dust separator |
