• Model NO.：U16L-4
• Power Supply：Electric
• Technics：Assembly
• Material：Aviation Carbon Fiber and Aviation Aluminum
• Type：Sprayer Drone
• Sprayer Type：Pump
• Usage：Agriculture
• Applicable Industry：Farms,Home Use,Epidemic Prevention
• Feature：Anti-Fall
• Production Material：Aviation Carbon Fiber and Aviation Aluminum
• Production Folding Size：1070mm*1070mm*370mm
• Max Pesticide Load：18kg
• Aircraft Medicine Box Capacity：16L
• Flight Radius：Less Than 5000m
• Max Takeoff Weight：34kg
• Aircraft Weight：11kg
• Flight Attitude：Less Than 30m
• Flight Duration：20-25minutes
• Condition：New
• Warranty Time：12 Months
• Transport Package：Professional Package Box
• Specification：1 CBM
• Trademark：UNID
• Origin：China
• HS Code：8802200090
• Production Capacity：10000 Unit

Basic Info.

Model NO. U16L-4 Power Supply Electric Technics Assembly Material Aviation Carbon Fiber and Aviation Aluminum Type Sprayer Drone Sprayer Type Pump Usage Agriculture Applicable Industry Farms,Home Use,Epidemic Prevention Feature Anti-Fall Production Material Aviation Carbon Fiber and Aviation Aluminum Production Folding Size 1070mm*1070mm*370mm Max Pesticide Load 18kg Aircraft Medicine Box Capacity 16L Flight Radius Less Than 5000m Max Takeoff Weight 34kg Aircraft Weight 11kg Flight Attitude Less Than 30m Flight Duration 20-25minutes Condition New Warranty Time 12 Months Transport Package Professional Package Box Specification 1 CBM Trademark UNID Origin China HS Code 8802200090 Production Capacity 10000 Unit

Product Description

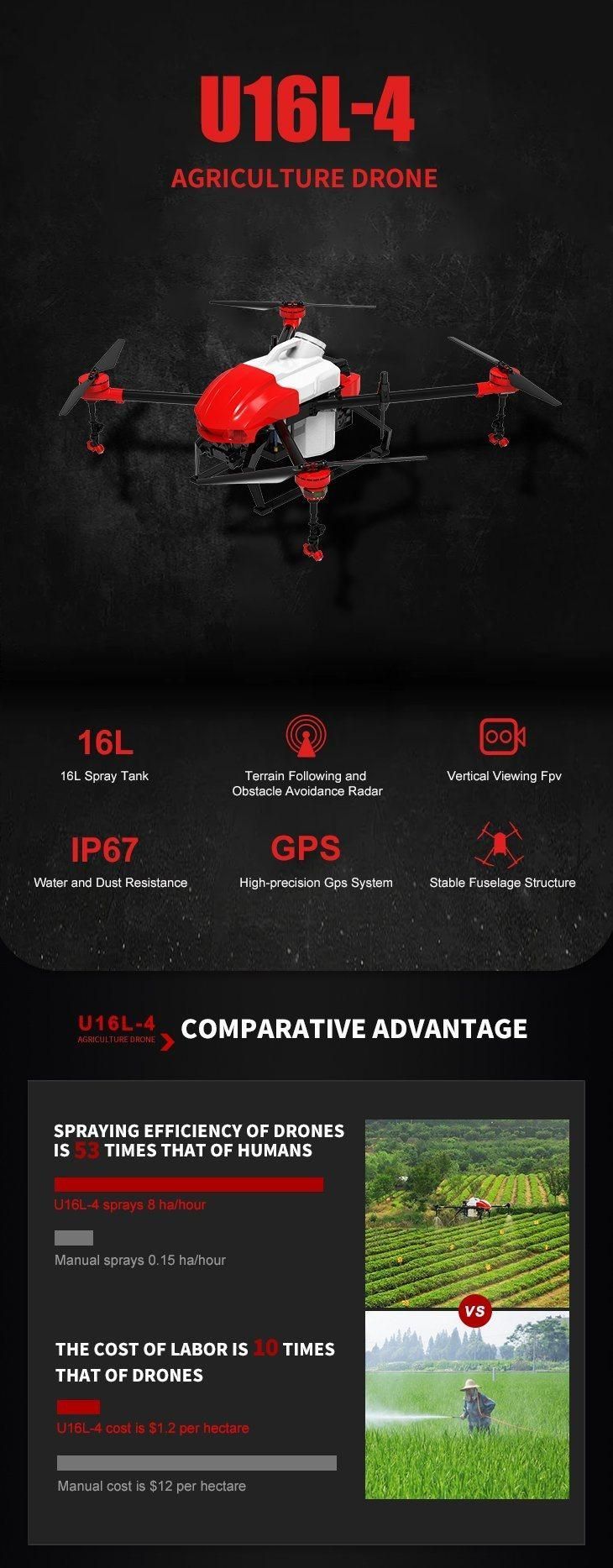

Cheap Price Folding Arm Movable Farm Precision Agricultural Crop Payload Agricultural Sprayer Drone with Battery and Tank
- OEM  & ODM Service - Supported by its outstanding flight performance, the U16L-4 spray tank can carry up to 16 L, and the spray width has increased to 8 m. The spraying system has 4 delivery pumps and 8 sprinklers with a maximum spray rate of 8 L/min. The U16L-4 can spray 6 hectares per hour. The spraying system also has an all-new electromagnetic flow meter, providing higher precision and stability than conventional flow meters.

BROUAV adopts industrial grade hardware structure and sensors, available for more communication modes.

Model	U16L-4
Product Material	Aviation carbon fiber + aviation aluminum
Airframe Dimensions(Incl. propellers)	1840mm*1840mm*530mm
Airframe Dimensions(folded)	740mm*370mm*530mm
Transport Dimensions	900*450*600mm
Max Takeoff Weight	34KG
Aircraft Weight	12.4KG
Maximum Capacity(spraying system)	16L
Flight Altitude	≤20 meters
Flight Time (Unloaded)	20~25 minutes
Flight Time (Full Loaded)	10~13 minutes
Flight Speed	1-10 m / sec
Spray Width	4-8 meters
Spray Flow	3-8L/min double pump adjustable
Nozzle Type	Imported high pressure anti-floating atomizing nozzle
Droplet Size	60~90μm
Flight Controller	Industrial Version GPS and Controller
Navigation Method	GPS/GNSS RTK
Operating Efficiency	≥7(ha/hr)
Safe Takeoff and Landing Wind Speed	≤8 m/s
Motor speed	5000rpm
Battery Voltage	50.4V
Battery Capacity	16000mAh*1( 12S Intelligent Lithum Battery)
