Rubber Track 575*93*58 Fits for Combine Harvester Kubota DC105X

Shanghai Puyi Industrial Co., Ltd.
  • Type:Agricultural Machines, Construction Machines
  • Usage:Harvester
  • Material:Rubber and Steel
  • Power Source:Gasoline
  • Weight:228kg
  • After-sales Service:Free Replacement

Base Info

  • Model NO.:575*93*58
  • Warranty:12 Months Under Normal Use
  • Width:575mm
  • Pitch:93mm
  • Links:58(Can Be Customized)
  • Overall Length:5394mm
  • Apply to:Harvester DC105
  • Production Time:20-30 Days
  • MOQ:2 PCS
  • Transport Package:Wooden Pallet
  • Specification:575*93*58
  • Trademark:No Marks or As Buyer′s Requests
  • Origin:Shanghai, China
  • HS Code:8431499900
  • Production Capacity:5000PCS,Month

Description

Basic Info.

Model NO. 575*93*58 Warranty 12 Months Under Normal Use Width 575mm Pitch 93mm Links 58(Can Be Customized) Overall Length 5394mm Apply to Harvester DC105 Production Time 20-30 Days MOQ 2 PCS Transport Package Wooden Pallet Specification 575*93*58 Trademark No Marks or As Buyer′s Requests Origin Shanghai, China HS Code 8431499900 Production Capacity 5000PCS/Month

Product Description

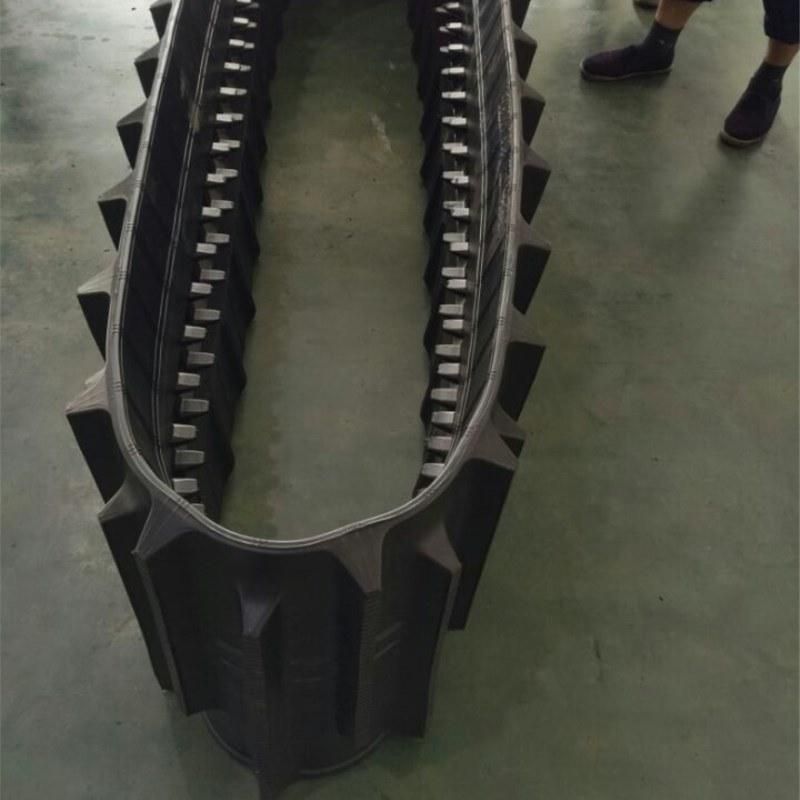

Rubber Track 575*93*58 fits for Combine Harvester Kubota DC105X

Applicable machines
Harvester, and Agricultural Machine
Material Rubber and steel
Specification575*93*58
Installation position Installed on the harvester (Harvester Kubota DC105X)

Rubber Track 575*93*58 Fits for Combine Harvester Kubota DC105XRubber Track 575*93*58 Fits for Combine Harvester Kubota DC105X
The characteristics of rubber tracks

1. Rubber tracks cause less damage to roads than steel tracks, and less rutting on soft

ground than steel tracks

2. A benefit to equipment operating in congested areas, rubber tracks make less noise than

steel tracks

3. Rubber tracks permit machines to travel at a higher speed than steel tracks

4. Rubber tracks insulated machine and operator from vibraion, exteding the service life of

machine and decreasing operator's fatigue

5. The ground pressure of rubbr tracks equipped machinery can be fairly low, about 0.14-2.30

kg/m2, a major reason for its use on wet and soft terrain.

6. The added traction of rubber tracked vehicles permits them to pull twice the load of wheeled

vehicles of the same weight.

7. Rubber tracks' pulling performance being twice that of wheels, it permits the lighter vehicles

equip with rubber track to do the same pulling work than that of wheeled vehicles.


The notices of using rubber tracks :

1. Adjust the tension of the rubber crawler so that the height, the variable range is 10-20mm

when the machine is lifted. Readjust when the tension decreases. (Be careful because the

rubber crawler may come off if the tension is too low).

2. Avoid projection from the frame around the rubber crawler, especially on its inner

circumference. (Rubber crawlers are easily deformed; If it comes into contact with the frame,

an accident such the rubber being cut can occur).

3. Avoid sharp projections when traveling.

4. Avoid turning too fast on concrete roads with a high coefficient of frction because this can

cause accidents such as cutting the rubber.

5. Be careful that no oil, etc adheres to the rubber track. If it does, wipe it off immediately.

6. When storing for long periods, keep indoors, away from direct sunshine and rain.

7. Replace as soon as possible when abrasion of sprockets is observed

We also have other kinds of and sizes of rubber tracks, if you have interest in it, do not hesitate

to send me a message and I will be very glad to be at your service.

Looking forward to receiving your enquiry.

Parameters
Width*Pitch length(mm)Number of LinksWidth*Pitch length(mm)Number of LinksWidth*Pitch length(mm)Number of Links
130*7228-53300*52.5K72-84400*72.5KW68-92
150*6028-49300*52.5KW72-92400*7468-76
150*7229-40KB300*52.572-92400*75.5K74
170*6030-40KB300*52.5N72-98B400*8652-55
180*6030-40JD300*52.5N72-98400*9042-56
180*7230-58300*53K80-84Y400*14236-37
180*72K30-37300*5570-86400*14436-41
B180*72K34-51300*55.5K76-82Y400*144K36-41
B180*72A30-51300*71K72-55420*10050-58
H180*7230-50300*109N25-42450*7176-88
190*6030-40K300*10937-41DW450*7176-88
190*7234-39300*109WK35-42450*73.576-84
200*7234-47B300*8478-52450*7680-84
200-*72K37-47T300*86K48-52450*81N72-80
230*4860-84320*52.572-98450*81W72-78
230*48K60-84B320*52.568-98KB450*81.572-80
230*7242-56320*5470-84K450*83.572-74
230*72K42-56B320*8649-52B450*8453-56
230*9630-48320*9052-56B450*8652-55
230*10130-36320*10038-54450*9058-76
250*47K84320*100W37-65KU450*9058-76
250*48.5K80-88Y320*106K39-43T450*100K48-65
250*52.5K72-78350*52.570-92K450*16338
250*7247-57350*54.5K80-86485*92W74
B250*7234-60B350*55K77-98500*9076-82
B250*72B42-58350*5680-86500-9272-84
E250*7237-58350*75.5K74500*92W78-84
250*9635-38350*9042-56500*10071
250*10935-38350*10046-60K500*14635
260*55.5K74-80350*10840-46600*10076-80
Y260*9638-41350*10941-44600*12556-64
260*10935-39Y370*107K39-41700*10080-98
280*7245-64400*72.5N70-80750*15066
Y280*106K35-42400*72.5W68-92800*12580
300*52.5N72-98Y400*72.5K72-74
300*52.5W72-92KB400*72.5K68-76

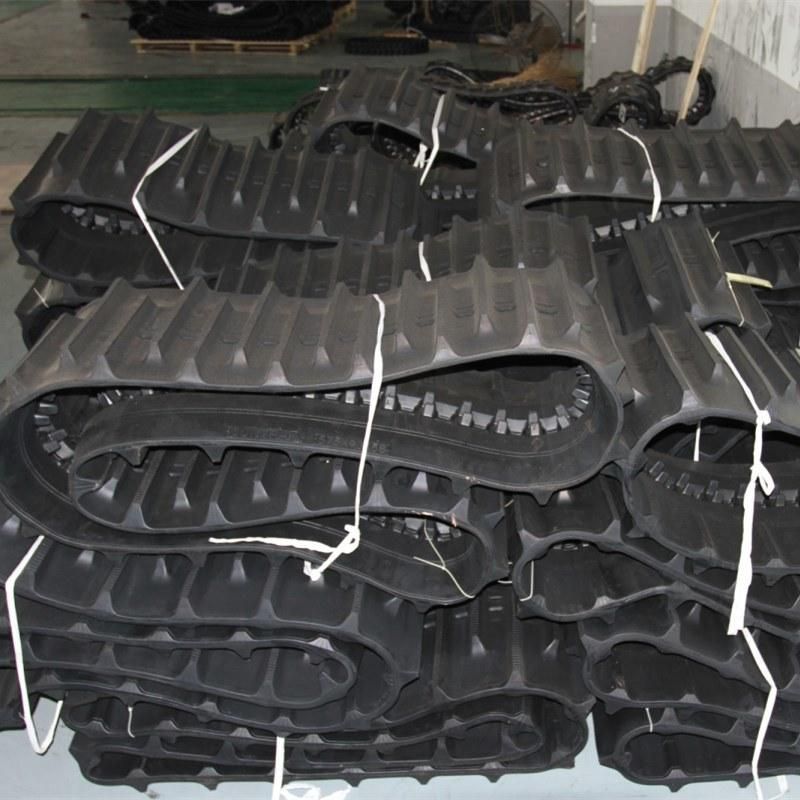

Warehouse:
