• Model NO.：SZLH400
• Pellet Mill Type：Ring Die Pelleter
• Bulking Machine Type：Twin Screw Bulking Machine
• Expanding Method：Wet Expansion
• Condition：New
• Applicable Materials Shape：Powder
• Warranty：1 Year
• Capacity(T/H)：3-20
• Pellet Size(mm)：2-18
• Brand Name：Fdsp
• Pellet Size：1.5-18mm
• Transport Package：Pallet
• Specification：CE, ISO
• Trademark：Liangyou
• Origin：Jiangsu China
• HS Code：8436100000
• Production Capacity：3-12,3-14t,H

Basic Info.

Model NO. SZLH400 Pellet Mill Type Ring Die Pelleter Bulking Machine Type Twin Screw Bulking Machine Expanding Method Wet Expansion Condition New Applicable Materials Shape Powder Warranty 1 Year Capacity(T/H) 3-20 Pellet Size(mm) 2-18 Brand Name Fdsp Pellet Size 1.5-18mm Transport Package Pallet Specification CE, ISO Trademark Liangyou Origin Jiangsu China HS Code 8436100000 Production Capacity 3-12/3-14t/H

Product Description

We supply poultry feed pellet mill, livestock feed pellet mill, ruminant feed pellet machine, pig granulate feed machine, chicken fodder pellet mill, cow/ cattle feed granulator, horse fodder machine, feedstuff pellet mill, pellets making machine, bird feed pelletizer and so on.

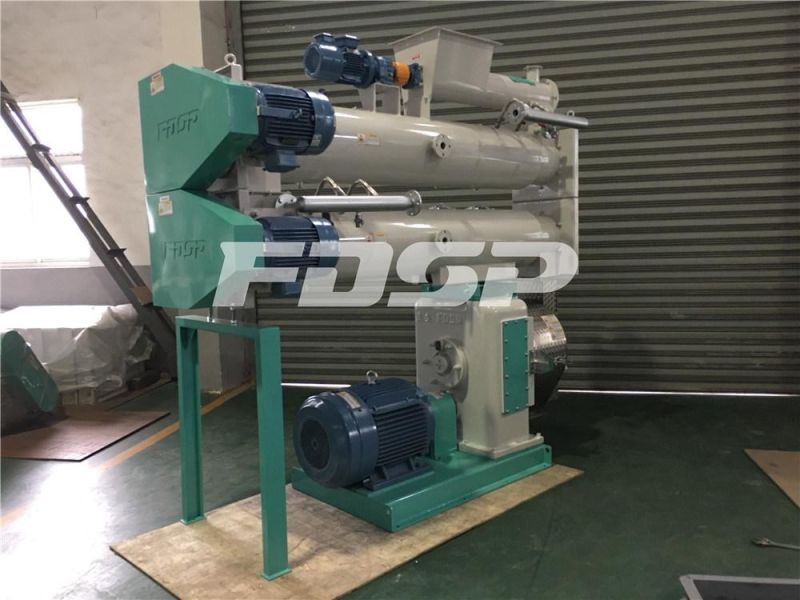

 8tph Poultry Pellet Feed Milling Equipment feed mill
 Features
1. Gear directly-connecting driving is adopted for high efficiency;
2. Full stainless steel feeder; Variable pitch anti-bridging structure; Imported FC control;

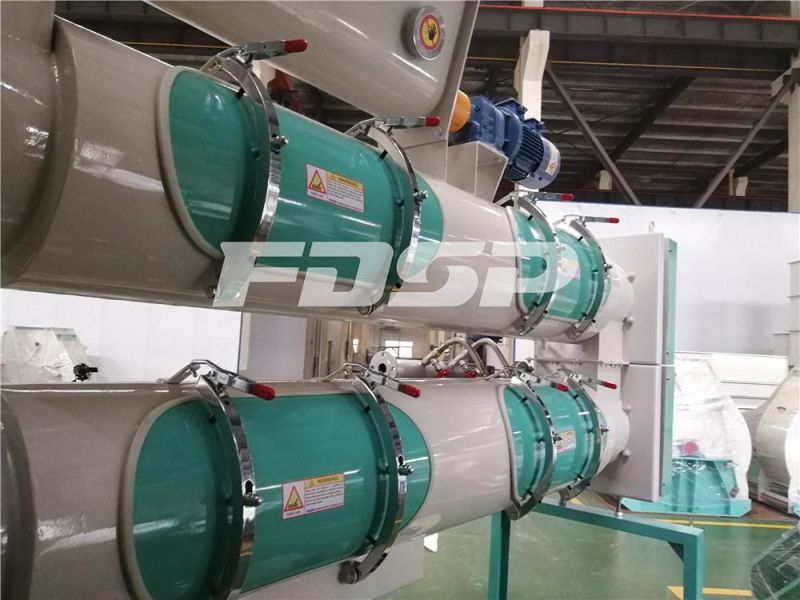

3. All stainless steel conditioner with axial steam spraying extends the conditioning and cooking time;
4. Main gear and pinion shaft adopt the carbonizing quenching with high accuracy; Smooth driving, low noise and long service life;
5. Gearbox and driving holes' accuracy are guaranteed by specialized casting supplier and NCC;
6. The bearing and oil seal in the main drive are imported, and especially lubrication oil return system is available to ensure reliable bearing lubrication;
7.2 PC quick disassembling type precisely-cast die clamp is adopted to connect the die and quill flange, resulting in convenient and quick disassembling of die;
8. Pellet chamber door and feed chute are fully made of stainless steel with high anti-corrosion ability and long service life;
9. The connection between motor and gearbox adopts new type S-shape spring coupling with more convenient disassembling and assembling and more reliable use.

Model	Output (t/h)	Main Power(kw)	Power of Conditioner (kw)	Power of Feeder (kw)	ID of Die (mm)	Pellet Size (mm)
SZLH400	3-12	75/90	5.5	1.5	400	2-18
